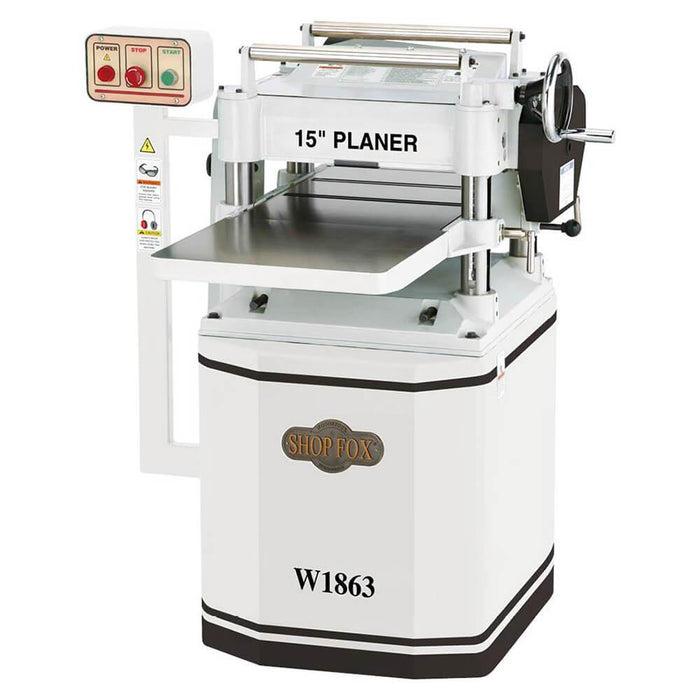

Shop Fox W1863 12-Inch x 15-Inch 3-Hp Spiral Cutterhead Wood Planer

Out of Stock
- +

Condition: New
SKU: W1863
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

  • Spiral cutterhead with triple V-belt drive
  • 2-speed chain-driven automatic feed rollers
  • Hardened anti-kickback fingers
  • Precision-ground cast-iron table and extension wings
  • Locking table
  • Magnetic switch overload protection
  • Ball bearing return rollers
  • Depth scales in both inch and metric
  • Pedestal-mounted control panel
  • Motor: 3 HP, 240V, 15A, single-phase
  • Maximum cutting width: 15"
  • Maximum cutting height: 6"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 6"
  • Maximum depth of cut: 1/8"
  • Feed rate: 16 FPM and 20 FPM
  • Cutterhead diameter: 3"
  • Cutterhead inserts: 52
  • Cutterhead flutes: 4
  • Infeed rollers: solid serrated steel
  • Outfeed rollers: knurled steel
  • Table size with extension wings: 15" x 48"
  • Dust port: 4"
  • Approximate shipping weight: 581 lbs.
  • CSA certified
What's in The Box
  • 15-Inch Stationary Planer w/ Spiral Cutterhead
  • Owner's Manual
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Sku W1863
Brand Shop Fox
Horsepower 3 Hp
Voltage 240V
Amperage 15A
Phase Single
Max. Cutting Width 15 in.
Max. Cutting Height 6 in.
Min. Stock Thickness 3/16 in.
Min. Stock Length 6 in.
Max. Depth of Cut 1/8 in.
Feed Rate 16 Fpm and 20 Fpm
Cutterhead Diamter 3 in.
Cutterhead Inserts 52
Cutterhead Flutes 4
Table Size w/ Extension Wings 15 in. x 48 in.
Dust Port 4 in.
Product Weight 581 lbs.
