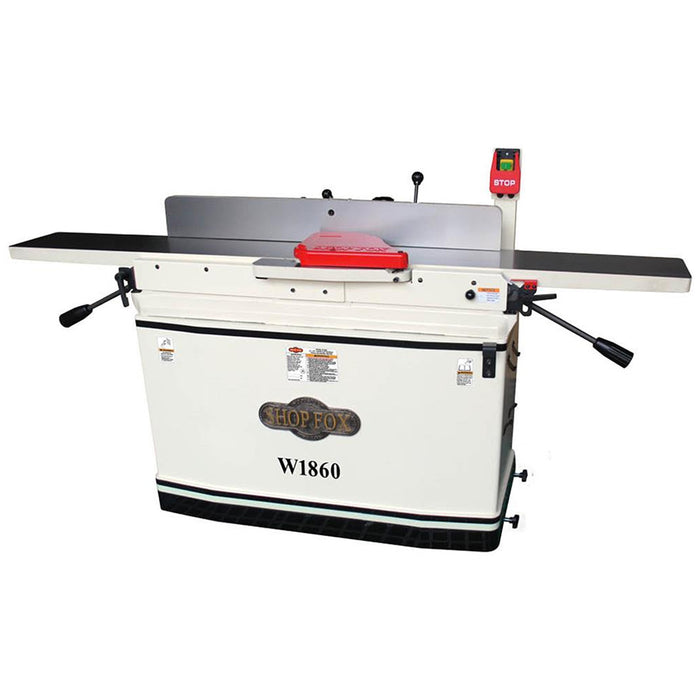

Shop Fox W1860 230 Volt 8 Inch x 76 Inch Parallelogram Spiral Cutterhead Jointer

$3,299.00 + Free Shipping

Ships Factory Direct
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: W1860
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

  • Lever-adjusted table height with depth gauge
  • Center-mounted fence with rack and pinion adjustment
  • Built-in mobile base
  • Precision-ground cast-iron tables
  • Extra long 40 infeed table
  • Powder-coated finish
  • 4 dust port with built-in dust chute
  • Motor: 3 HP, 230V, single-phase
  • Total table size: 9 x 76
  • Fence size: 4-5/8 x 38
  • Maximum depth of cut: 1/8
  • Rabbeting capacity: 1/2
  • Cutterhead speed: 5500 RPM
  • Cutterhead diameter: 3-1/16
  • Cuts per minute: 22,000
  • Number of cutterhead inserts: 36
  • Insert size: 15.0 x 15.0 x 2.5mm
  • Power transfer: Poly V-belt
  • Switch: magnetic push-button switch with large off paddle for safety
  • Fence system: positive stops at +/- 45 degrees and 90 degrees
  • Approximate shipping weight: 470 lbs.
  • CSA certified
What's in The Box
  • 8-Inch x 76-Inch Parallelogram Jointer
  • Mobile Base
  • Owner's Manual
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Sku W1860
Brand Shop Fox
Voltage 230V
Jointer Size 8 in.
Cutterhead Type Spiral
Cutterhead Diamter 3-1/16 in.
Num. of Cutter Spirals 4
Num. of Indexable Cutters 36
Cutterhead Speed 5,500 Rpm
Max. Width of Cut 8 in.
Max. Depth of Cut 1/8 in.
Min. Workpiece Length 10 in.
Min. Workpiece Thickness 1/2 in.
Max. Rabbeting Depth 1/2 in.
Number of Cuts Per Minute 22,000
Phase Single
Frequency 60 Hz
Horsepower 3 Hp
No Load Speed 3,450 Rpm
Power Transfer Belt Drive
Bevel Jointing 0 - 45 Degrees L/R
Bearings Sealed and Permanently Lubricated
Full-Load Current Rating 12A
Minimum Circuit Size 20A
Body Assembly Cast Iron
Dust Port Size 4 in.
Cutter Insert Type and Size Indexable Carbide
15mm x 15mm x 2.5mm
Power Cord Length 6 ft.
Power Cord Gauge 14 AWG
Table Adjustment Type
and Movement
Lever Action and Parallelogram
Table Size (L x W) 76 in. x 8 in.
Table Thickness 1-3/4 in.
Fence Stops 45, 90, 135-Degrees
Fence Size (L x W x H) 38 in. x 1-1/4 in. x 4-1/2 in.
Footprint (L x W) 40 in. x 16 in.
Length 76 in.
Width 25 in.
Height 41-1/2 in.
Product Weight 365 lbs.
