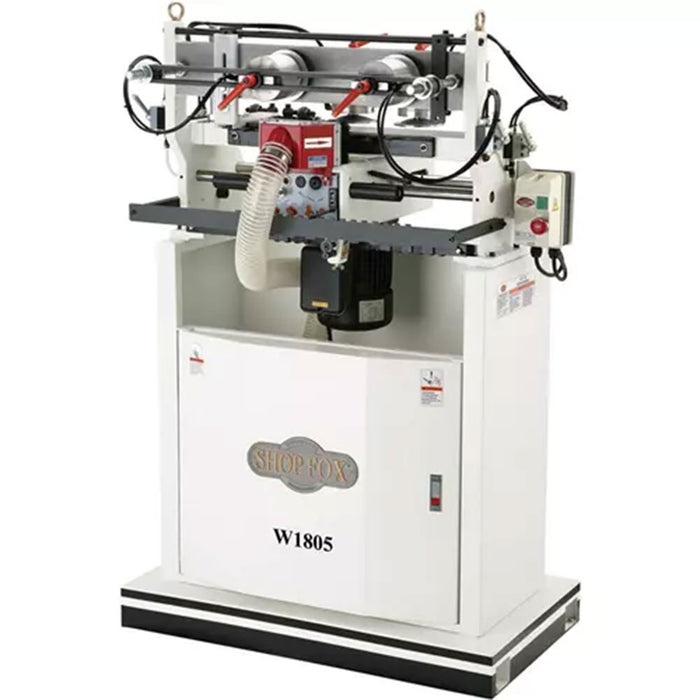

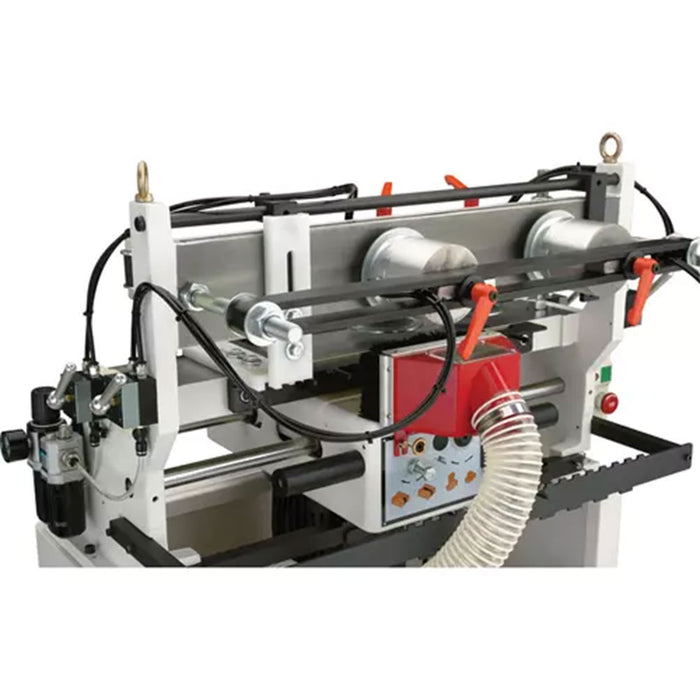

Shop Fox W1805 16-1/2" Ergonomic Dovetail Machine w/ Pneumatic Clamps
by Shop Fox
$6,197.00
+ Free Shipping
Condition: New
SKU: W1805
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features

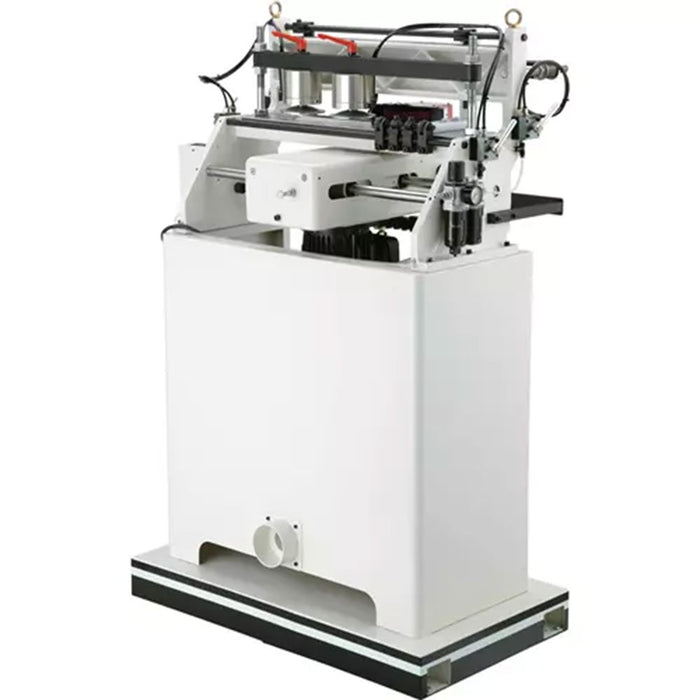

- 4" dust port
- Precision-milled cast-iron table frame
- Cast aluminum carriage
- Steel stand
- Hardened-and-ground chrome steel slide ways
- Ball bearing linear guides
- Four-sided dovetail template bar

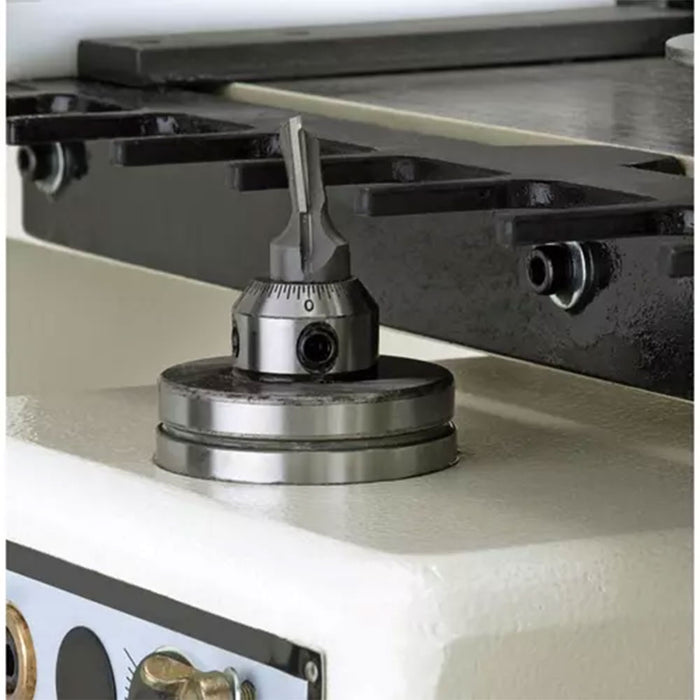

- Micro-adjustable spindle head
- Workpiece stops

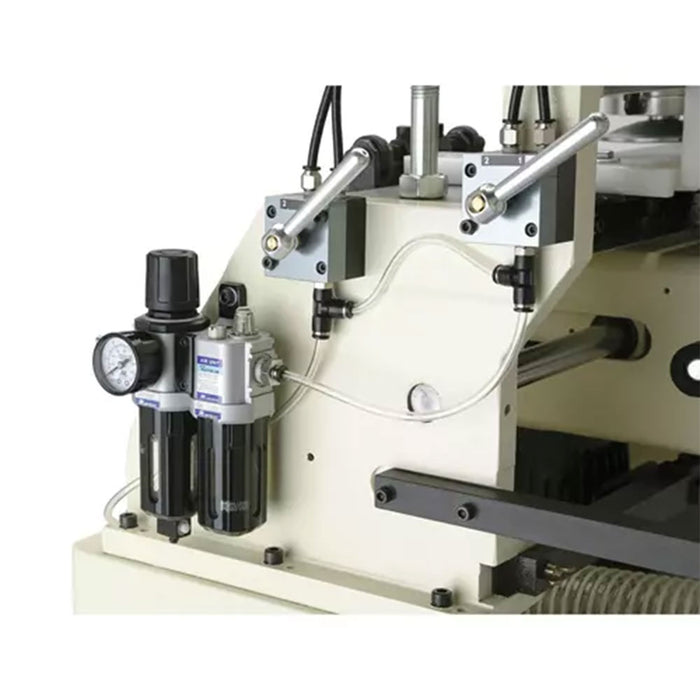

- Quick air cylinder clamp, air filter/regulator/lubricator with pressure gauge
- Spring-loaded carriage for smooth operation
- Magnetic switch with thermal overload protection
What's in The Box
- 16-1/2" Dovetail Machine - W1805
- Owner's Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | W1772 |
| Brand | Shop Fox |
| Motor | 1 HP, 110V/220V, prewired 220V, single-phase |
| Table size | 24" x 7-3/4" |
| Floor to table height | 46-7/16" |
| Overall size | 35-5/8"W x 56-7/8"H x 26-1/2"D |
| Number of spindles | 1 |
| Spindle speed | 18,500 RPM |

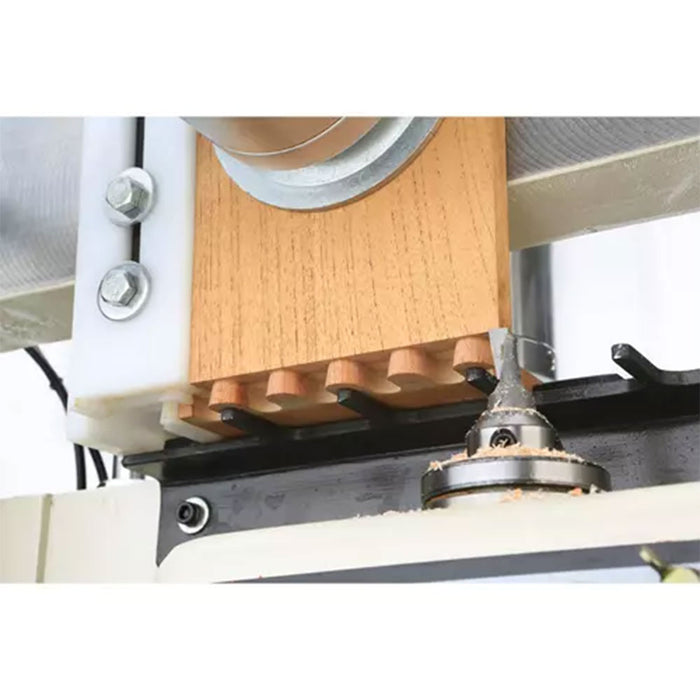

| Dovetail bit | 10° angle x 5/8" left-hand |
| Dovetail templates | 1", 1-1/2", 2", 2-1/2" |
| Dovetail bit shank | 1/2" (12mm) |
| Max. dovetail height | 3/4" |
| Min. dovetail height | 3/16" |
| Max. stock thickness | 2-3/8" |
| Min. stock thickness | 13/32" |
| Max. stock size | 59"L x 16-1/2"W |
| Min. stock size | 7-7/8"L x 2-3/8"W |
| Weight | 492 lbs. |
