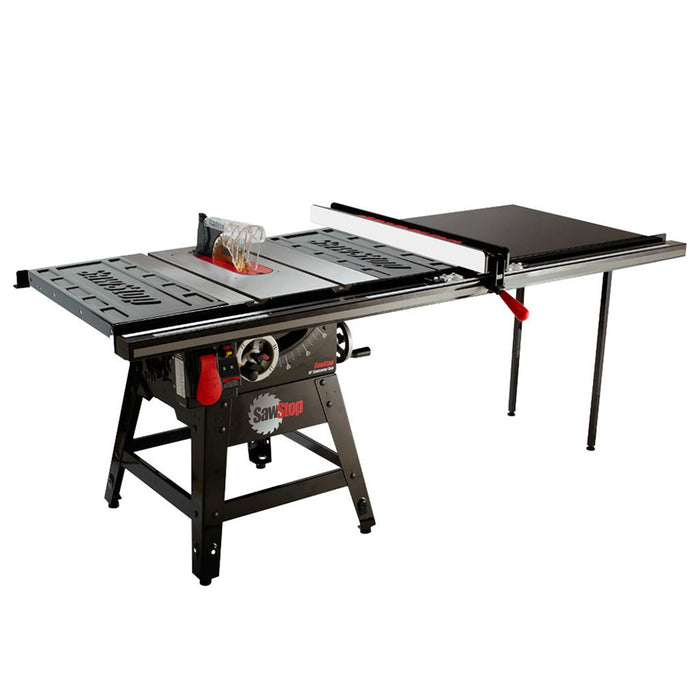

SawStop CNS175-TGP252 1.75Hp 52 Inch Contractor Table Saw w/ T-Glide Extension
by Saw Stop
$2,600.00
+ Free Shipping
Condition: New
SKU: SWP-CNS175-TGP252
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Patented safety system prevents serious accidents and injuries to provide the highest level of safety during operation
- All purpose safety and mobility suitable for both jobsites and work shops
- Rugged 110V motor (configurable to 220V) delivers a higher level of performance and power
- Tool-free quick change mount allows for fast and easy transitions between guard and riving knifes
- Professional fence systems deliver the straightest and most accurate cuts possible
- Enhanced dust collection increases dust and debris removal to provide a cleaner and safer work environment (Includes standard Micro Blade Guard, optional Dust Collection Blade Guard Sold Separately)
- Compatible with both 10 in. standard blades as well as 8 in. dado blade sets for maximum versatility
- Unmatched quality of construction provides a durable and reliable saw that's built to last
What's in The Box
- 1.75-Hp Pro Contractor Saw
- T-Glide Pro Fence
- 52-Inch T-Glide Pro Rails
- 52-Inch T-Glide Pro Table
- Owner's Manual
Warranty
- 3-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | CNS175-TGP252 |
| Brand | Saw Stop |
| Voltage | 110V |
| Horsepower | 1.75 Hp |
| Amperage | 14A |
| Phase | Single |
| Blade Diameter | 10 in. |
| Arbor | 5/8 in. |
| Blade Tilt and Kerf | Left / 0.018 in. |
| Blade Thicknesss | 0.078 in. |
| Max. Rip Right of Blade | 52 in. |
| Cabinet Footprint (W x D) | 19-3/8 in. x 19-3/8 in. |
| Cast Iron Table (W x D) | 20 in. x 27 in. 44 in. x 27 in. (w/ Extension Wings) |
| Stamped Steel Extension Wing (W x D) |
12 in. x 27 in. |
| Max Depth of Cut (Blade at 0-Degrees) |
3-1/8 in. |
| Max Depth of Cut (Blade at 45-Degrees) |
2-1/4 in. |
| Max. Rip Left of Blade | 12 in. |
| Dado Diamter | 8 in. |
| Dado Max. Width | 13/16 in. |
| Arbor Diameter at Blade | 5/8 in. |
| Main Bearing Size | 62mm OD x 30mm ID |
| Second Bearing Size | 52mm OD x 25mm ID |
| Table in Front of Blade | 10-1/4 in. |
| Table Behind Blade | 7-1/2 in. |
| Arbor Runout | 0.001 in. Max. Allowable Runout |
| Blade Lateral Movement Over Full Elevation Range |
0.006 in. Max |
| Table Flatness Measured Diagonally |
0.010 in. Max Displacement |
| Deviation of Miter Gauge Indexing Stops |
.025 in. |
| Alignment Between Spreader and Blade |
0.010 in. Max Difference |
| Miter Slots (T-Shaped) | 3/4 in. at Top 1 in. at Bottom 3/8 in. Deep |
| Riving Knife / Splitter Thickness | 0.078 in. |
| Wheel Size | 7 in. Diameter Cast Iron w/ Chrome Handle |
| Length | 85-1/4 in. |
| Width | 45 in. |
| Height | 34-3/4 in. |
| Product Weight | 381 lbs. (Table Saw Only) |
