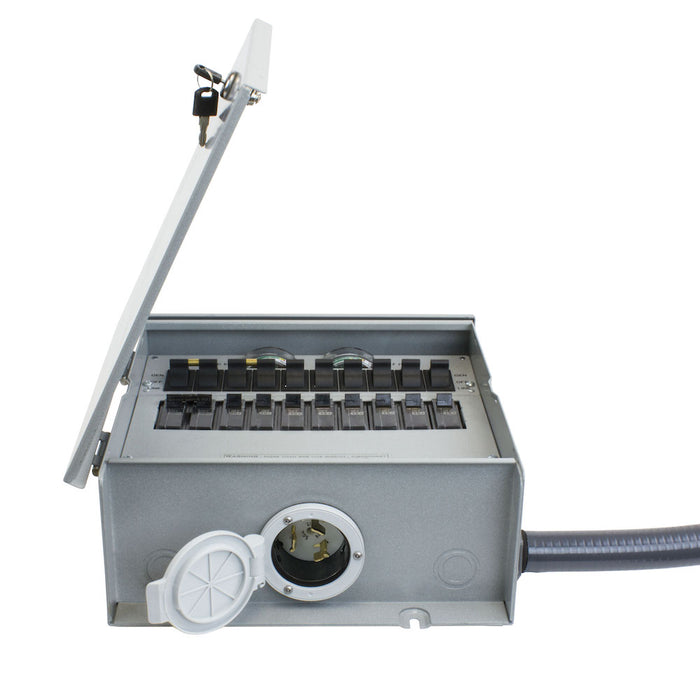

Reliance R510A 120/240V 50 Amp 10 Circuit Pro/Tran-2 Outdoor Transfer Switch
by Reliance
$469.99
+ Free Shipping
Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To
Condition: New
SKU: R510A
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Pro/Tran 2 50A 10-Circuit 120/240V Outdoor Manual Transfer Switch
- The next generation of Load side manual transfer switches
- Non-Defeat able (Break-Before-Make) Double-Throw Switch
- Eliminates dangerous back feeds and electrical overloads
- 10 Total Circuits (1") Interchangeable Style)
- (1) 20A 2-pole, (2) 20A 1-pole and (6) 15A 1-pole
- NEW Color-Coded Built-In Analog Wattmeter
- Helps you balance and manage generator load
- Factory Installed 50-Amp (CS6375) Power Inlet w/ Flip-Lid
- Easily connect your generator cord on bottom of switch
- NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
- Gasketed design, provides liquid tight protection in all seasons
- Key lockable door prevents tampering and unauthorized use
- 16" Flexible, Non-Metallic Liquid-Tight Conduit (1") w/ Fittings
- (5) Combination 1/2" and 3/4" knockouts for easier installation
- Factory-marked, color-coded wires simplifies installation
- Safety and Certifications
- Certified for use by Underwriter Laboratories to UL Standard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
- Reliance Pro/Tran-2 50 Amp 120/240V 10 Circuit Outdoor Transfer Switch - R510A
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | R510A |
| Brand | Reliance |
| Product Specs | |
| Model | Pro/Tran-2 |
| Voltage | 120/240V single phase |
| Rated Watts | 12500 Watts |
| Rated Amps | 50 |
| Enclosure | NEMA 3R |
| Conduit Length | 16 |
| Number of Circuit Breakers | 10 |
| UL Listed | Yes |
| Transfer Switch Circuits | |
| 15A 120V | 6 |
| 20A 120V | 2 |
| 20A 240V | 1 |
| Circuit Breaker Protection | Each Circuit |
| Overview | |
| Length | 13 in |
| Width | 12 in |
| Height | 5 in |
| Weight | 18 lbs |
