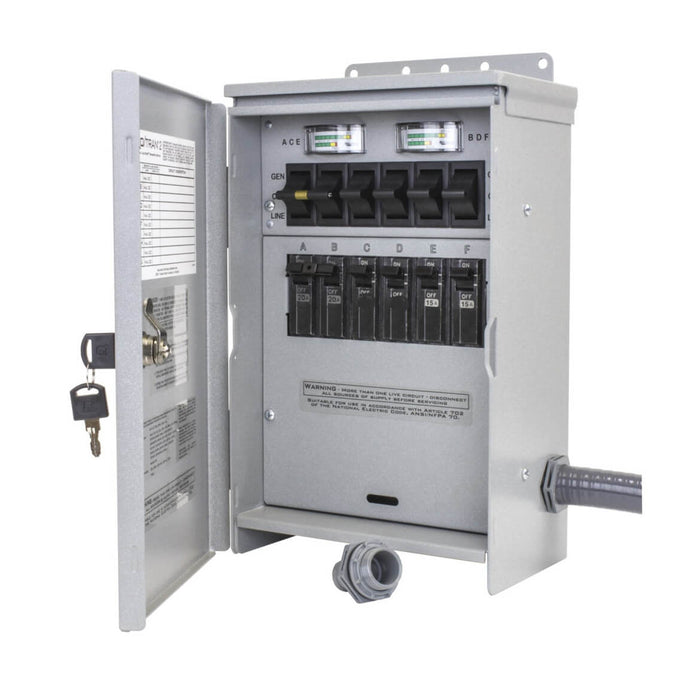

Reliance R206A 120/240-Volt 20-Amp 6-Circuit Pro/Tran Outdoor Transfer Switch
by Reliance
$324.99
+ Free Shipping
Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To
Condition: New
SKU: R206A
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Pro/Tran 2 20A 6-Circuit 120/240V Outdoor Manual Transfer Switch
- The next generation of Loadside manual transfer switches
- Non-Defeatable (Break-Before-Make) Double-Throw Switch
- Eliminates dangerous backfeeds and electrical overloads
- (4) 15A 1-Pole and (1) 20A 2-Pole; Easily re-configured in the field
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manage generator load

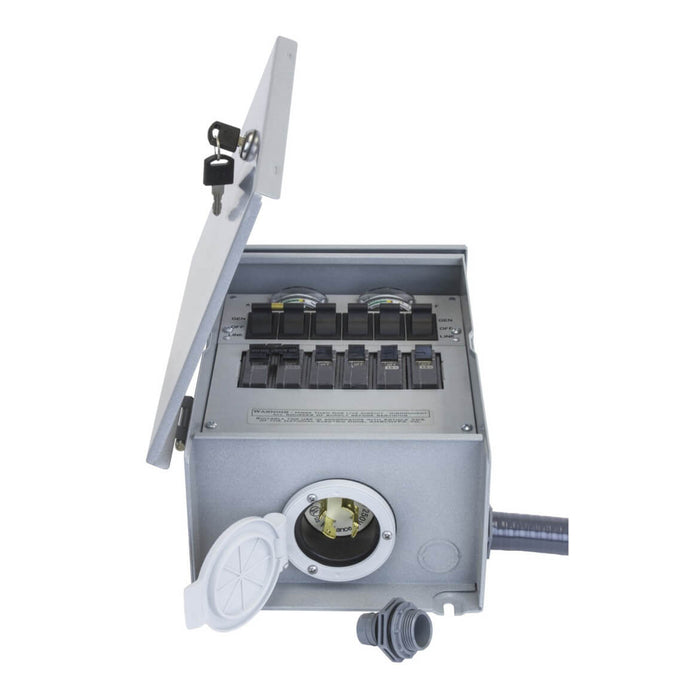

- Factory Installed (L14-20) Power Inlet w/ Flip-Lid
- Easily connect your generator cord on bottom of switch

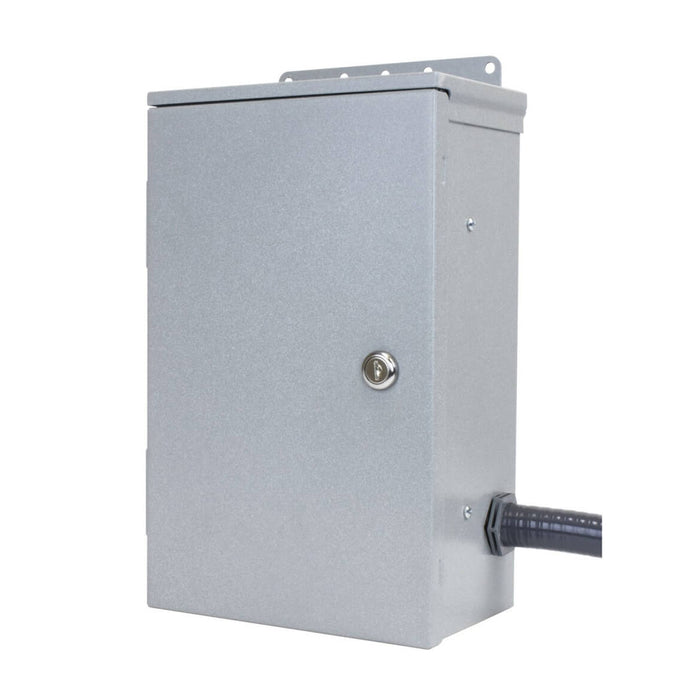

- NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
- Gasketed design, provides liquid tight protection in all seasons
- Key lockable door prevents tampering and unauthorized use
- 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
- (5) Combination 1/2 and 3/4 knockouts for easier installation
- Factory-marked, color-coded wires simplifies installation
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
- 120/240-Volt 20-Amp 6-Circuit Outdoor Transfer Switch - R206A
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
Model | R206A |
Brand | Reliance |
Voltage | 120/240 |
Max. Wattage | 5,000 |
Frequency | 60 Hertz |
Max. Generated Input (Amps) | 20 |
Conduit Length (in.) | 16 |
Circuits | 4 - 15A/120V
1 - 20A/240V |
Circuit Breakers | 6 |
Weight (lbs.) | 18 |
Dimensions (LxWxH) (in.) | 13 x 8 x 5
(33.02 x 20.32 x 12.70 cm) |
