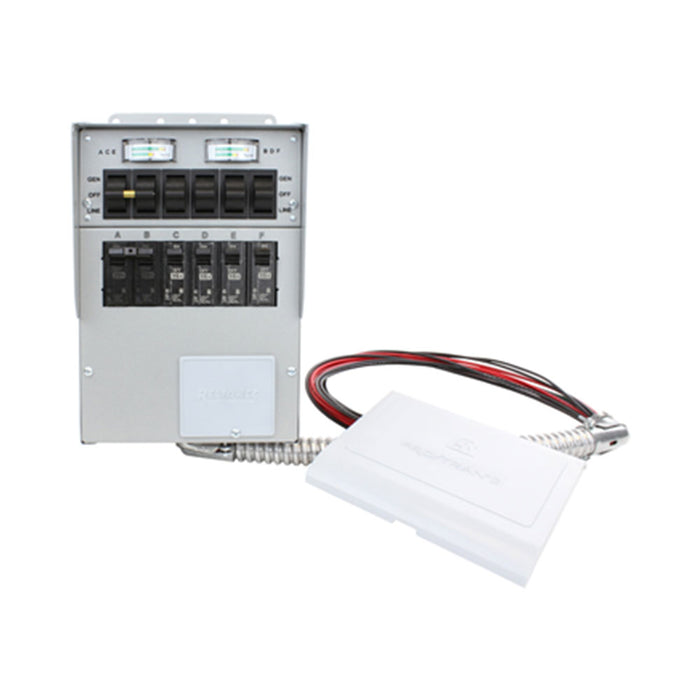

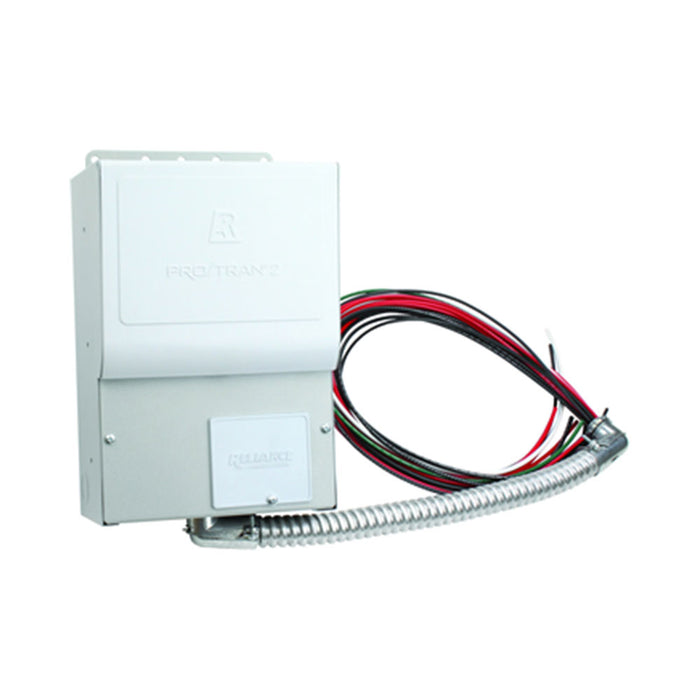

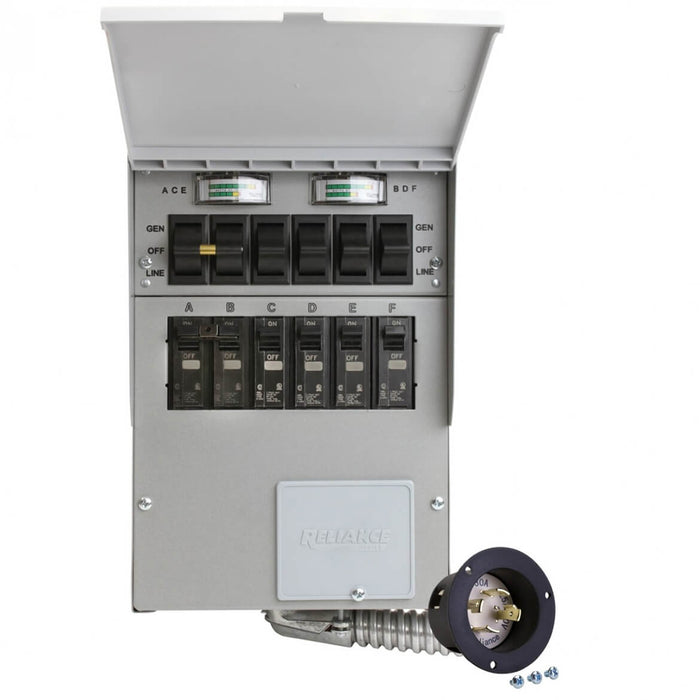

Reliance 306A 120-240-Volt 30-Amp 6-Circuit Pro/Tran Indoor transfer Switch
by Reliance
$269.99
+ Free Shipping
Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To
Condition: New
SKU: 306A
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Pro/Tran 2 30-Amp 6-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside manual transfer switches
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- (4) 15A 1-Pole and (1) 20A 2-Pole
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Versatile Connection
- Allows hardwiring OR plug-in connection via power inlet (included)
- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs and povides a finished apperance
- Powder-Coated Steel Cabinet For Indoor Installation
- 18 Flexible conduit w/ all factory wires clearly marked/colored
- (6) Combination 1/2 and 3/4 knockouts for easier installation
- Easily re-configured in the field for multiple 2-pole circuits
- Safety and Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
- 120/240-Volt 30-Amp 6-Circuit Indoor Transfer Switch - 306A
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 306A |
| Brand | Reliance |
| Max. Generator Running Watts | 7,500 |
| Phase | Single |
| Frequency | 60 |
| Circuits | 4 - 15A/120V
1 - 20A/240V |
| Max. Single-Pole Circuits | 6 |
| Max. Double-Pole Circuits | 3 |
| Max. Combined Load at 125 Vac | 60 |
| Max. Combined Load at 250 Vac | 30 |
| Power Inlet | L14-30 |
| Recommended Cord Size (Guage) | 10 |
| Conduit Size (in.) | 3/4 |
| Conduit Length (in.) | 16 |
| Watt Meters | Yes |
| Dimensions (HxWxD) (in.) | 11.25 x 7.75 x 4.5
(28.58 x 19.69 x 11.43 cm) |
| Cabinet Type | Indoor |
