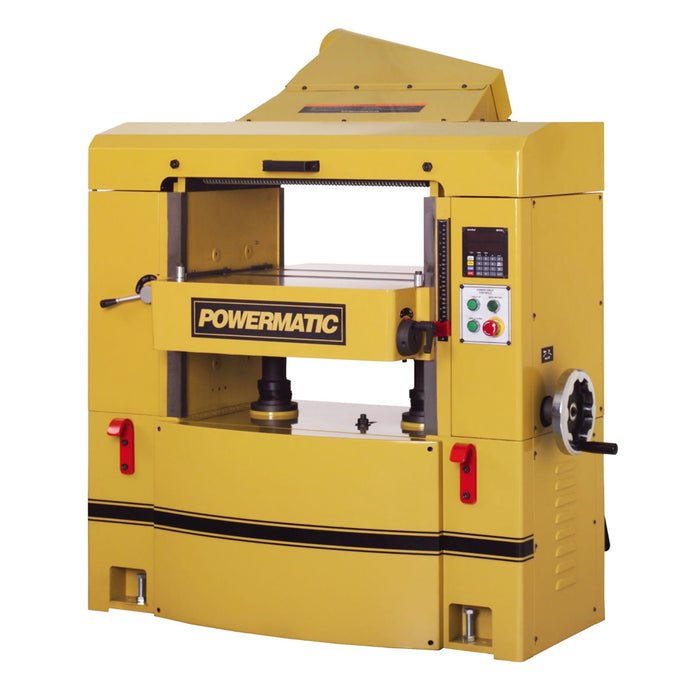

Powermatic WP2510 15-Hp 230/460V 25" Planer w/ Solid Steel Helical Cutterhead
by Powermatic
$18,499.99
+ Free Shipping
Condition: New
SKU: PWC-1791303
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features

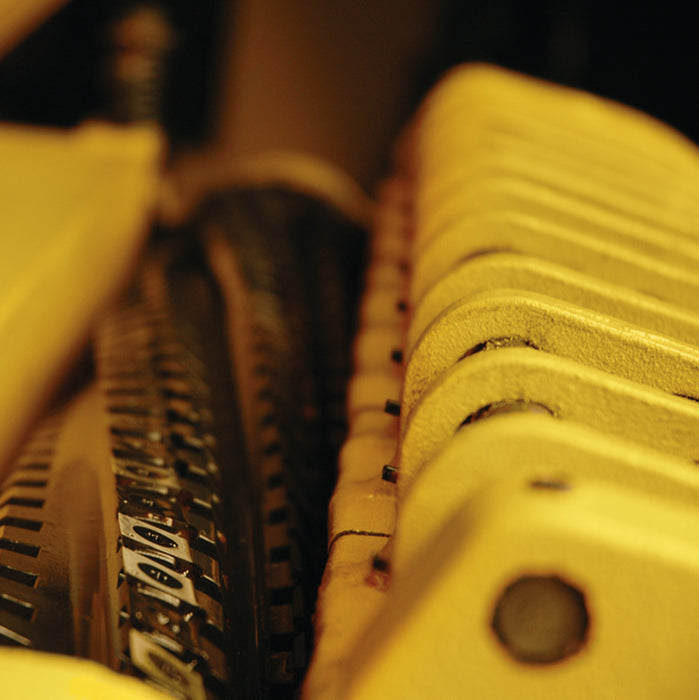

- Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
- Digital readout and simple PC controller make quick and easy table height set ups

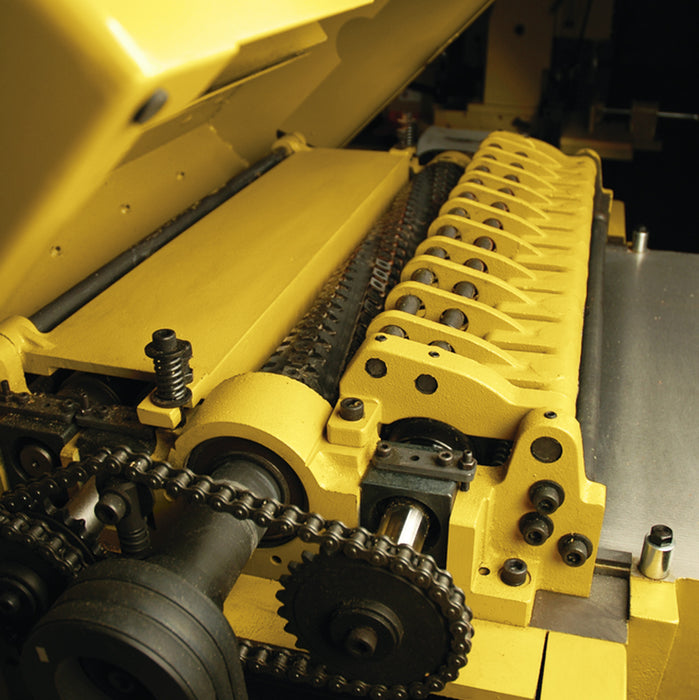

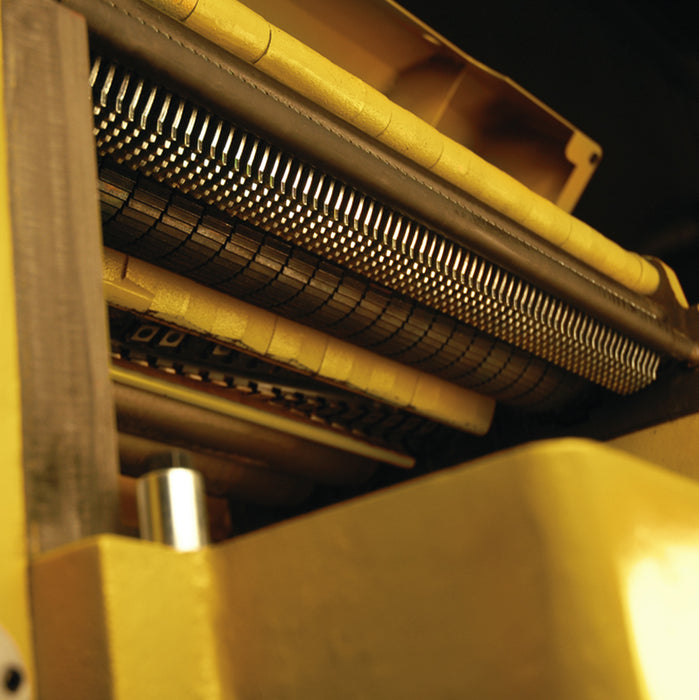

- Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
- Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
- 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
- Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
- Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
- 3 speed feed selector allows you to quickly change feed rates
- Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
What's in The Box
- Powermatic WP2510, 25" Planer, 15HP 3PH 230/460V Helical Head
- Helical head with four sided inserts
- Segmented infeed rollers
- Segmented chip breakers
- Tool kit with pneumatic screwdriver for removing the cutterhead insert blades
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
Specifications
| Model | 1791303 |
| UPC | 662755523427 |
| Style (Type) | Planer |
| Cutterhead Speed (RPM) | 5,000 |
| Cutterhead Diameter (In.) | 3-3/8 |
| Cuts Per Minute | 30,000 |
| Number of Knives | 174 Four-Sided Inserts |
| Maximum Depth of Cut (In.) | 1/4 |
| Maximum Full Width Depth of Cut (In.) | 1/8 |
| Maximum Planing Width (In.) | 25 |
| Maximum Planing Thickness (In.) | 9-1/4 |
| Minimum Planing Length (In.) | 10 |
| Feed Rate (FPM) | 20, 25, 30 |
| Segmented Infeed Roller Diameter (In.) | 3 |
| Outfeed Roller Diameter (In.) | 3 |
| Bed Rollers Adjustable from Front | 0 - 0.05 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 0.05 |
| Table Size (L x W) (In.) | 32-3/16 x 26 |
| Table Support | 2 Column |
| Column Diameter (In.) | 2-1/2 |
| Digital Readout | Inch / Metric |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 5 |
| Motor Power (HP) | 15 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
