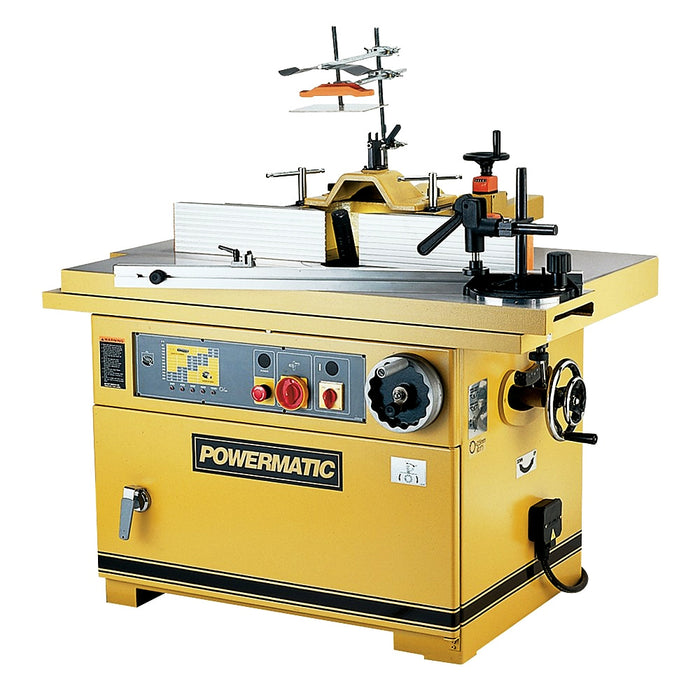

Powermatic TS29 7-1/2" 230/460V Heavy Duty Tilt/Slide Shaper w/ Sliding Table
by Powermatic
$13,199.99
+ Free Shipping
Condition: New
SKU: PWC-1791284
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons

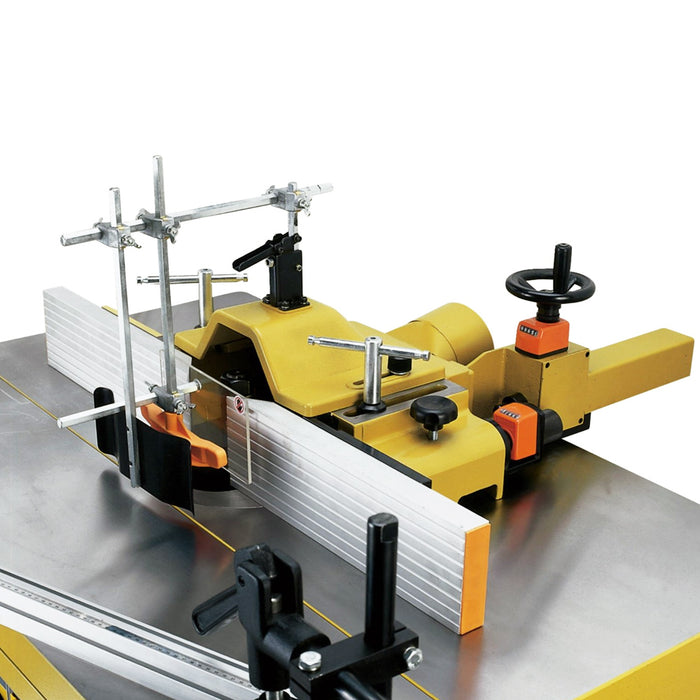

- Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
- Large table with built-in slider with room for stock feeder
- 7" vertical spindle travel allows stacked tooling
- Spindle tilts negative 5° to positive 45° for increased versatility
- Large diameter multiple table inserts accommodate virtually any size cutter

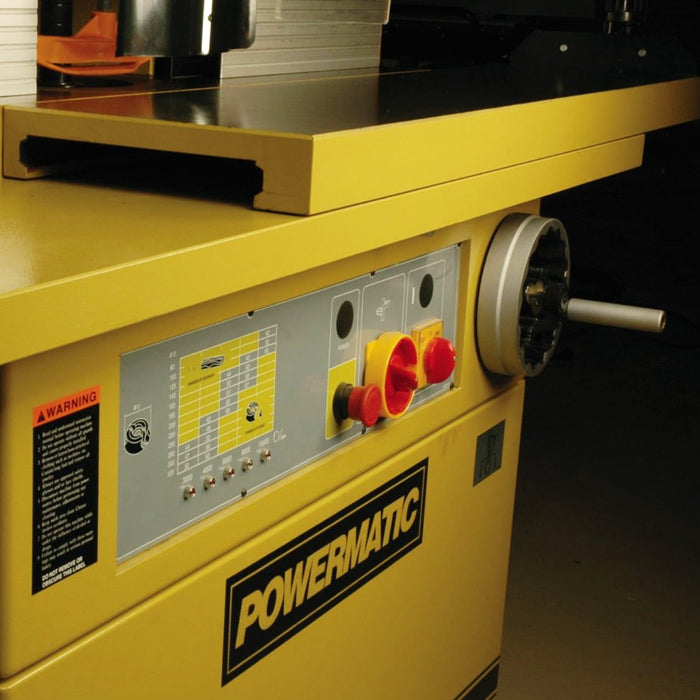

- Five spindle speeds in forward and reverse with lighted indicator
What's in The Box
- Powermatic TS29 Shaper, 7.5HP 3PH 230/460V, Sliding Table
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
Specifications
| Model | 1791284 |
| UPC | 662755464232 |
| Style (Type) | Shaper |
| Spindle Speed (RPM) | 3,000, 4,000, 6,000, 8,000, 10,000 |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Spindle Size Under Nut (In.) | 3/4 (3-1/2), 1 (6-1/4), 1-1/4 (6-1/4) |
| Spindle Travel (In.) | 7 |
| Spindle Tilt (Deg.) | 45 Forward, 5 Back |
| Reversible | Yes |
| Router Bit Collet Included | 1/4, 1/2 |
| Maximum Diameter Cutter Above Table (In.) | 12 |
| Maximum Diameter Cutter Below Table (In.) | 9 |
| Table Inserts (In.) | 3: One Tilting, Two Straight |
| Table Size (In.) | 51-1/2 x 33-1/2 |
| Table Travel (In.) | 49-1/4 |
| Sliding Table Size (In.) | 11-1/4 x 51-1/4 |
| Fence Size (L x H) (In.) | 46 x 5 |
| Fence Travel (Major and Minor) (In.) | 5-3/8, 3-5/8 |
| Dust Port Outside Diameter (In.) | 5 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Electrical Controls | Yes |
| Motor Power (HP) | 7-1/2 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230, 460 |
| Prewired Voltage (V.) | 230 |
