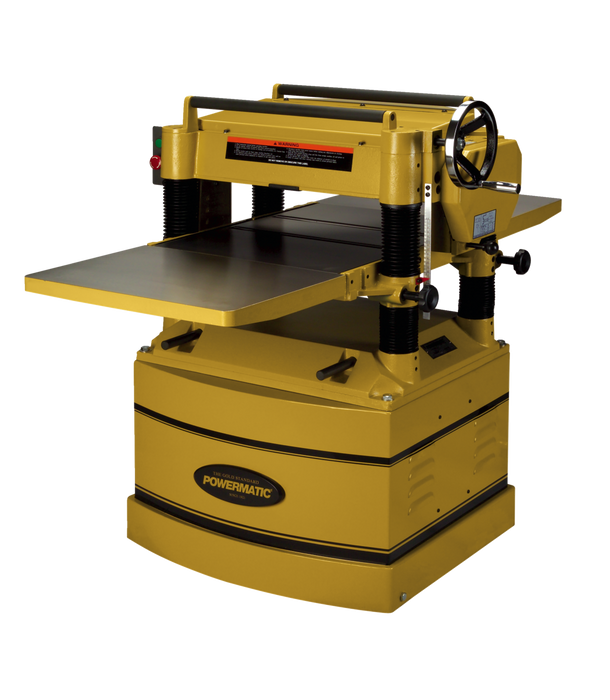

Powermatic PM9-1791316-4 5HP 3PH 460V 20" 209HH Planer Helical Cutterhead
by Powermatic
$6,613.00
+ Free Shipping
Condition: New
SKU: PWC-1791316-4
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $12.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Cast iron head
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Chip breaker and pressure bar assists to reduce snipe

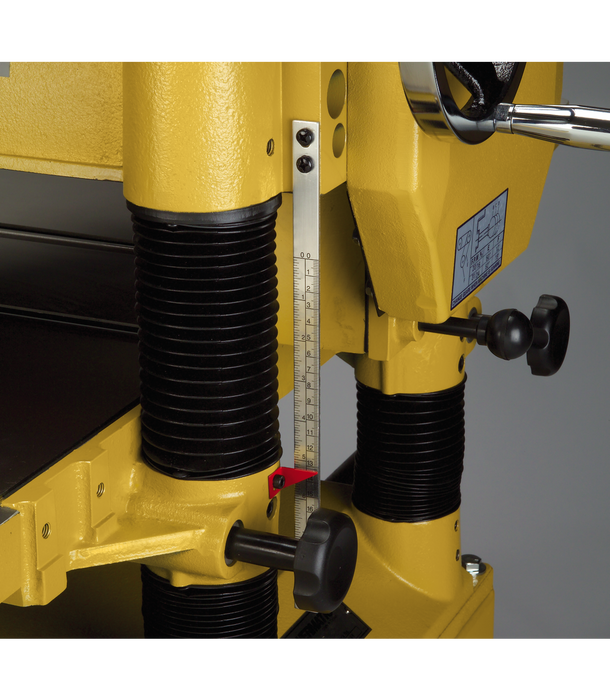

- Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
- Feed rollers and cutterhead supported by full cast iron head assembly
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- Fully enclosed base cabinet with integrated casters for shop mobility
- Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation

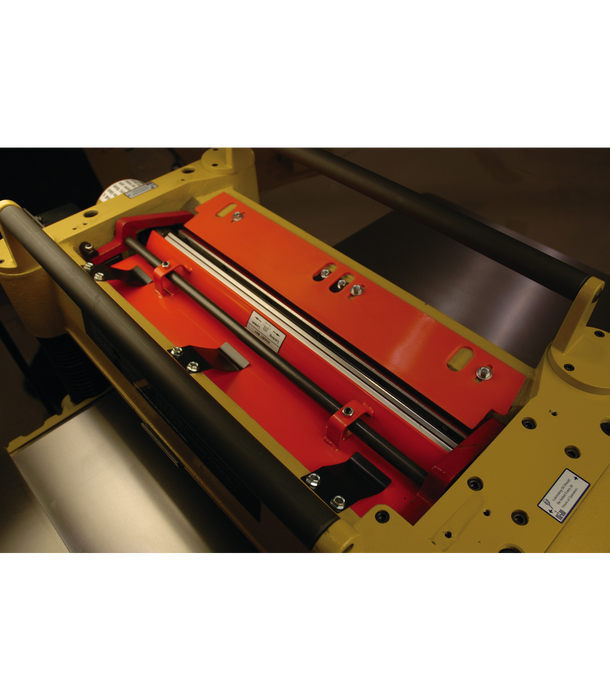

- The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
What's in The Box
- (1) 209HH, 20-Inch Planer, Helical Cutterhead, 5 HP, 3Ph 230/460V
- Owner's Manual
Warranty
- 5 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | PM9-1791316-4 |
|---|---|
| Brand | Powermatic |
| Cuts Per Minute | 20,000 |
| Cutterhead Diameter (In.) | 3-3/16 |
| Cutterhead Speed (RPM) | 5000.0000 |
| Dust Collection Minimum CFM Required (CFM) | 900 |
| Dust Port Outside Diameter (In.) | 5 |
| Feed Rate (FPM) | 24/31 |
| Maximum Depth of Cut (In.) | 3/32 |
| Maximum Full Width Depth of Cut (In.) | 3/32 |
| Maximum Planing Thickness (In.) | 8 |
| Maximum Planing Width (In.) | 20 |
| Minimum Planing Length (In.) | 6-3/4 |
| Model Number | 209HH |
| Motor Phase | 3 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Floor |
| Table Size (L x W) (In.) | 25-3/4 x 20 |
| Table Support | 4 Column |
| Type of Cutterhead | HELICAL |
| Warranty | 5 Year |
| Gross Weight | 840.0 |
| Net Weight | 800.0 |
