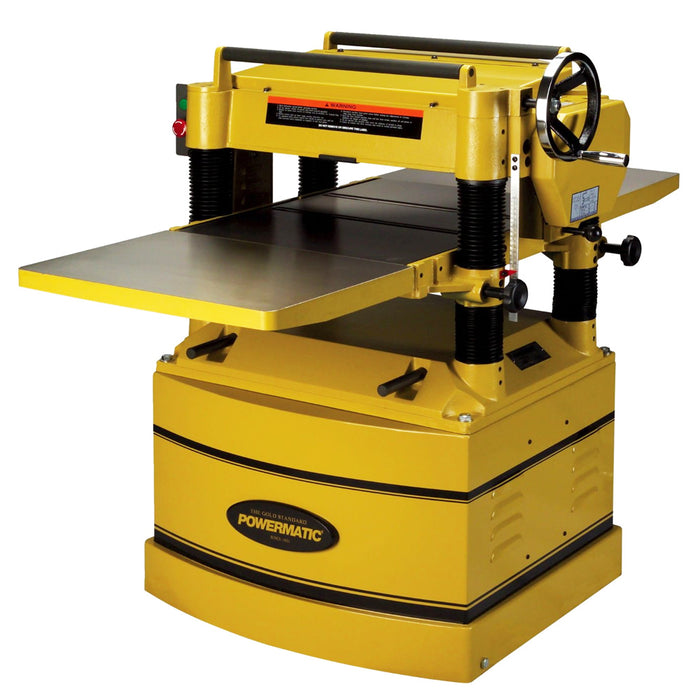

Powermatic 209HH-3 5-Hp 230/460V 20" Heavy Duty Planer w/ Helical Cutterhead

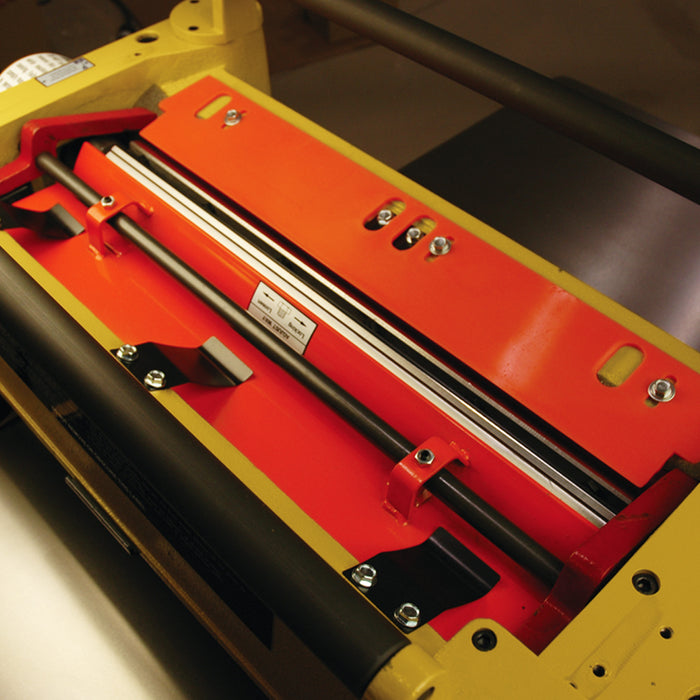

- The Byrd SHELIX helical cutterhead with 100 knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- 5HP motor and 20" planing capacity for heavy duty work
- Fully enclosed base cabinet with integrated casters for shop mobility
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- 460V operation requires an additional 460V magnetic switch: 209-5016E
What's in The Box
- Powermatic 209HH-3, 20" Planer, 5HP 3PH 230/460V, Byrd Shelix Cutterhead
- Byrd helical cutterhead with knife inserts
- Cast iron extension tables
- Owners Manual
- Owner's Manual
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
|Cutterhead Speed (RPM)||5,000|
|Cutterhead Diameter (In.)||3-3/16|
|Number of Knives||99 Four-Sided Inserts|
|Maximum Depth of Cut (In.)||3/32|
|Maximum Planing Width (In.)||20|

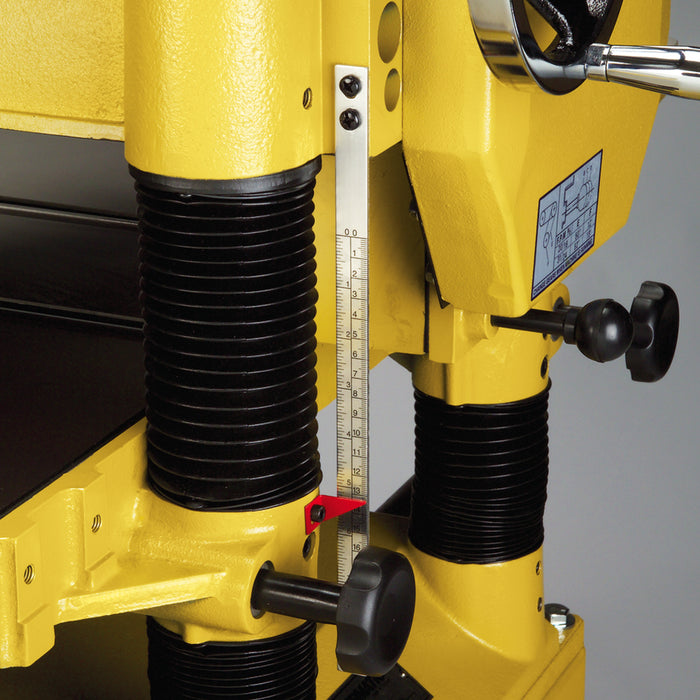

|Maximum Planing Thickness (In.)||8|
|Minimum Planing Length (In.)||6-3/4|
|Feed Rate (FPM)||24, 31; 16, 20 with Gear Change|
|Number of Speeds||4|
|Bed Rollers Adjustable from Front||N.A.|
|Table Size (L x W) (In.)||20 x 55-1/2|
|Table Support||4 Column|
|Digital Readout||Inch / Metric|
|Dust Collection Minimum CFM Required (CFM)||900|
|Dust Port Outside Diameter (In.)||5|
|Motor Power (HP)||5|
|Motor Voltage (V.)||0.5|
|Prewired Voltage (V.)||230|
