Features
- Knife setting gauge
- 5HP motor and 20" planing capacity for heavy duty work
- Fully enclosed base cabinet with integrated casters for shop mobility
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
- 460V operation requires an additional 460V magnetic switch: 209-5016E
- Single-sided knives
- Cast iron extension tables
What's in The Box

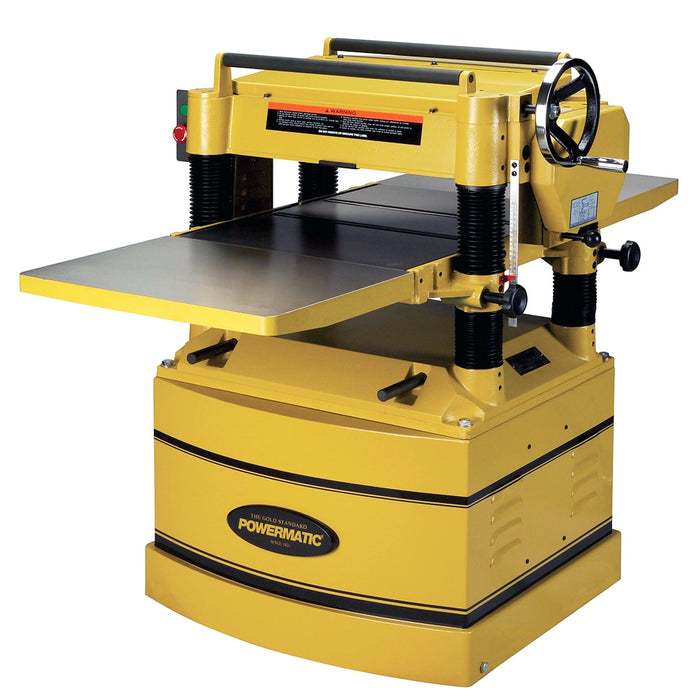

- Powermatic 209, 20" Planer, 5HP 3PH 230/460V
- Owner's Manual
Warranty
- Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
- 90 Days - Parts; Consumable items
- 1 Year - Motors, Machine Accessories
- 2 Year - Woodworking Machinery used for industrial or commercial purposes
- 5 Year - Woodworking Machinery
Specifications
Model | 1791297 |
UPC | 662755501234 |
Style (Type) | Planer |
Cutterhead Speed (RPM) | 5,000 |
Cutterhead Diameter (In.) | 3-3/16 |
Cuts Per Minute | 20,000 |
Number of Knives | 4 |
Maximum Depth of Cut (In.) | 3/32 |
Maximum Planing Width (In.) | 20 |
Maximum Planing Thickness (In.) | 8 |
Minimum Planing Length (In.) | 6-3/4 |
Feed Rate (FPM) | 24, 31; 16, 20 with Gear Change |
Number of Speeds | 4 |
Range of Speeds | 24, 31, 16, 20 |
Bed Rollers Adjustable from Front | N.A. |
Table Support | 4 Column |
Digital Readout | Inch / Metric |
Dust Collection Minimum CFM Required (CFM) | 900 |
Dust Port Outside Diameter (In.) | 5 |
Motor Power (HP) | 5 |
Motor Phase | 3 |
Motor Voltage (V.) | 230 |
Prewired Voltage (V.) | 230 |
