Features

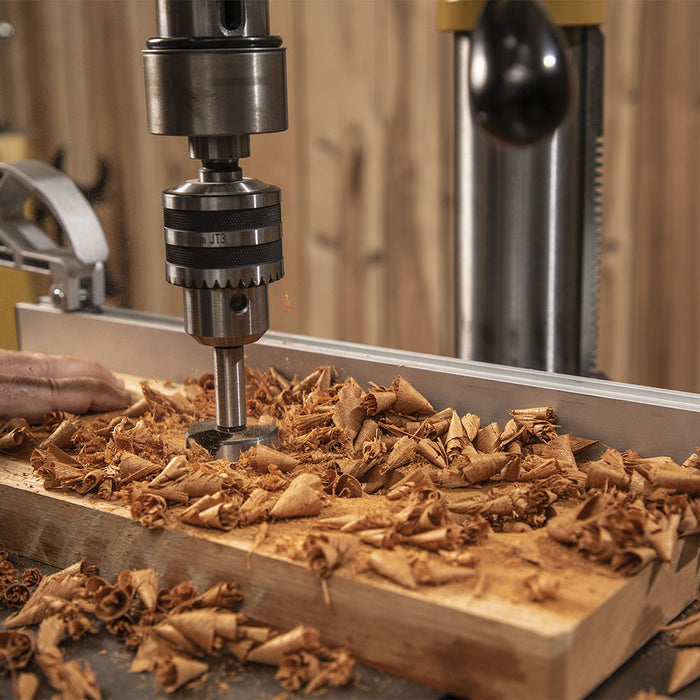

- Designed for a range of materials and applications

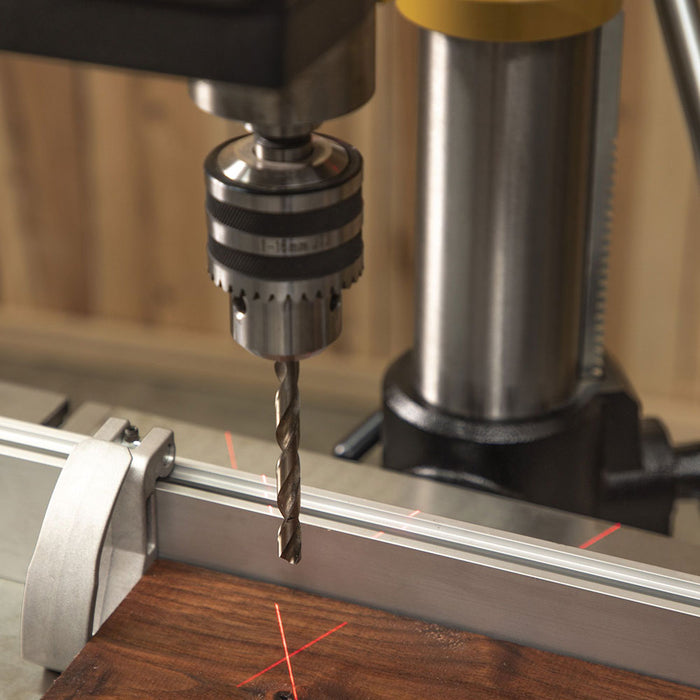

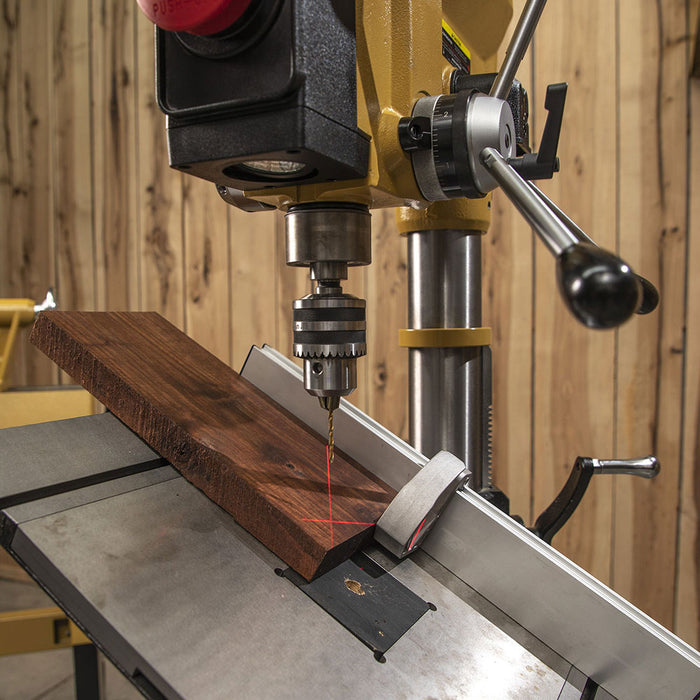

- For unbeatable accuracy, the laser cross hairs provide precise tool point indication.

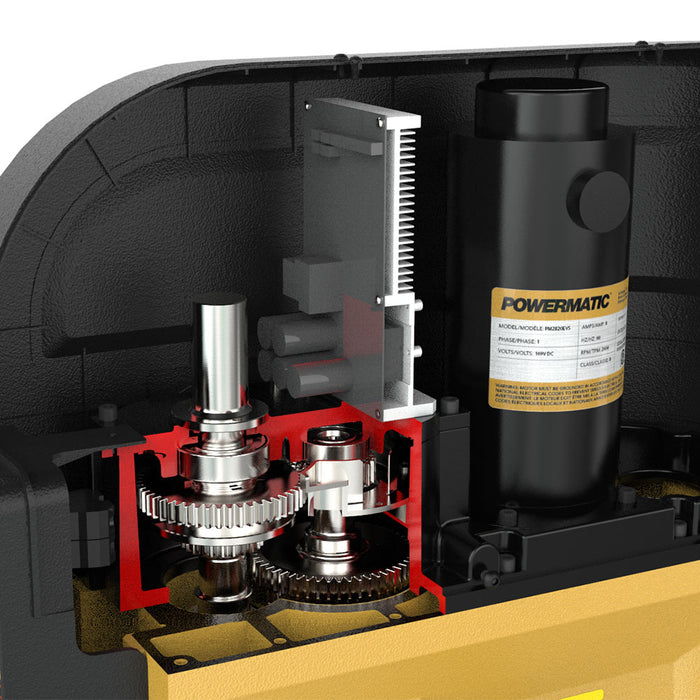

- Gear driven power transfers torque consistently and efficiently for a wide range of materials.
- Handles can be reversed for left or right sided operation.

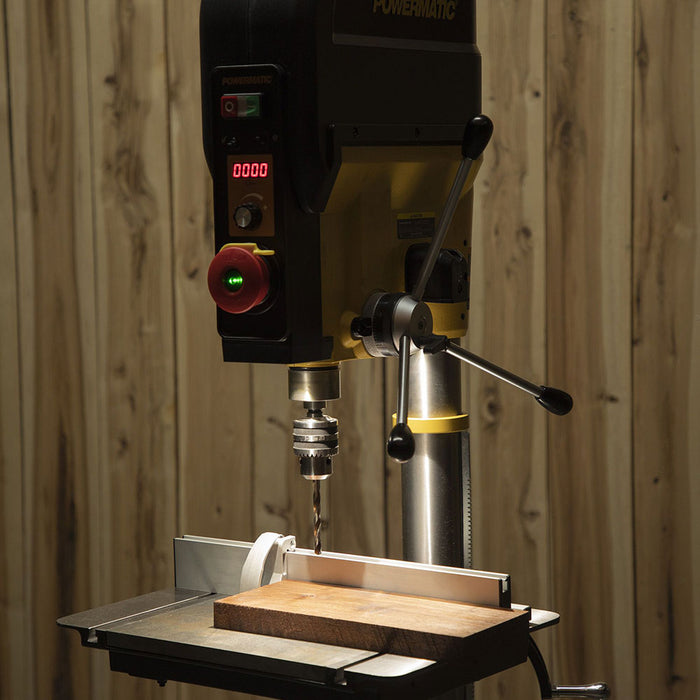

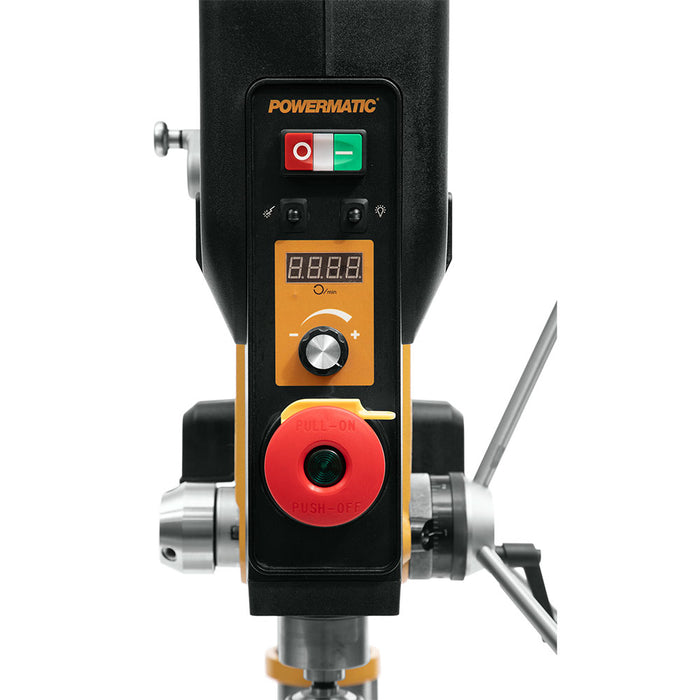

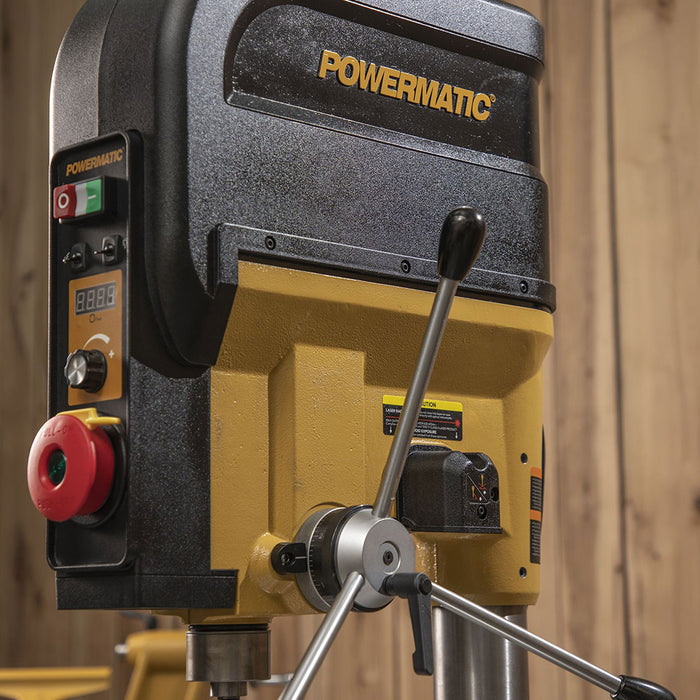

- Highly visible digital readout gives users control.

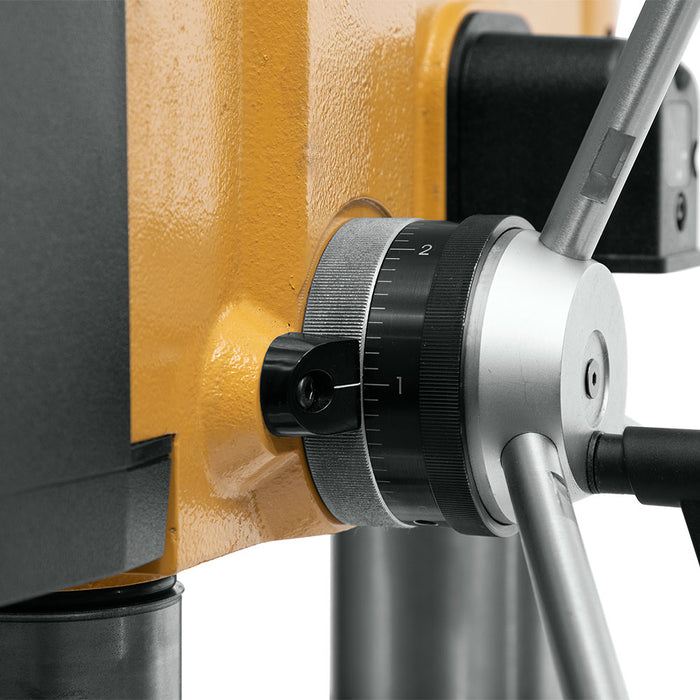

- Includes Powermatic’s patented integrated depth stop for efficient drilling
- Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.

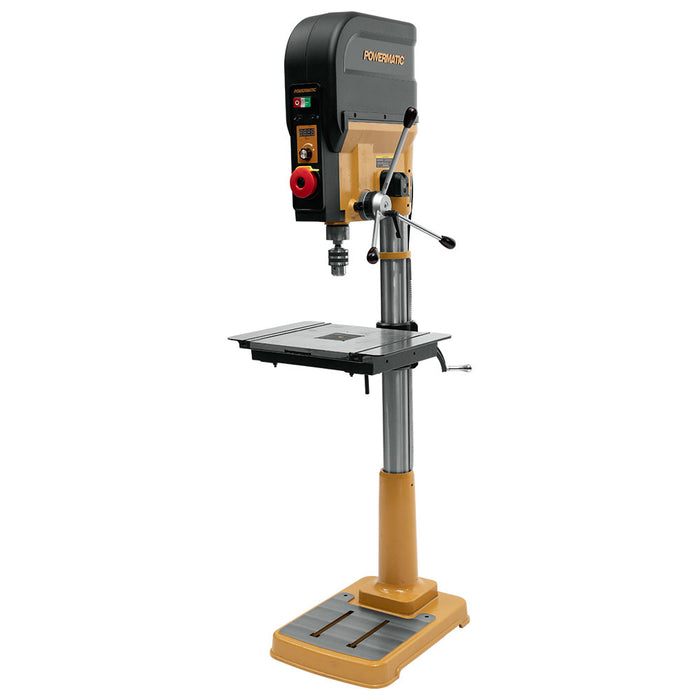

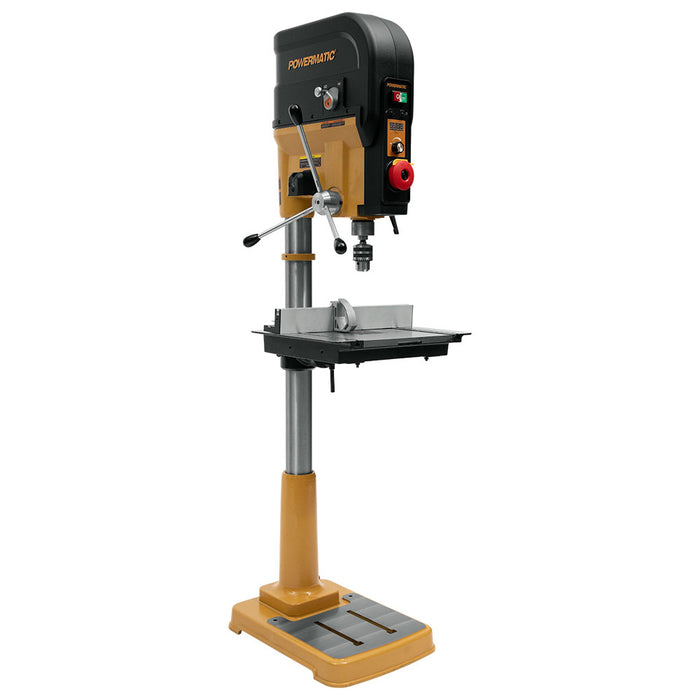

- Standing on an oversized cast base for outstanding stability for the 20 inch swing.

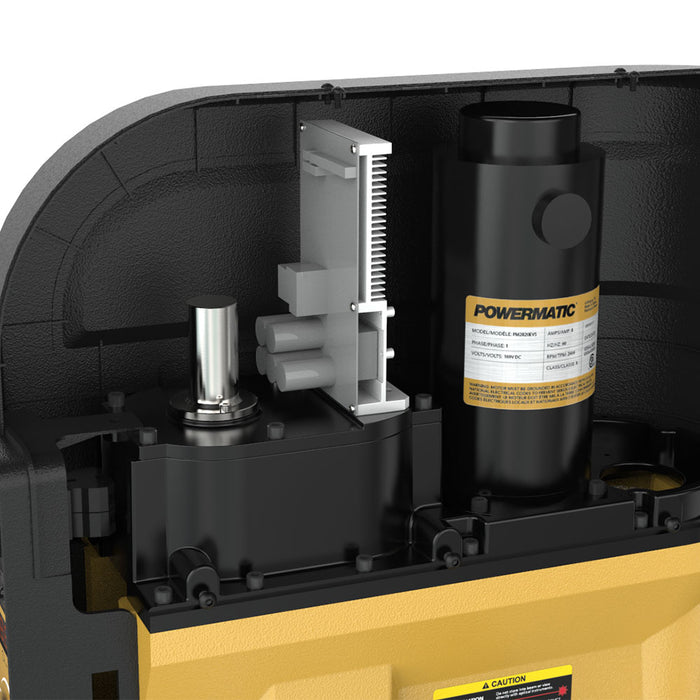

- The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM.
- The large cast table adjusts to a range of positions and tilts to a full ninety degree position.
What's in The Box
- PM2820EVS 1HP 1PH 120V Drill Press
- Owner's Manual
Warranty
- 3 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 1792820 |
| Brand | Powermatic |
| Motor Amps | 8 |
| Motor (HP) | 1 |
| Motor Phase | Single |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 120 |
| Prewired Voltage (V.) | 115 |
| Base Dimensions (In.) | 22.7 x 16.33 x 2.75 |
| Base Size (In.) | 22-3/4 x 16-3/8 x 2-3/4 |
| Base Work Table (In.) | 11.81 x 12.05 |
| Chuck Distance to Base (In.) | 41-1/4 |
| Chuck Distance to Table (In.) | 19-1/4 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-3/8 |
| Fence Size (L x H) (In.) | 19-3/4 x 2-5/8 |
| Gross Weight (Lbs) | 413.6 |
| Net Weight (Lbs.) | 336.6 |
| Number of Spindle Speeds | 2 Variable |
| Overall Dimensions (L x W x H) (In.) | 24.5 x 20.5 x 71.85 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 2.6 |
| Spindle Distance to Base (In.) | 45 |
| Spindle Distance to Table (Max.) (In.) | 23 |
| Spindle Speed (RPM) | 150 - 3600 |
| Spindle Taper | MT2 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Floor |
| Swing (In.) | 20 |
| Table Size Fully Extended (L x W) (In.) | 20-1/2 x 15-1/2 |
| Table Size (L x W) (In.) | 20-1/2 x 15-1/2 |
| Table Tilt (Deg.) | 90 L/R |
| Weight (Lbs.) | 336.6 |
