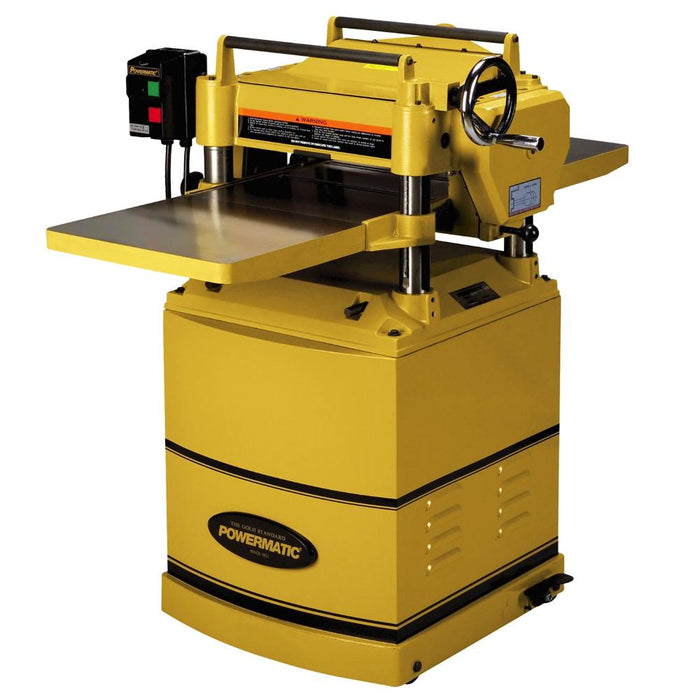

Powermatic 15HH 15" Planer Byrd Shelix Cutterhead 3HP 1PH 230V No DRO - 1791213

$4,499.99 + Free Shipping

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: PWC-1791213
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • The Byrd helical cutterhead with 74 four-sided knife inserts provides smoother, quieter cutting and finer finish than conventional systems

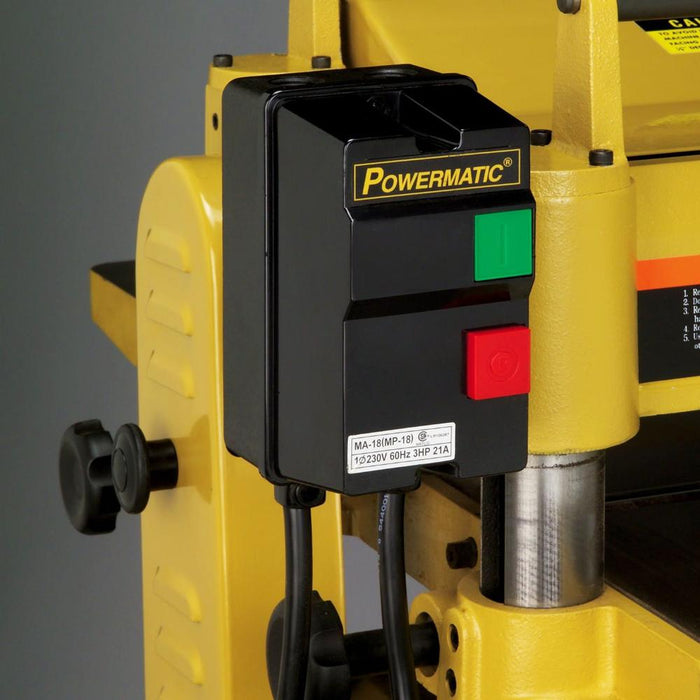

  • Powerful 3HP TEFC motor controlled with a magnetic switch for safety

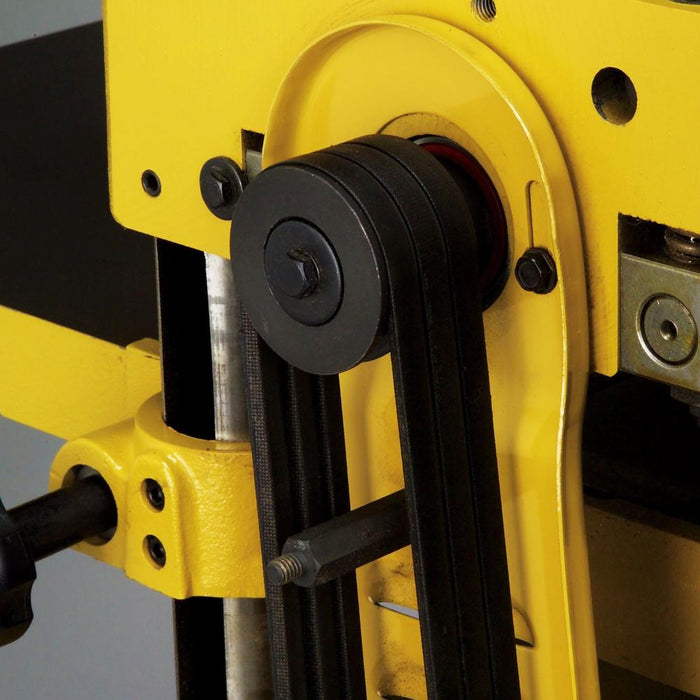

  • Three V-belts transfer maximum power to the cutterhead
  • Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble free operation
  • Large cast iron handwheel positions table quickly and easily
  • Large, precision ground cast iron table and extensions provide maximum workpiece support
  • Two speed gearbox features automatic chain tensioner

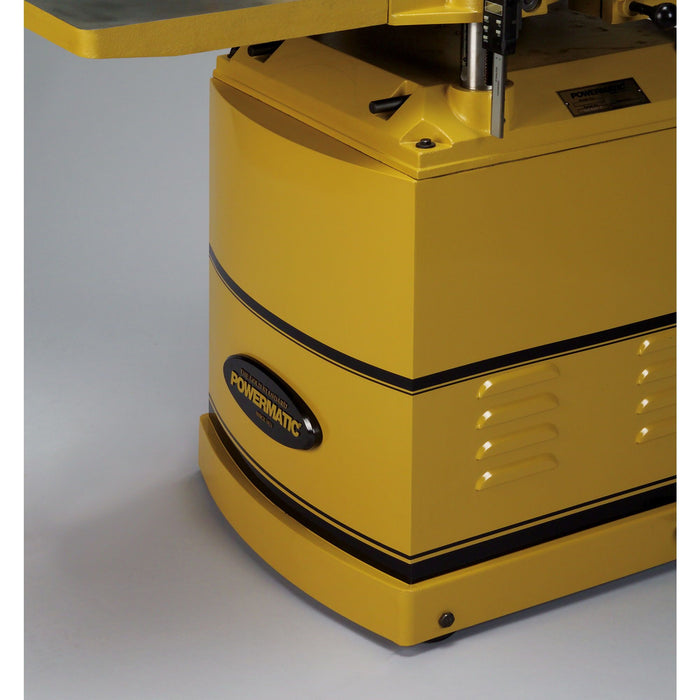

  • One-piece welded steel stand has built-in lockable casters
  • Steel top-mounted return rollers speed repetitive cuts
  • Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
  • Table locks firmly in place, preventing movement during cutting
  • Closed stand with built-in casters
  • 3HP TEFC motor with magnetic controls
What's in The Box
  • Powermatic 15HH Planner, 3HP 1PH 230V Byrd Shelix Head, No Dro
  • Byrdr helical cutterhead with inserts
  • Cast iron extension tables
  • Owner's Manual
Warranty
  • Powermatic warrants every product it sells against manufacturers' defects. If one of our tools needs service or repair, please contact us for further warranty information.
  • 1 Year - Motors, Machine Accessories.
  • 5 Year - Woodworking Machinery
  • 30 Day Satisfaction Guaranteed
Specifications
Model 1791213
UPC 662755915413
Style (Type) Planer
Cutterhead Speed (RPM) 4,500
Cutterhead Diameter (In.) 2-7/8
Number of Knives 74 Four-Sided Inserts
Maximum Depth of Cut (In.) 1/4
Maximum Full Width Depth of Cut (In.) 1/8
Maximum Planing Width (In.) 14-7/8
Maximum Planing Thickness (In.) 6
Minimum Planing Length (In.) 8
Infeed Roller Diameter (In.) 2.07
Segmented Infeed Roller Diameter (In.) 2.07
Outfeed Roller Diameter (In.) 2.07
Bed Rollers Adjustable from Front N.A.
Table Size with Extensions (L x W) (In.) 15 x 48
Table Support 4 Column
Column Diameter (In.) 2-3/16

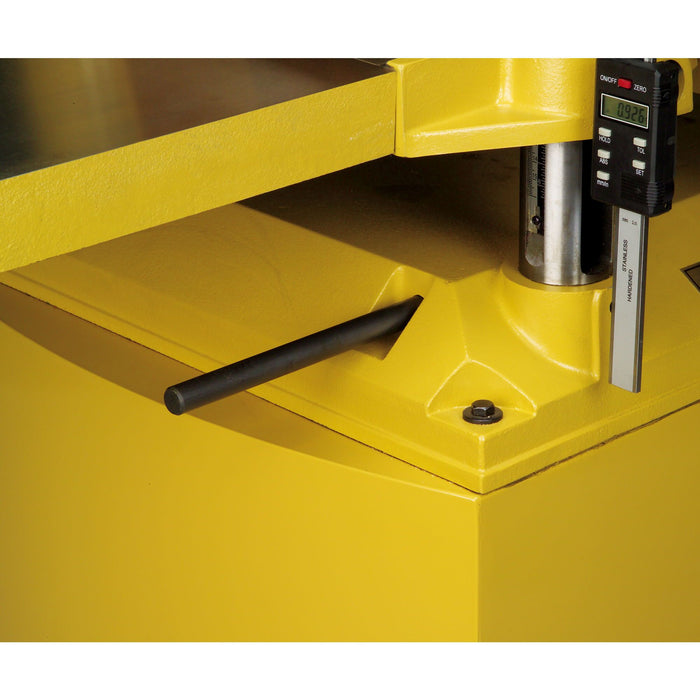

Digital Readout Inch / Metric
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 3
Motor Phase 1
Motor Voltage (V.) 230
