Features
- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 5HP, 1Ph motor with magnetic controls
- Poly-V-belt transfers maximum power to the spindle
- Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
- Spindle height scale
- Starting pins for irregular shaping

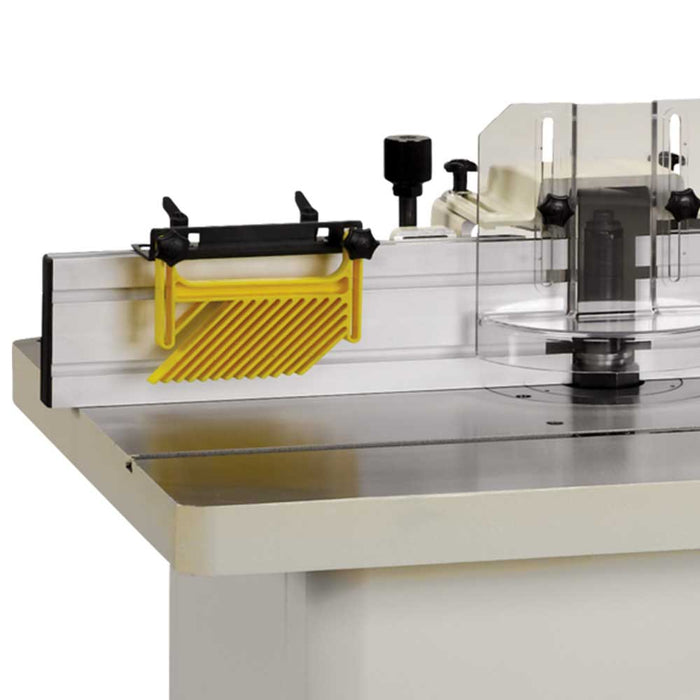

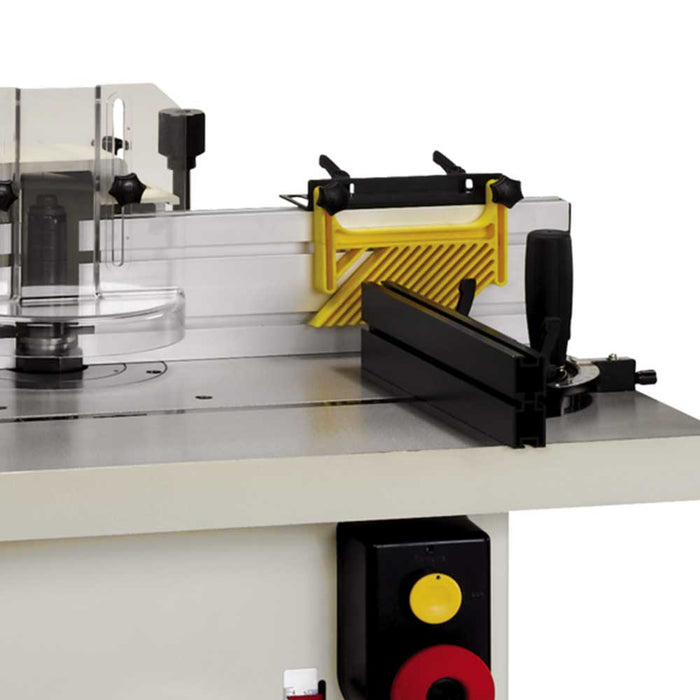

- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs

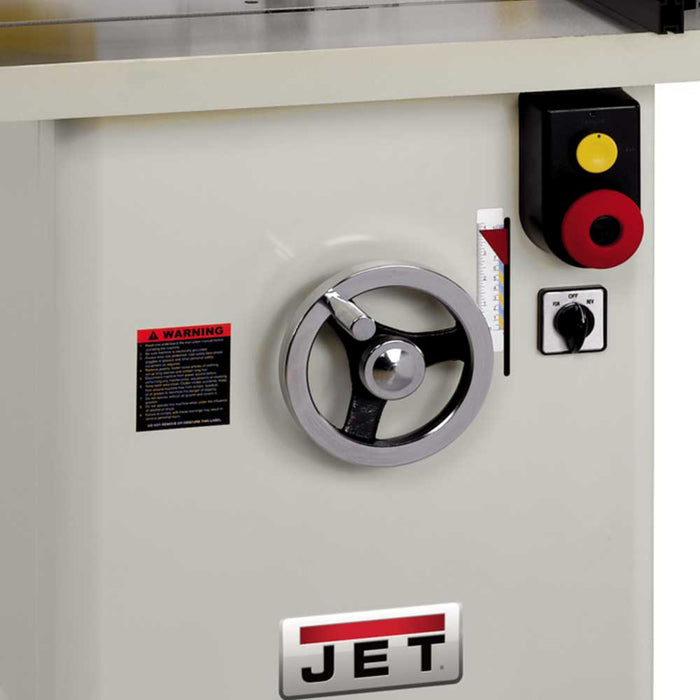

- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- 4" Dust port built into fence for convenient hookup to any dust collection system
- Spindle lock for safe and easy cutter set-up
What's in The Box

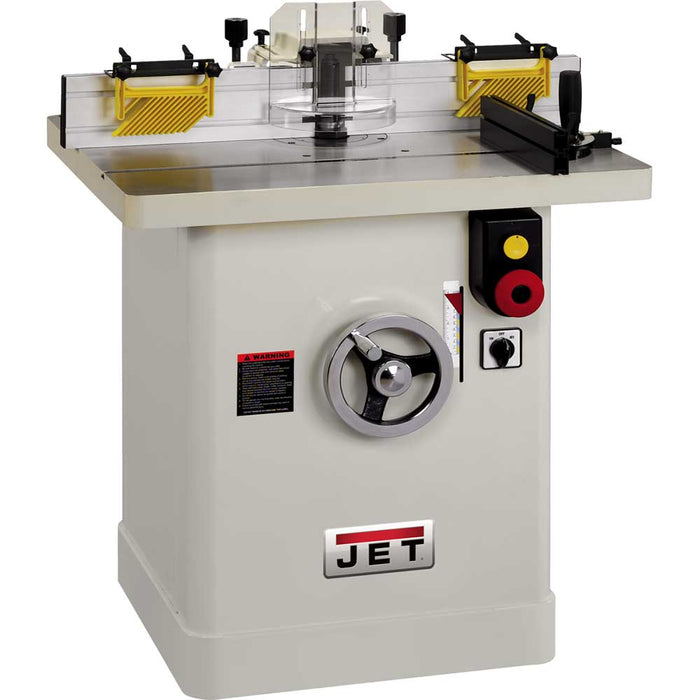

- JWS-35X5-1 Industrial Shaper 5HP, 1Ph 708326
- Owner's Manual
Warranty
- JET Red Assurance 2-Year Warranty
- 30 Day Satisfaction Guaranteed
Specifications
Spindle Speed (RPM) | 4000/6000/8000/10000 |
Maximum Spindle Diameter (In.) | 1-1/4 |
Spindles Included | 1-1/4" |
Spindle Size Under Nut (In.) | 4 |
Spindle Travel (In.) | 4 |
Reversible | Yes |
Maximum Diameter Cutter Above Table (In.) | 7-1/2 |
Maximum Diameter Cutter Below Table (In.) | 6 |
Table Opening Diameter (In.) | 6-19/64 |
Table Inserts (In.) | 2 |
Table Insert Opening Diameter (In.) | 2-9/16, 4-5/16 |
Table Size (L x W) (In.) | 32-1/4 x 26-3/4 |
Table T-Slot (In.) | 3/4 x 3/8 |
Table Height from Floor (In.) | 33-1/4 |
Fence Size (L x H) (In.) | 16 x 4-3/4 |
Fence Travel (Major and Minor) (In.) | 4, 1 |
Dust Port Outside Diameter (In.) | 4 |
Dust Collection Minimum CFM Required (CFM) | 600 |
Electrical Controls | Yes |
Motor Power (HP) | 5 |
Motor Phase (PH) | 1 |
Motor Voltage (V.) | 230 |
Prewired Voltage (V.) | 230 |
Motor Amps | 17 |
