Features
- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 3HP, 1Ph motor with magnetic controls
- Poly-V-belt transfers maximum power to the spindle
- Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
- Spindle height scale
- Starting pins for irregular shaping

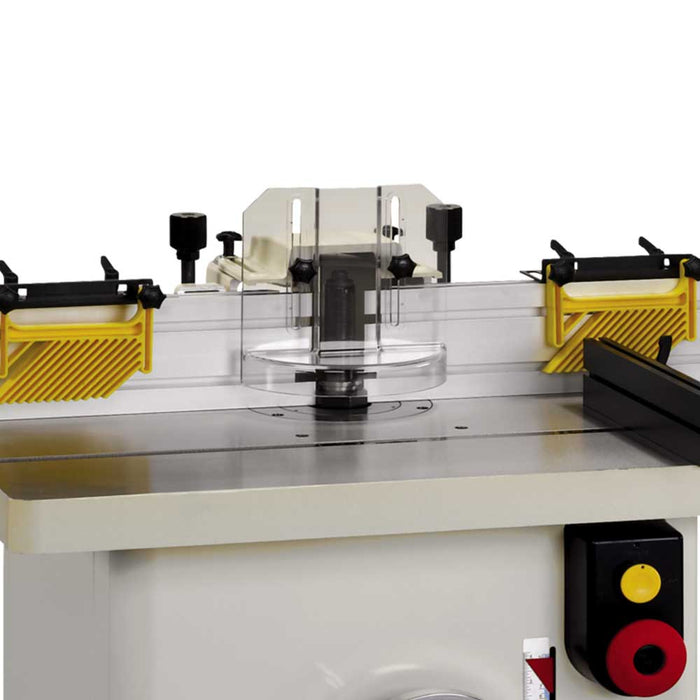

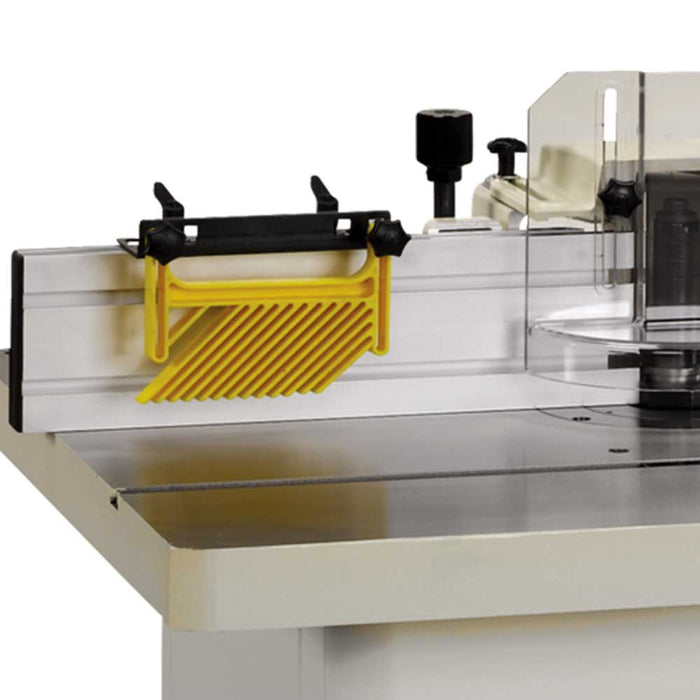

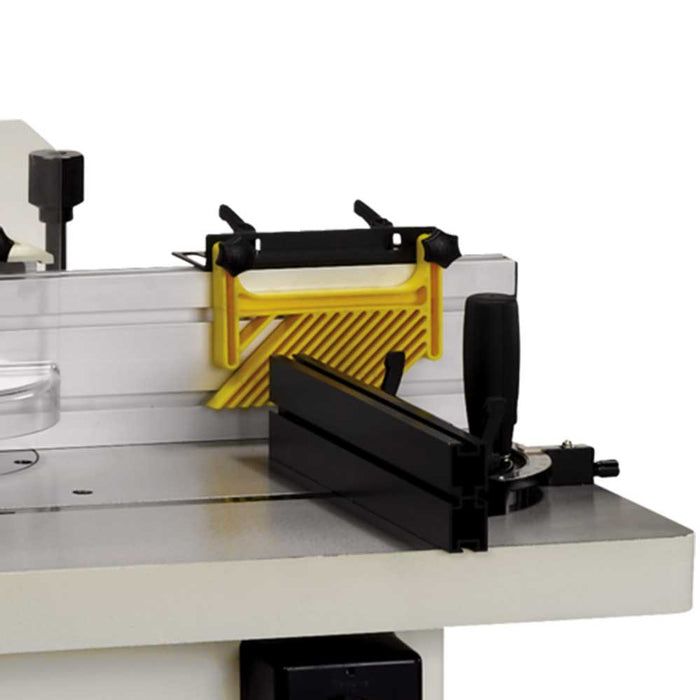

- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs

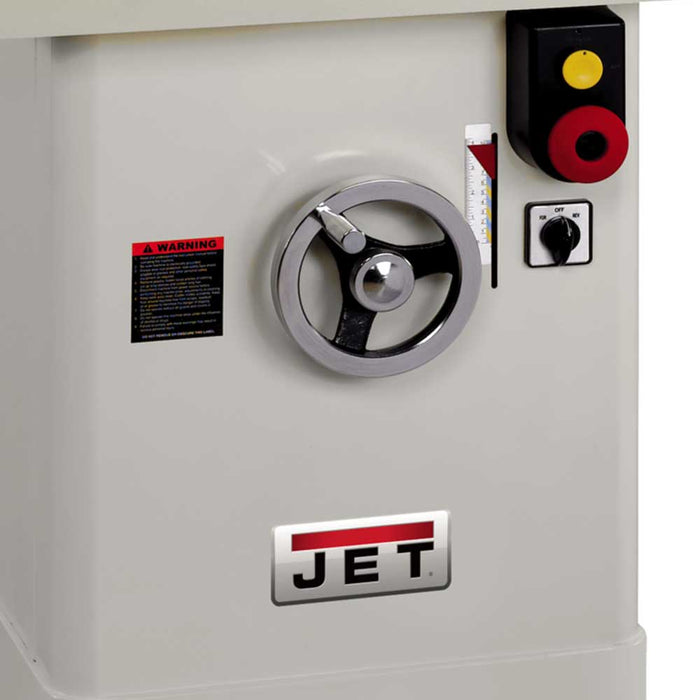

- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- 4" Dust port built into fence for convenient hookup to any dust collection system
- Spindle lock for safe and easy cutter set-up
What's in The Box

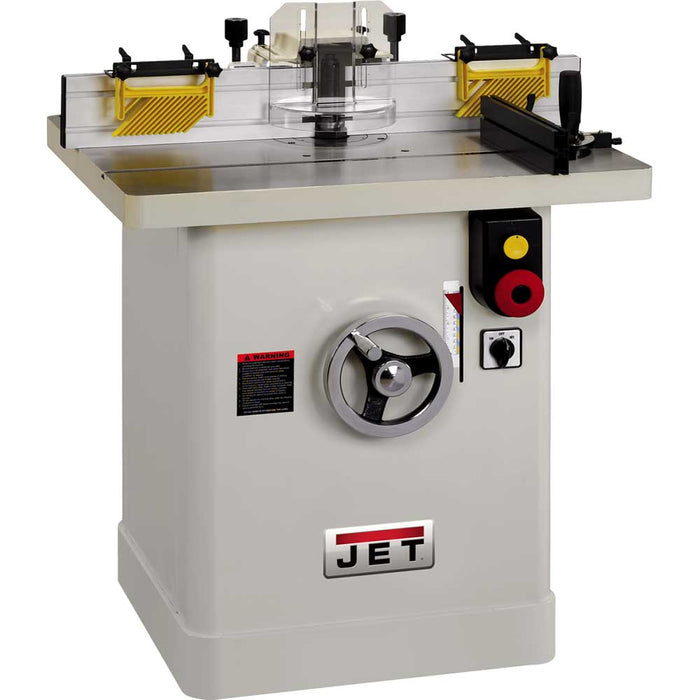

- JWS-35X3-1 Shaper 3HP, 1Ph 708323
- Owner's Manual
Warranty
- JET Red Assurance 2-Year Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Spindle Speed (RPM) | 4000/6000/8000/10000 |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Spindles Included | 1-1/4" |
| Spindle Size Under Nut (In.) | 4 |
| Spindle Travel (In.) | 4 |
| Reversible | Yes |
| Maximum Diameter Cutter Above Table (In.) | 7-1/2 |
| Maximum Diameter Cutter Below Table (In.) | 6 |
| Table Opening Diameter (In.) | 6-19/64 |
| Table Inserts (In.) | 2 |
| Table Insert Opening Diameter (In.) | 2-9/16, 4-5/16 |
| Table Size (L x W) (In.) | 32-1/4 x 26-3/4 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Table Height from Floor (In.) | 33-1/4 |
| Fence Size (L x H) (In.) | 16 x 4-3/4 |
| Fence Travel (Major and Minor) (In.) | 4, 1 |
| Dust Port Outside Diameter (In.) | 4 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Electrical Controls | Yes |
| Motor Power (HP) | 3 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 14 |
