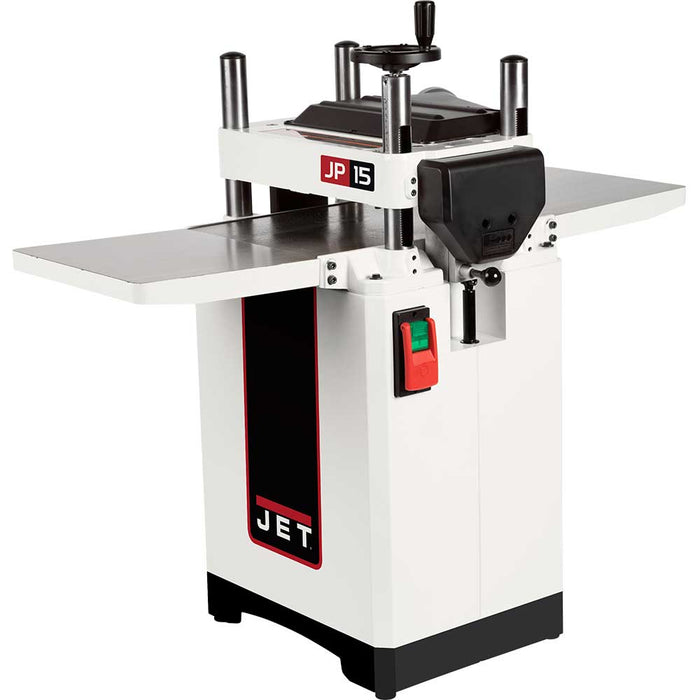

JET JWP-15BHH 240 Volt 15 Inch Floorstanding Helical Cutterhead Planer - 722155
by Jet
$3,199.99
+ Free Shipping
Condition: New
SKU: JET-722155
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Innovative JET - Precision Air Strut System (PASS) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
- Helical Cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
- Maximum depth of cut 1/8, 6 cutting height and 15 width capacity
- Large cast Iron precision ground infeed/outfeed tables provide support for large work pieces

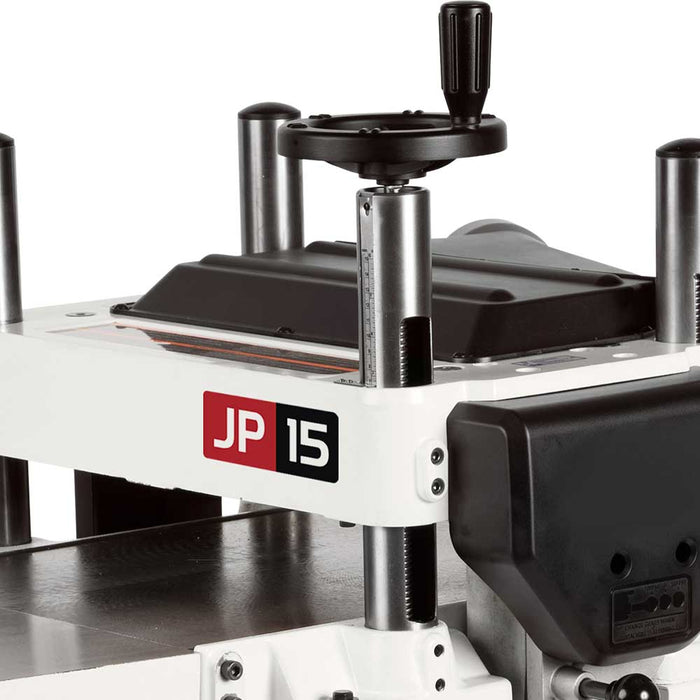

- Large hand wheel with positive gear drive easily moves the head to the desired board thickness

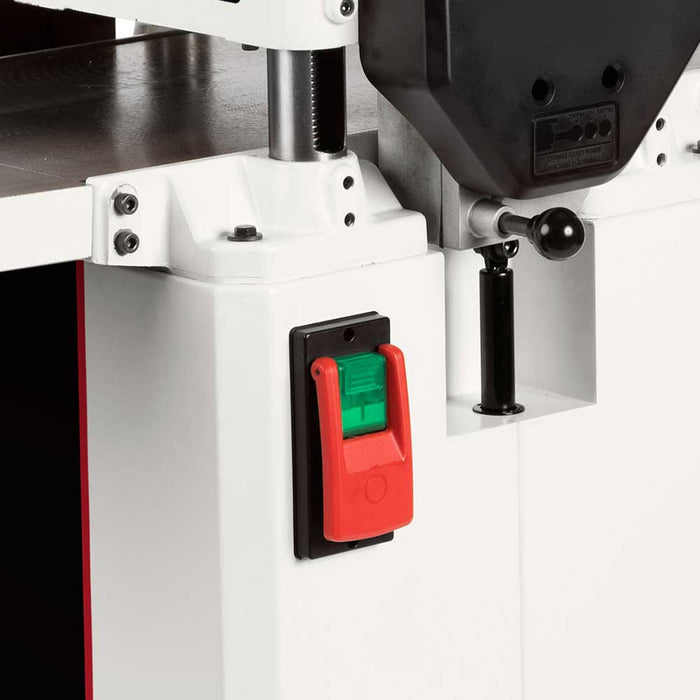

- Magnetic Switch with green safety light illuminates when powered
- 4 Dust Port hooks up to dust management system and helps keep shop clean
What's in The Box
- 240-Volt 15-Inch Helical Cutterhead Planer
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 722155 |
| Model | JWP-15BHH |
| Brand | Jet |
| Voltage | 240V |
| Amperage | 15A |
| Horsepower | 3 Hp |
| Phase | 1 |
| Cutterhead Diameter | 2-5/8 in. |
| Cutterhead Speed | 5,200 Rpm |
| Number of Knives | 48 |
| Max. Depth of Cut | 1/8 in. |
| Max. Full Width Depth of Cut | 1/8 in. |
| Max. Planing Width | 15 in. |
| Max. Planing Thickness | 6 in. |
| Min. Planing Length | 5.6 in. |
| Feed Rate | 16 and 20 Fpm |
| Number of Speeds | 2 |
| Type of Cutterhead | Helical Head |
| Style (Type) | Floorstanding Model |
| Dust Port Outside Diameter | 4 in. |
| Table Size (L x W) | 15 in. x 46.5 in. |
| Shipping Weight | 352 lbs. |
