Condition: New
SKU: JET-354231
This item ships via Freight. Appointment is required for delivery. Click for details.Features
- Steel Column
- Heavy Duty Casted Iron Design

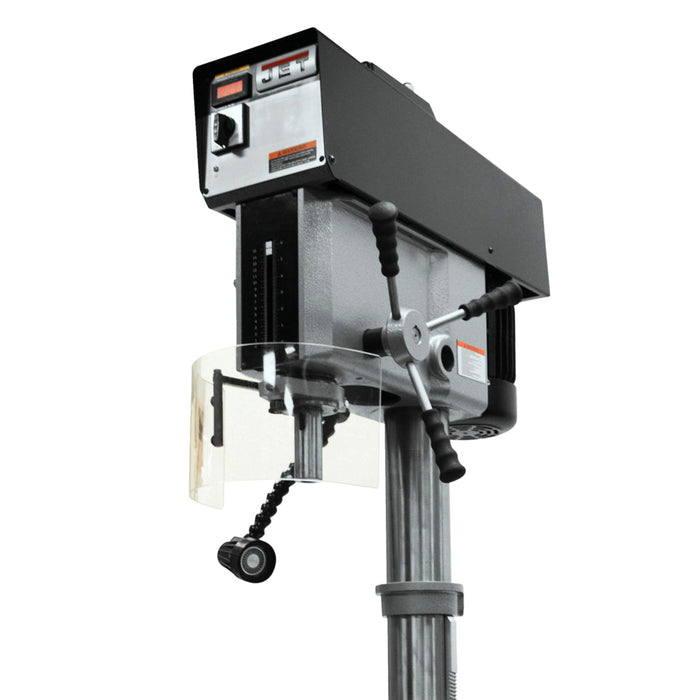

- Head is massively constructed for more accuracy and rigidity
- Large Precision Ground T-slot Production Table for easy set ups
- Massive 3-Inch Quill Diameter
- Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
- LED Machine Lamp
- Spindle Guard
- Variable Spindle Speeds from 65 - 2,000 RPM's
- Front Mounted LED Spindle RPM Readout
- Front Mounted Postitive Control Depth Stop
- Table rotates 360 Degree around the column
- Machine T-Slotted base
- Large Hand Grips designed with the Users comfort in mind
- Spindle Safety Guard
- LED Machine Lamp
What's in The Box

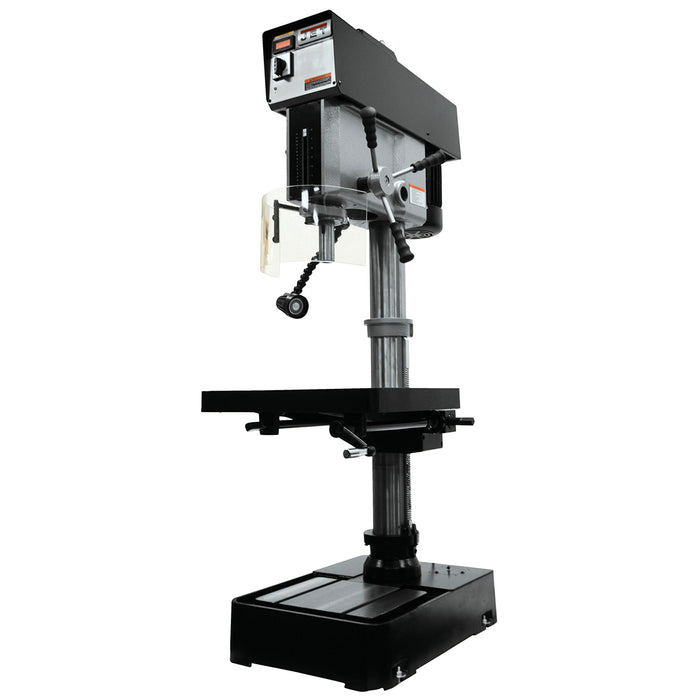

- 20-Inch 2 HP 3-Phase Steel Variable Speed Drill Press - 354231
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 354231 |
| Model | JDP-20VS-3 |
| Brand | Jet |
| Voltage | 230/460V |
| Motor (HP) | 2 |
| Phase | 3 |
| Style (Type) | Variable Speed |
| Drills to Center of Circle (in) | 20 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-3/8 |
| Distance Column to Spindle (In.) | 10 7/16 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 300 - 2,000 |
| Column Diameter (In.) | 4-1/2 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Table Size (L x W) (In.) | 22 x 18-3/4 |
| Table Travel (In.) | 20 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| T-Slot Centers (In.) | 7-7/16 |
| Work Table Weight Capacity (Lbs.) | 154 |
| Base Dimensions (In.) | 27 x 19 |
| Base Slots Number and Size (In.) | 2 and 5/8 |
| Weight (Lbs.) | 780 |
| Overall Dimensions (L x W x H) (In.) | 38.18 x 27.16 x 79.52 |
