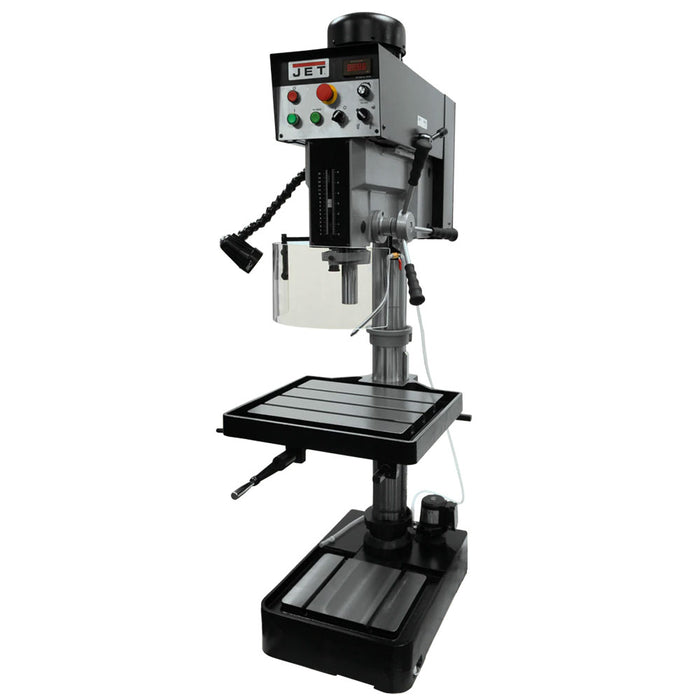

JET JDP-20EVST-230 230V 2 HP 1-1/2" Variable Metalworking Tapping Drill Press

by Jet
Out of Stock
- +

Condition: New
SKU: JET-354225
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

  • Heavy-duty steel column for increased precision and rigidity
  • Heavy-Duty cast head for more accuracy and rigidity
  • Large Precision Ground T-slot Production Table for easy setups
  • Latest AC Inverter Variable Speed Technology
  • CSA Coolant System
  • The spindle is supported by high-quality ball bearings
  • CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
  • LED Machine Lamp
  • Spindle Guard
  • Emergency Stop
  • The spindle is supported by high-quality ball bearings
  • Variable Spindle Speeds from 65 - 2,000 RPM's
  • High Torque at all speeds both forward and reverse
  • Continuous Speed Adjustment while in operation
  • Front Mounted LED Spindle RPM Readout
  • Forward and Reverse for Tapping
  • Front Mounted Positive Control Depth Stop
  • Large Hand Grips designed with the Users comfort in mind
What's in The Box
  • Tapping Drill Press
  • Owner's Manual
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
SKU 354225
Brand Jet
Volts 230
Horsepower 2
Phase 3
Style Variable Speed
Drills to Center of Circle 20 in
Drilling Capacity Cast iron 1-1/2 in
Drilling Capacity Mild Steel 1-3/8 in
Tapping Capacity Cast Iron 7/8 in
Tapping Capacity Mild Steel 3/4 in
Column Diameter 4-1/2 in
Distance Column to Spindle 10-7/16 in
Number of Spindle Speeds Variable
Range of Spindle Speeds (RPM) 65-540 /245- 2,000
Column Diameter 4-1/2 in
Spindle Taper (in x TPI) MT-3
Spindle Travel 6 in
Spindle Distance to Base 44-1/2 in
Spindle Distance to Table (Max) 30-1/4 in
Table Travel 20 in
Table T-Slots, Number and Size 2 Slots for 5/8 bolts
T-Slots Number and Size 3 and 5/8 in
T-Slot Centers 7-7/16 in
Table Size (Lx W) 22 x 18-3/4 in
Work Table Weight Capacity 154 lbs
Base Dimensions 27 x 19 in
Base Slots Number and Size 2 and 5/8 in
Dimensions (L x W x H) 38.18 x 27.16 x 79.52 in
Weight 792 lbs
