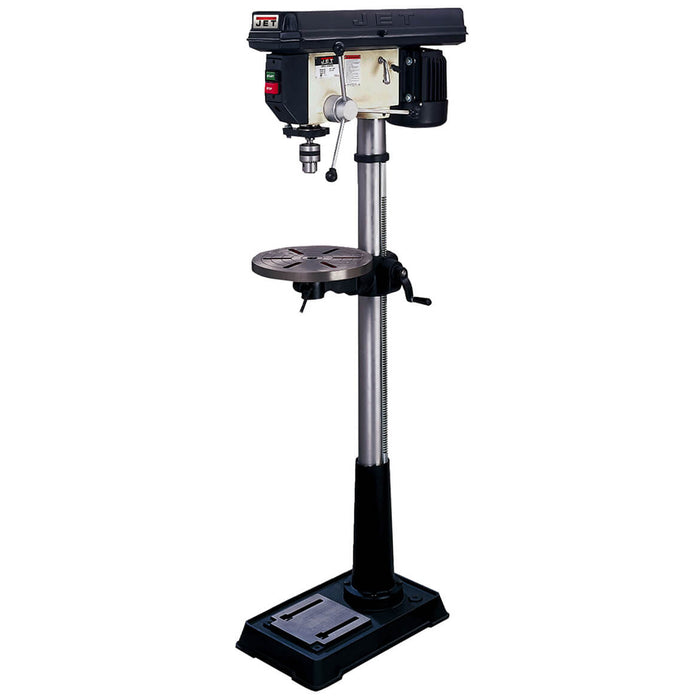

JET JDP-17MF 3/4-Hp 115/230V 16-1/2" Floor Drill Press w/ Quick Release Crank
by Jet
$1,099.99
+ Free Shipping
Condition: New
SKU: JET-354169
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- 16 speeds lets you choose the best speed for the job
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- "X" pattern mounting grooves in table allow mounting a fence when table is in reverse position
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Spindle has high-quality ball bearing construction for long life
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in worklight (bulb not included) provides additional visibility of your work
What's in The Box
- JET JDP-17MF, 16-1/2" Floor Mount Drill Press, 3/4HP 1PH 115/230V
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 354169 |
| UPC | 662755104114 |
| Style (Type) | Floorstanding Model |
| Swing (In.) | 16-1/2 |
| Spindle Travel (In.) | 4-3/8 |
| Number of Spindle Speeds | 16 |
| Spindle Taper | MT2 |
| Spindle Speed Range (RPM) | 200 - 3630 |
| Spindle Distance to Table (Max.) (In.) | 29-1/8 |
| Table Size (L x W) (In.) | 13-3/4 |
| Table Tilt (Deg.) | 45 R and L |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-1/8 |
| Base Size (In.) | 11-1/8 x 19-5/8 |
| Motor Power (HP) | 3/4 |
| Motor Phase (PH) | 1 |
| Motor Amps | 9/4.5 |
| Weight (Lbs.) | 209 |
