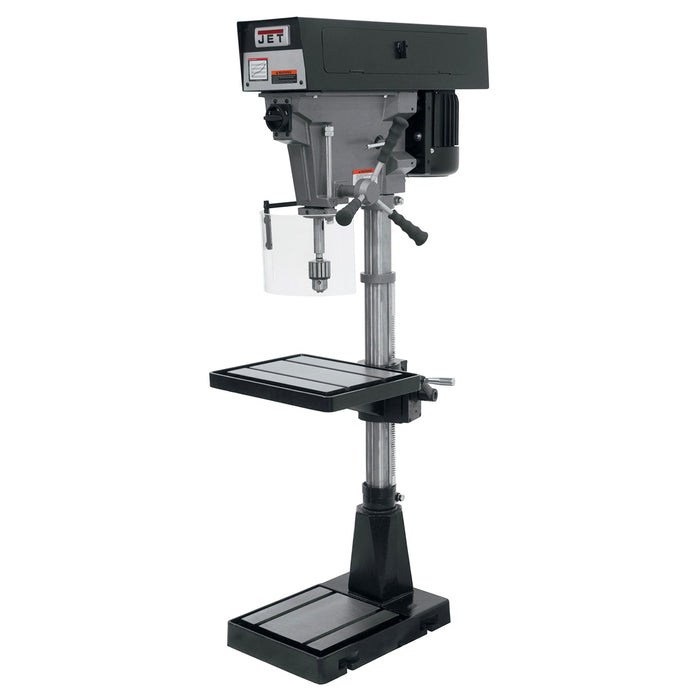

JET J-A3816 1-Hp 115/230V 15" Heavy Duty 6-Speed Floor Model Drill Press

by Jet
Out of Stock
- +

Condition: New
SKU: JET-354500
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

  • Constructed to provide a solid base for drilling
  • 6-Spindle Speeds from 375 to 5,000 RPM
  • Larger quill provides greater accuracy
  • Large production table
  • 3" column for maximum head support
  • 1/2" drill chuck and arbor included
  • Drill chuck guard
What's in The Box
  • JET J-A3816, 15" 6-Speed Floor Model Drill Press 115/230V 1PH
  • Owner's Manual
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Model 354500
UPC 662756092670
Style (Type) Variable
Drills to Center of Circle (in) 15
Drilling Capacity Cast Iron (In.) 5/8
Drilling Capacity Mild Steel (In.) 1/2
Distance Column to Spindle (In.) 15
Number of Spindle Speeds 6
Range of Spindle Speeds (RPM) 375, 625, 1,125, 1,950, 3,400, 5,000
Column Diameter (In.) 3
Spindle Taper (In. x TPI) MT-2
Spindle Travel (In.) 6
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 25-3/4
Table Size (L x W) (In.) 15 x 18
Table Travel (In.) 16-3/4
T-Slots Number and Size (In.) 2, 1/2
T-Slot Centers (In.) 5-5/16
Work Table Weight Capacity (Lbs.) 90
Base Dimensions (In.) 20-7/8 x 14-3/16 x 3-1/8
Base Work Table (In.) 12-1/8 x 11-13/16
Base Slots Number and Size (In.) 2, 1/2
Motor (HP) 1 HP, 115/230V, 1 Ph
Overall Dimensions (L x W x H) (In.) 30 x 20 x 71
Weight (Lbs.) 394
