Features
- Constructed to provide a solid base for drilling
- The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
- Cast Iron head
- Large ground steel column for maximum head and table support
- Large quill allows greater accuracy
- 3-1/8 stroke for deep hole applications
- Accurate depth stop for precice hole depths

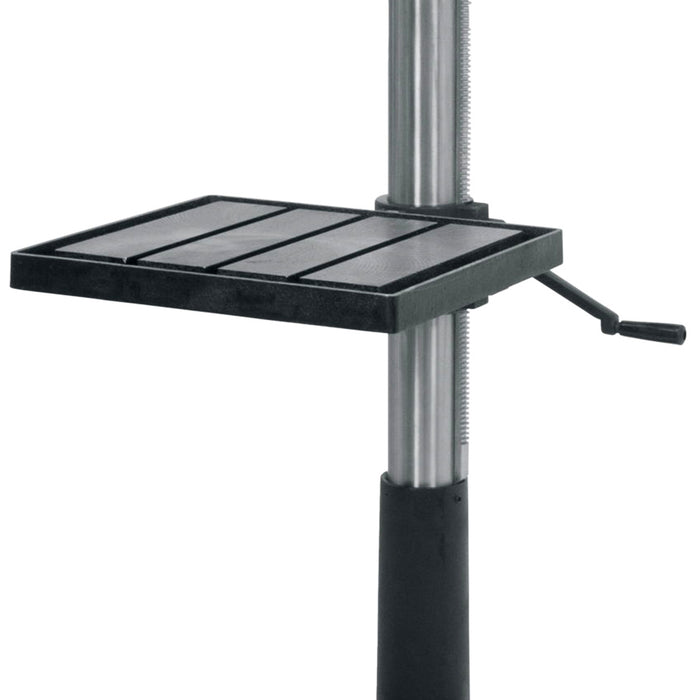

- Table tilts 45 degree
- 5/8 drill chuck and arbor
- Telescoping safety spindle guard
What's in The Box

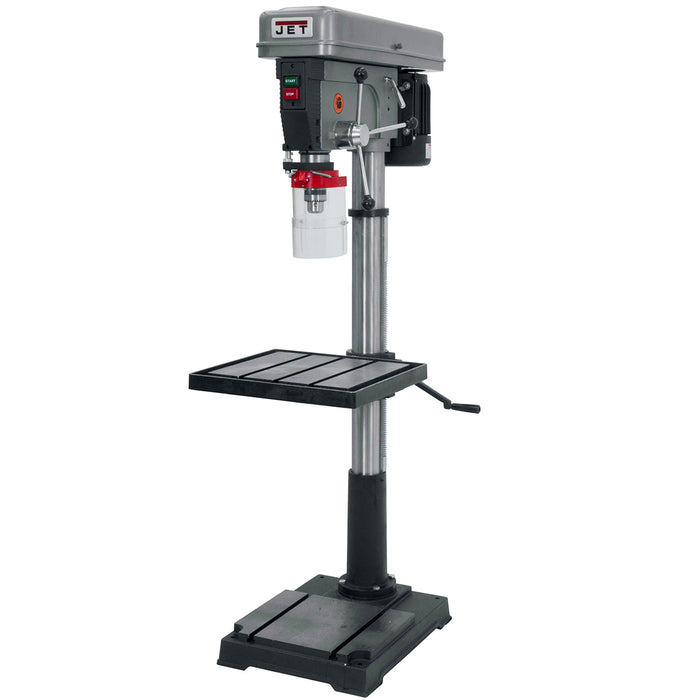

- JET J-2550, 20 Floor Model Drill Press 115V 1PH
Warranty
- JET Red Assurance 2-Year Warranty
- JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
- 30 Day Satisfaction Guaranteed
Specifications
| Model | 354402 |
| UPC | 662756092663 |
| Style (Type) | Belt Drive |
| Drills to Center of Circle (in) | 20 |
| Drilling Capacity Cast Iron (In.) | 3/4 |
| Drilling Capacity Mild Steel (In.) | 5/8 |
| Distance Column to Spindle (In.) | 10 |
| Number of Spindle Speeds | 12 |
| Range of Spindle Speeds (RPM) | 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200 |
| Column Diameter (In.) | 3-5/8 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 4-3/4 |
| Spindle Distance to Base (In.) | 43-1/2 |
| Spindle Distance to Table (Max.) (In.) | 24 |
| Table Size (L x W) (In.) | 18-11/16 x 16-3/4 |
| Table Travel (In.) | 21-1/2 |
| T-Slots Number and Size (In.) | 3, 1/2 |
| T-Slot Centers (In.) | 4 |
| Work Table Weight Capacity (Lbs.) | 66 |
| Base Dimensions (In.) | 22-3/4 x 17-3/4 |
| Base Slots Number and Size (In.) | 2, 5/8 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 33-1/2 x 18-1/2 x 67 |
| Weight (Lbs.) | 304 |
