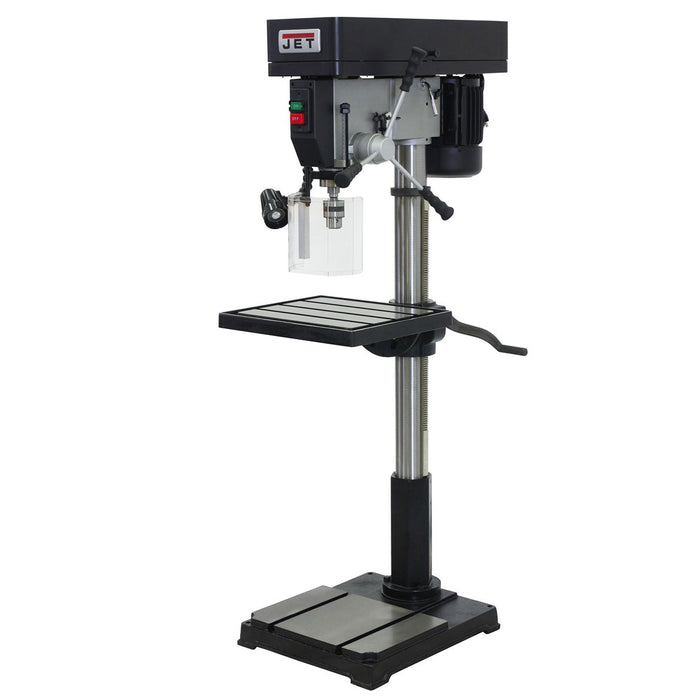

JET IDP-22 1-Hp 115/230V 22" Heavy Duty Industrial Floor Model Drill Press

by Jet
$1,999.00


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
Express checkout with and plus more available at checkout.

Condition: New
SKU: JET-354301
This item ships via Freight. Appointment is required for delivery. Click for details.
Features
  • For added Safety, the IDP-22, 22" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
  • Spindle is supported by high quality ball bearings
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Large Hand Grips designed with the users comfort in mind

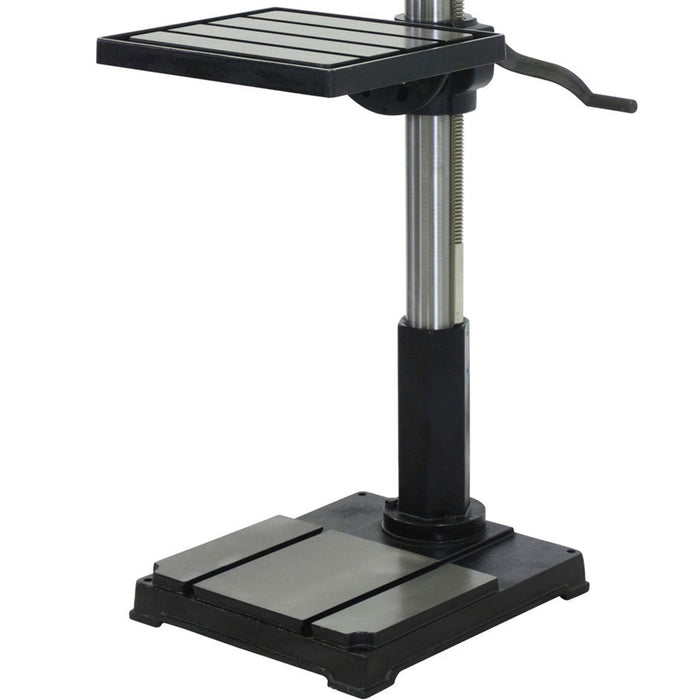

  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key attach to the side of the drill press always within reach of the operator
  • On/off switch located on front of the drill press head
  • Heavy Duty construction
  • Cast Iron table and base
  • Table ground for accuracy
  • STANDARD EQUIPMENT
  • LED Machine Lamp
  • Ground Table
  • Spindle Safety Guard
  • Drill Chuck and Key
What's in The Box
  • 22-Inch Industrial Floor Drill Press
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model IDP-22
Sku 354301
Brand Jewt
Style (Type) Belt Drive
Drills to Center of Circle (in) 22
Drilling Capacity Cast Iron (in.) 1-1/4
Drilling Capacity Mild Steel (in.) 1
Tapping Capacity Mild Steel (in.) 1
Distance Column to Spindle (in.) 10-7/8
Number of Spindle Speeds 12
Range of Spindle Speeds (Rpm) 175 - 3,050
Column Diameter (in.) 3-5/8
Spindle Taper (in. x Tpi) MT-3
Spindle Travel (in.) 4-13/16
Spindle Distance to Base (in.) 48-1/2
Spindle Distance to Table (Max.) (in.) 28
Table Size (L x W) (in.) 18-5/8 x 16-1/8
T-Slots Number and Size (in.) 2 and 5/8
T-Slot Centers (in.) 3/4
Work Table Weight Capacity (lbs.) 176
Base Dimensions (in.) 22-5/8 x 19-7/16
Base Work Table (in.) 21-1/2 x 18-5/16
Base Slots Number and Size (in.) 2 and 5/8
Motor (Hp) 1-1/2
Voltage 115/230
Phase Single
Weight (lbs.) 364
