Features

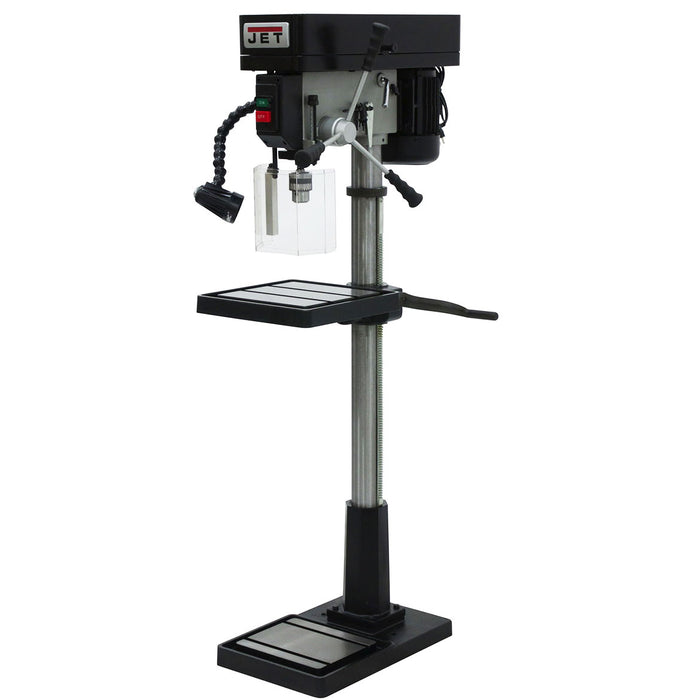

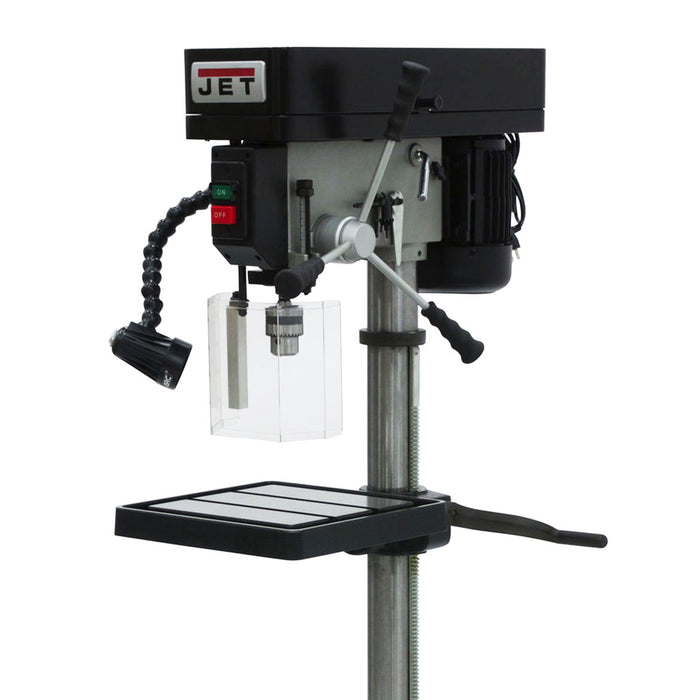

- For added Safety, the IDP-17, 17" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
- Spindle is supported by high quality ball bearings
- Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
- Large Hand Grips designed with the users comfort in mind
- Rotating, 45-Degree tilting, crank-operated worktable with quick release clamp
- A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- On/off switch located on front of the drill press head
- Heavy Duty construction

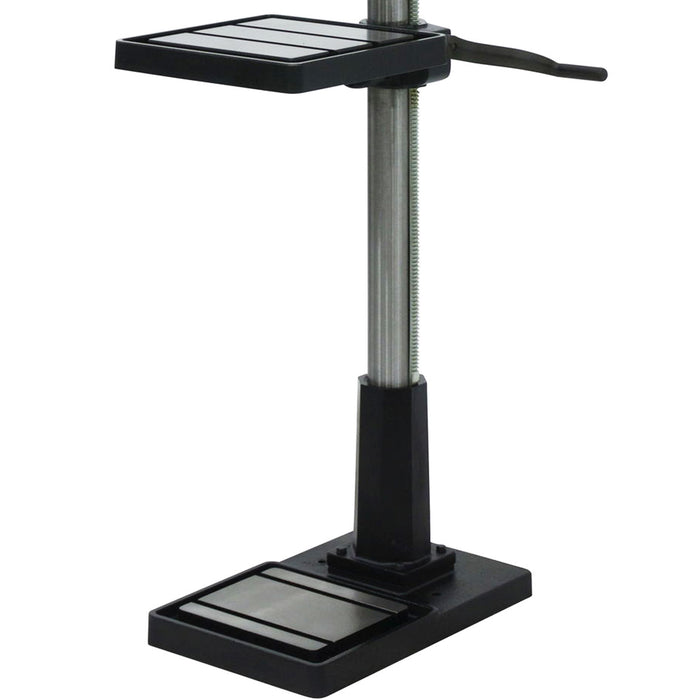

- Cast Iron table and base
- Table ground for accuracy
- STANDARD EQUIPMENT
- LED Machine Lamp
- Ground Table
- Spindle Safety Guard
- Drill Chuck and Key
What's in The Box
- 17-Inch Industrial Floor Drill Press
- Owner's Manual
Warranty
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
Model | IDP-17 |
Sku | 354300 |
Brand | Jet |
Style (Type) | Belt Drive |
Drills to Center of Circle (in) | 17 |
Drilling Capacity Cast Iron (in.) | 3/4 |
Drilling Capacity Mild Steel (in.) | 5/8 |
Distance Column to Spindle (in.) | 8-3/8 |
Number of Spindle Speeds | 12 |
Range of Spindle Speeds (Rpm) | 350 - 2,800 |
Spindle Taper (in. x tpi) | MT-2 |
Spindle Travel (in.) | 3-5/16 |
Spindle Distance to Base (in.) | 50 |
Spindle Distance to Table (Max.) (in.) | 30-1/2 |
Table Size (L x W) (in.) | 14 x 14 |
T-Slots Number and Size (in.) | 2 and 1/2 |
T-Slot Centers (in.) | 9/16 |
Base Dimensions (in.) | 21-3/4 x 13-3/4 |
Base Work Table (in.) | 16-15/16 x 10-13/16 |
Base Slots Number and Size (in.) | 2 and 1/2 |
Motor (Hp) | 1 |
Voltage | 115/230 |
Phase | Single |
Weight (Lbs.) | 276 |
