Condition: New
SKU: JET-321357A
This item ships via Freight. Appointment is required for delivery. Click for details.Features
- One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
- Enclosed gearbox design provides smooth, quiet operation
- Fast, easy speed changes
- Hardened and ground gears are featured in the headstock and gearbox
- D1-4 spindle is precision ground for accuracy and supperted by high quality tapered roller bearings
- Headstock is constantly oiled during operation
- Gear box gives wide inch threading and feed capabilities with no gear changes
- V-way bed is induction hardened and ground
- Gap bed section provided for large diameter work
- Independent leadscrew and feed rod
- Spindle actuation control is apron mounted
- Compound and cross slide have backlash elimination
- Adjustable gibs are incorporated in the carriage and slideways
- Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
- Oil pan included
- Tolerance test certificate included
- 6" 3-jaw direct mount chuck with top reversing jaws
- 8" 4-jaw chuck
- 12" face plate
- Steady and follow rest
- Four-way tool post
- Metric change gear
- Splash guard
- Centers and headstock center sleeve
- Threading dial
- Tool box with tools
What's in The Box

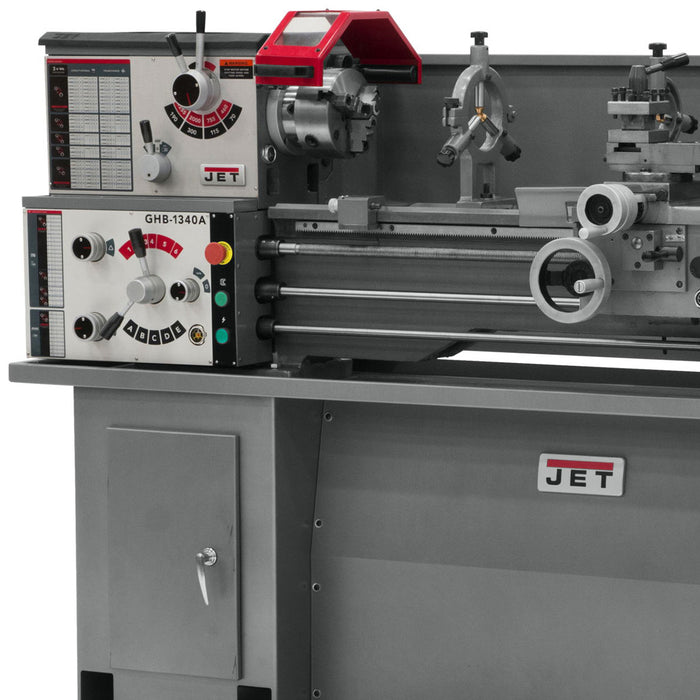

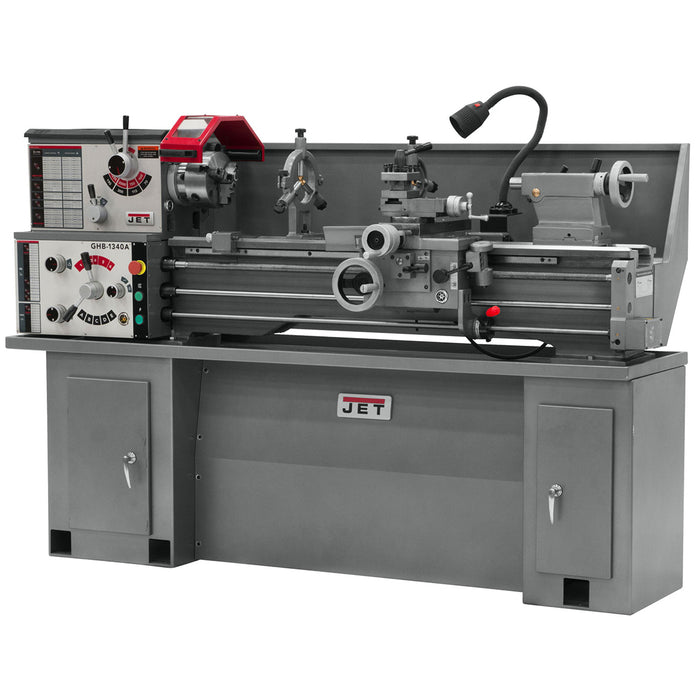

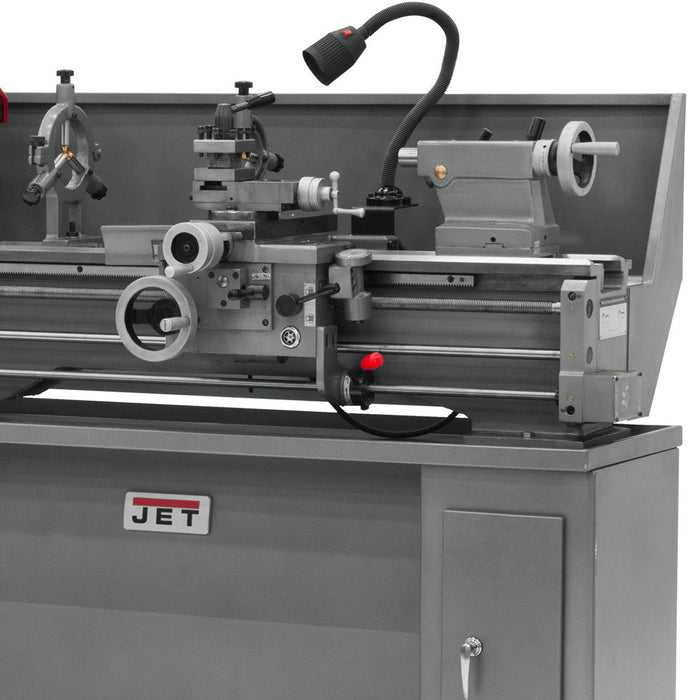

- GHB-1340A, Gear Head Bench Lathe 321357A
- Owner's Manual
Warranty
- JET Red Assurance 2-Year Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Size | 13 x 40 |
| Swing Over Bed (In.) | 13 |
| Swing Over Cross Slide (In.) | 7-25/32 |
| Swing Through Gap (In.) | 18-3/4 |
| Length of Gap (In.) | 8 |
| Distance Between Centers (In.) | 43 |
| Spindle Bore (In.) | 1-3/8 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Number of Spindle Speeds | 8 |
| Range of Spindle Speeds (RPM) | 70 - 2,000 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Range of Longitudinal Feeds (IPR) | .0018 - .0374 |
| Range of Cross Feeds (IPR) | .0006 - .0130 |
| Number of Inch Threads | 38 |
| Range of Inch Threads (TPI) | 3-1/2 - 80 |
| Number of Metric Threads | 23 |
| Range of Metric Threads | .45 - 10 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Compound Slide Travel (In.) | 2-11/16 |
| Cross Slide Travel (In.) | 6-5/16 |
| Carriage Travel (In.) | 35 |
| Tailstock Spindle Travel (In.) | 3-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Follow Rest Capacity (In.) | 2-3/8 |
| Steady Rest Capacity (In.) | 2-3/4 |
| Width of Bed (In.) | 7-3/8 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Prewired (V.) | 230 |
| Weight (Lbs.) | 1,154 |
| Overall Dimensions (L x W x H) (In.) | 79 x 28-1/2 x 30 |
| Drive | Geared Head |
| Style (Type) | Bench - Geared Head |
