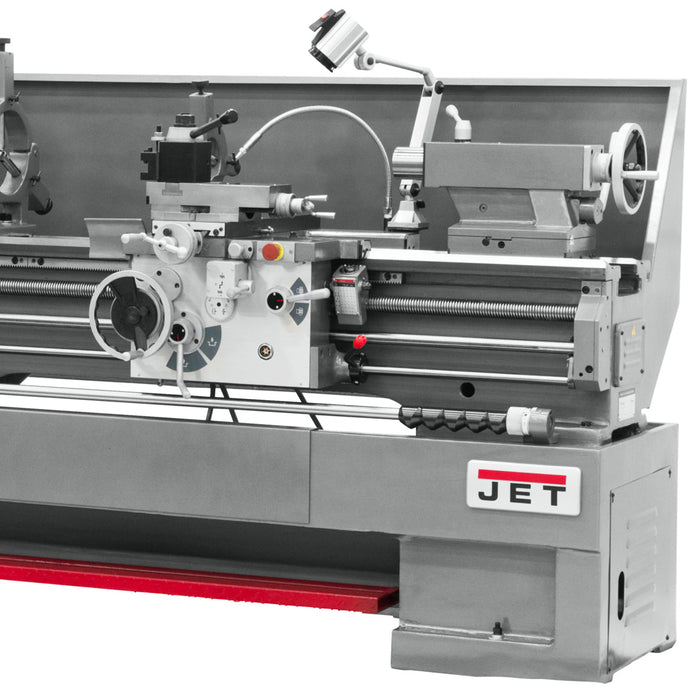

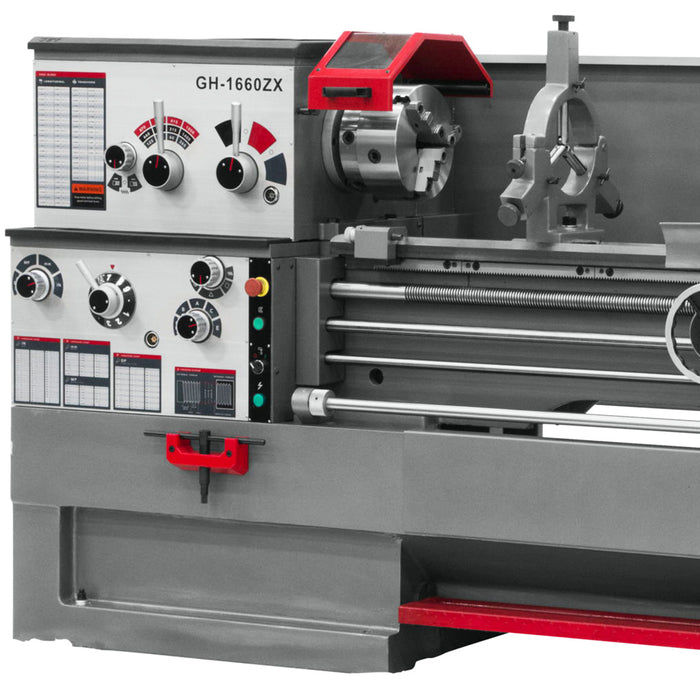

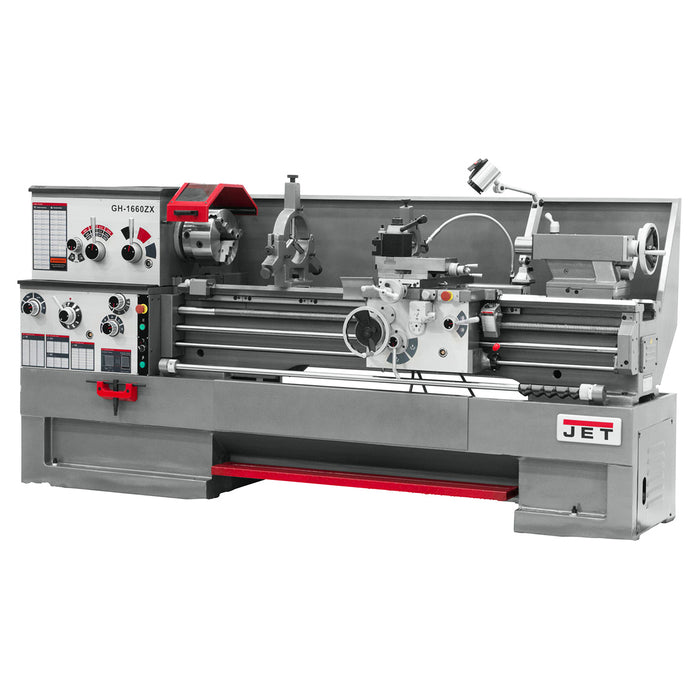

JET GH-1660ZX 7-1/2-Hp 230/460V 3-1/8" Durable Spindle Bore Geared Head Lathe

by Jet
$21,499.00


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
Express checkout with and plus more available at checkout.

Condition: New
SKU: JET-321940
This item ships via Freight. Appointment is required for delivery. Click for details.
Features
  • 3-1/8” bore spindle is supported by two tapered and one ball bearings
  • Chrome molybdenum headstock gears are hardened, ground and shaved
  • Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
  • T-slotted compound slide featuring four-way tool post
  • One piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
  • Removable gap allows large diameter work
  • Five position automatic carriage stop increases productivity
  • Attractive chrome levers, dials and knobs complete this impressive package
  • Meehanite Castings
  • Standard Equipment
  • 10” 3-jaw scroll chuck with top reversing jaws
  • 12” 4-jaw independent chuck
  • 12” face plate
  • Four-way tool post
  • Follow rest
  • Large capacity steady rest
  • Fully integrated coolant system
  • Full length splash guard and coolant return
  • Large easy to use foot brake
  • Articulating halogen work lamp
  • Centrally located controls with jog button
  • Threading dial
  • Mounting pads and levelers
  • Live center
What's in The Box
  • GH-1660ZX, 3-1/8" Spindle Bore Geared Head Lathe
  • Tool box with tools
  • Tolerance Test Certificate Included
  • Owner's Manual
Warranty
  • JET Red Assurance 2-Year Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Size 16 x 60
Swing Over Bed (In.) 16
Swing Over Cross Slide (In.) 10
Swing Through Gap (In.) 25-1/2
Length of Gap (In.) 12
Distance Between Centers (In.) 60
Spindle Bore (In.) 3-1/8
Spindle Mount D1-8
Spindle Taper with Sleeve MT-7 (MT-5)
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 25 - 1,800
Number of Longitudinal and Cross Feed Rates 122
Range of Longitudinal Feeds (IPR) .0015 - .0913
Range of Cross Feeds (IPR) .0006 - .0365
Number of Inch Threads 61
Range of Inch Threads (TPI) 1-5/8 - 72
Number of Metric Threads 24
Range of Metric Threads .05 - 20
Max Tool Size (In.) 1 x 1
Compound Slide Travel (In.) 5-1/8
Cross Slide Travel (In.) 9
Carriage Travel (In.) 55-9/16
Tailstock Spindle Travel (In.) 5
Taper in Tailstock Spindle MT-4
Follow Rest Capacity (In.) 1/2 - 3-1/2
Steady Rest Capacity (In.) 3/8 - 7
Width of Bed (In.) 13-1/8
Motor (HP) 7-1/2 HP, 230/460, 3 Ph
Prewired (V.) 230
Weight (Lbs.) 5,795
Overall Dimensions (L x W x H) (In.) 115 x 44 x 66
Drive Geared Head
Style (Type) Engine - Large Spindle Bore
