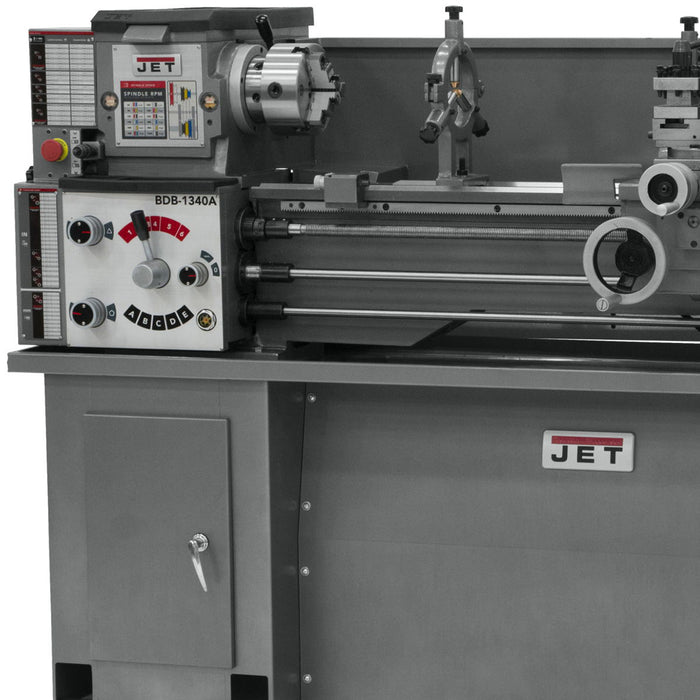

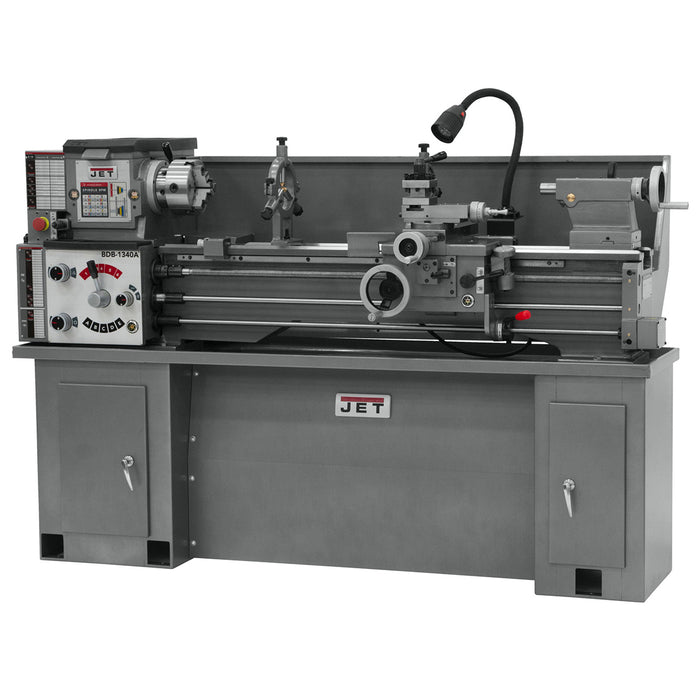

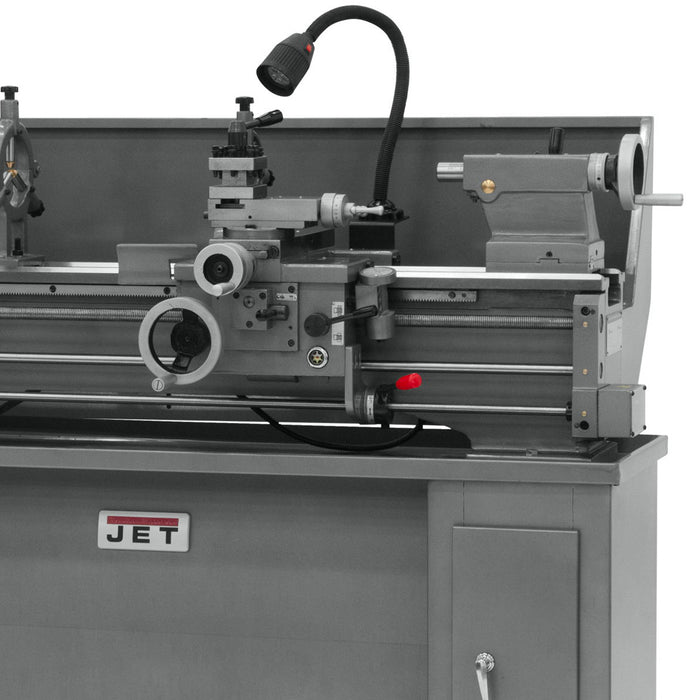

JET BDB-1340A 2-Hp 230V Belt Drive Bench Lathe w/ CBS-1340A Stand - 321102AK

by Jet
$7,099.00


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
Express checkout with and plus more available at checkout.

Condition: New
SKU: JET-321102AK
This item ships via Freight. Appointment is required for delivery. Click for details.
Features
  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Low voltage motor controls
  • Helical cut headstock gears reudce noise
  • Change gears allow metric threading
  • Spindle is supported by precision tapered roller bearings
  • V-way bed is induction hardened and ground
  • Gap bed section provided for large diameter work
  • Independent leadscrew and feed rod
  • T-slotted compound slide with four-way tool post
  • Carriage mounted spindle control lever
  • Automatic feeding and threading are fully interlocked
  • Feed selectors travel in grooved ways
  • Tailstock may be offset for turning tapers and includes and inch/metric graduated quill
  • Oil pan included
  • Tolerance test certificate included
  • 6" 3-jaw direct mount scroll chuck with top reversing jaws
  • 8" 4-jaw independent chuck
  • 12" faceplate
  • Four-way tool post
  • Steady and follow rest
  • Metric change gear
  • Centers and headstock center sleeves
  • Threading dial
  • Tool box with tools
What's in The Box
  • BDB-1340A With CBS-1340A Stand 321102AK
  • Owner's Manual
Warranty
  • JET Red Assurance 2-Year Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Size 13 x 40
Accessories Stand
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Length of Gap (In.) 8
Distance Between Centers (In.) 40
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 60 - 1,240
Number of Longitudinal and Cross Feed Rates 38
Range of Longitudinal Feeds (IPR) 0.0018-0.0374
Range of Cross Feeds (IPR) 0.0006-0.013
Number of Inch Threads 38
Range of Inch Threads (TPI) 3-1/2 - 80
Number of Metric Threads 23
Range of Metric Threads 0.45-10
Max Tool Size (In.) 5/8 x 5/8
Compound Slide Travel (In.) 2-11/16
Cross Slide Travel (In.) 6-5/16
Carriage Travel (In.) 35
Tailstock Spindle Travel (In.) 3-3/4
Taper in Tailstock Spindle MT-3
Follow Rest Capacity (In.) 2-3/4
Steady Rest Capacity (In.) 2-5-8
Width of Bed (In.) 7-3/8
Motor (HP) 2 HP, 230V, 1Ph
Prewired (V.) 230
Weight (Lbs.) 1,175
Overall Dimensions (L x W x H) (In.) 71 x 32 x 45
Drive Belt
Style (Type) Bench
