Features
- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Hardened and ground gears in headstock reduce vibration and deflection
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
What's in The Box

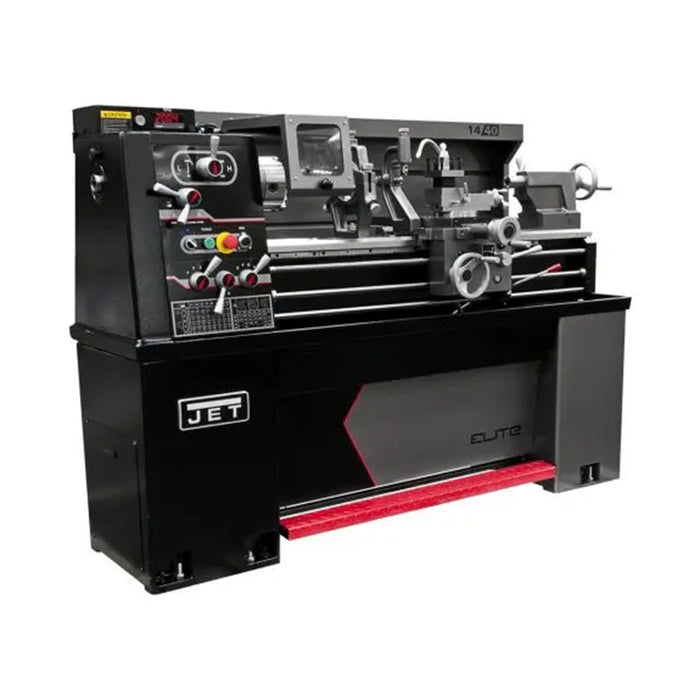

- 14x40 Elite Lathe - 892030
- Owner's Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 892030 |
| Brand | Jet |
| Motor (HP) | 3 HP, 230V, 3 Ph |
| Follow Rest Capacity | 1/4" - 2-3/8" |
| Swing Through Gap | 20" |
| Overall Dimensions (L x W x H) | 77" x 30" x 58" |
| Range of Cross Feeds (IPR) | 0.0003 - 0.01 |
| Steady Rest Capacity | 1/4" - 2-3/4" |
| Spindle Bore | 1-1/2" |
| Drive | EVS |
| Range of Inch Threads (TPI) | 4 - 112 |
| Range of Spindle Speeds (RPM) | 0 - 2,200 |
| Spindle Taper with Sleeve | MT5 |
| Number of Longitudinal and Cross Feed Rates | 80 |
| Size | 14 x 40 |
| Height | 60 |
| Length | 76 |
| Volume | 97.639 |
| Width | 37 |
| Weight | 1800 |
