Features

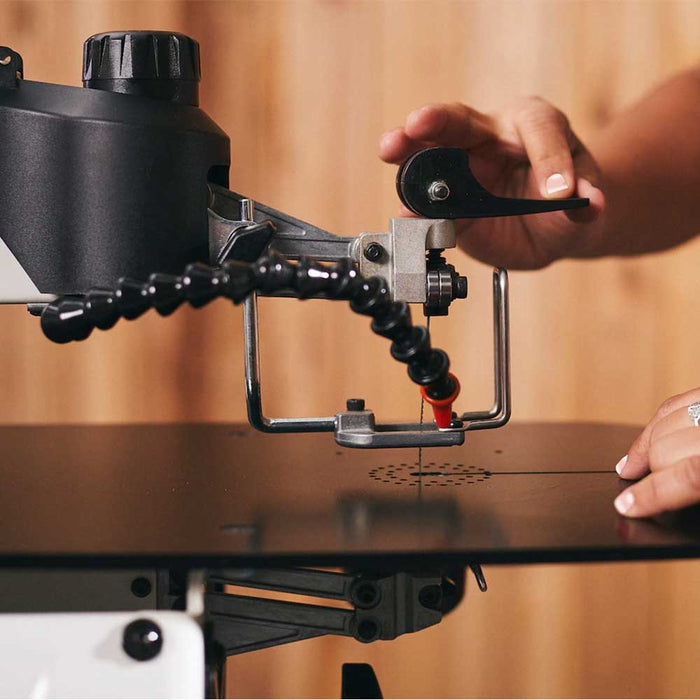

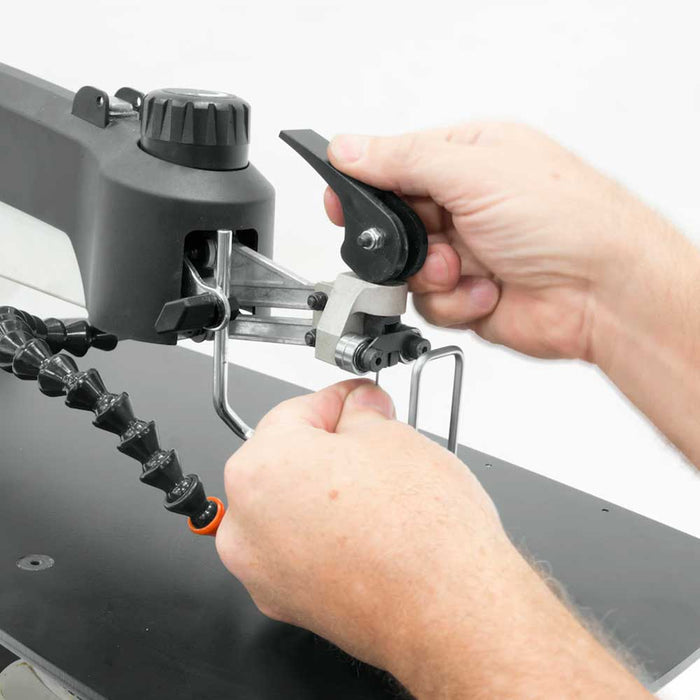

- Upper blade holder clamps and tensions blade in one step (Patent Pending)

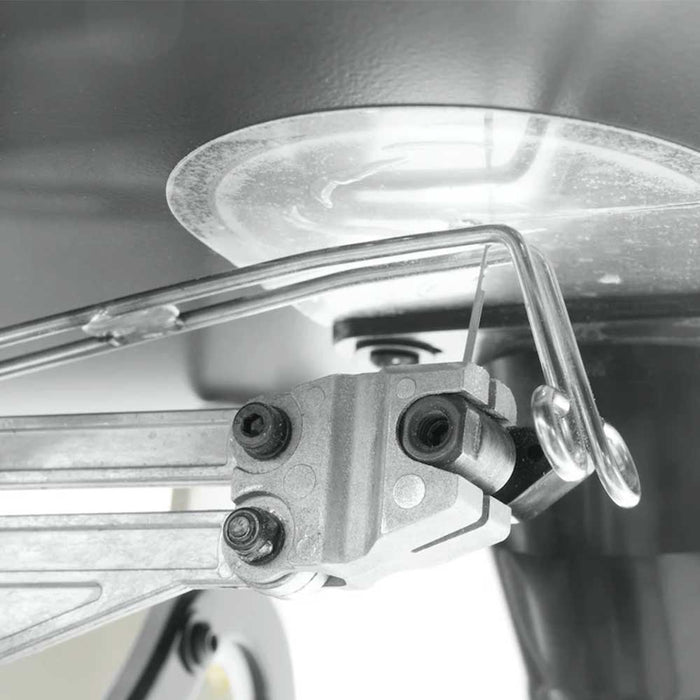

- Removable lower blade holder snaps quickly and securely in to place
- Large 12-7/8 x 23 cast iron table provides a stable working surface while also limiting vibration
- Slotted table for easier and quicker blade changes
- 22 throat capacity
- Arm tilts 45aDegree right and 40aDegree left, keeping the work table flat for more accurate cutting
- Integrated blade storage features slots for pre-loaded blades and a built-in wrench for changing blades
- Blade storage can be positioned on the right or left of the machine
- Top lift, spring loaded arm raises 10 and stays up until pulled back down

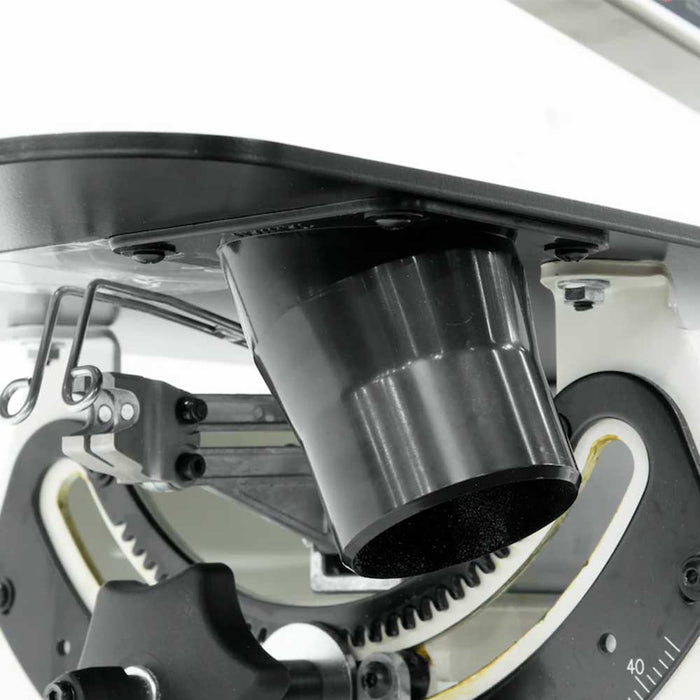

- Removable dust port on underside of table to collect dust at the source
- Variable speed range of 400 1550 strokes per minute
- 2 maximum cutting depth

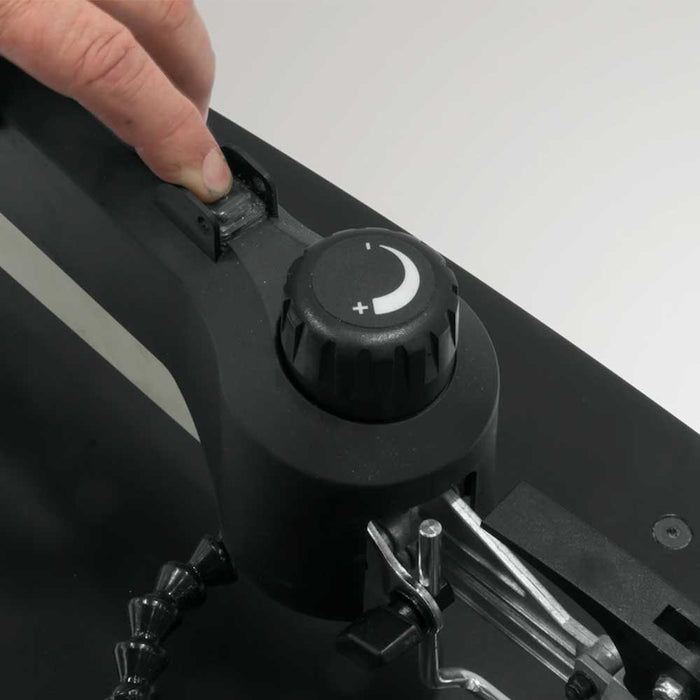

- Conveniently located speed and tension controls
- Included Equipment: Material hold down, Onboard Dust Blower, Foot Switch
What's in The Box

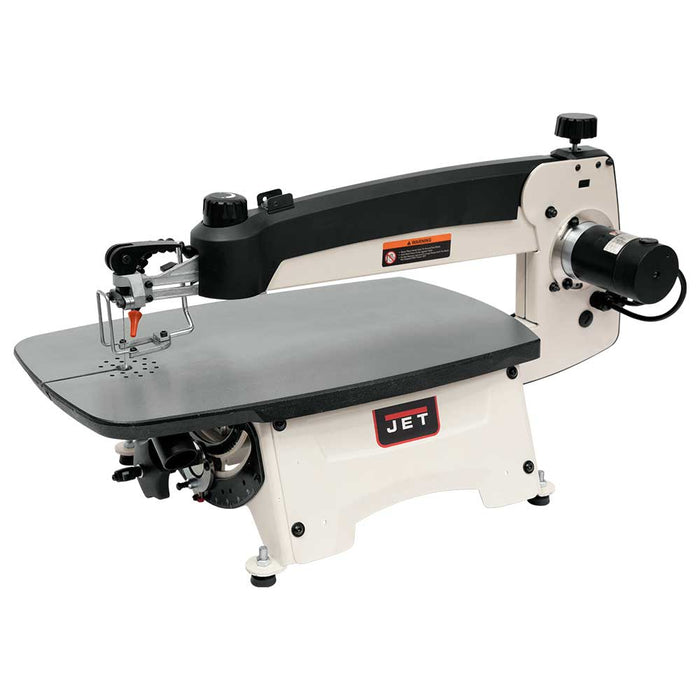

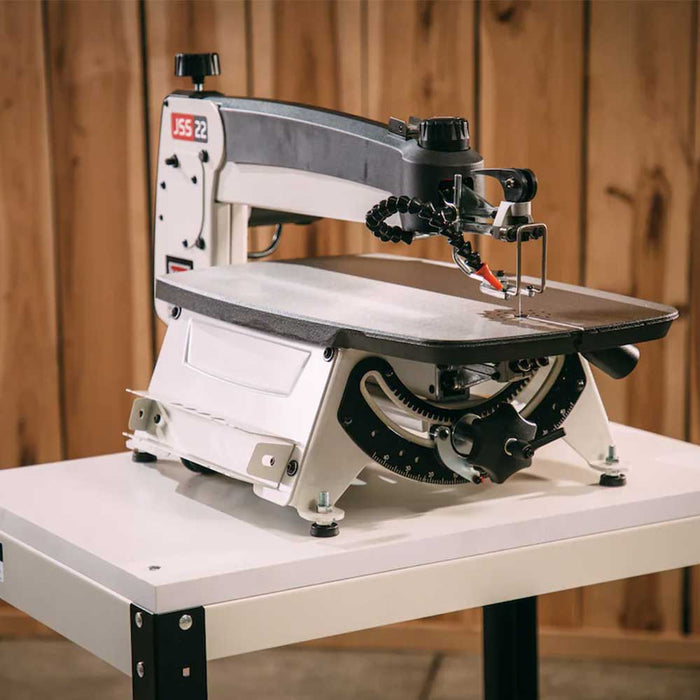

- 22-Inch Scroll Saw
- Material Hold Down

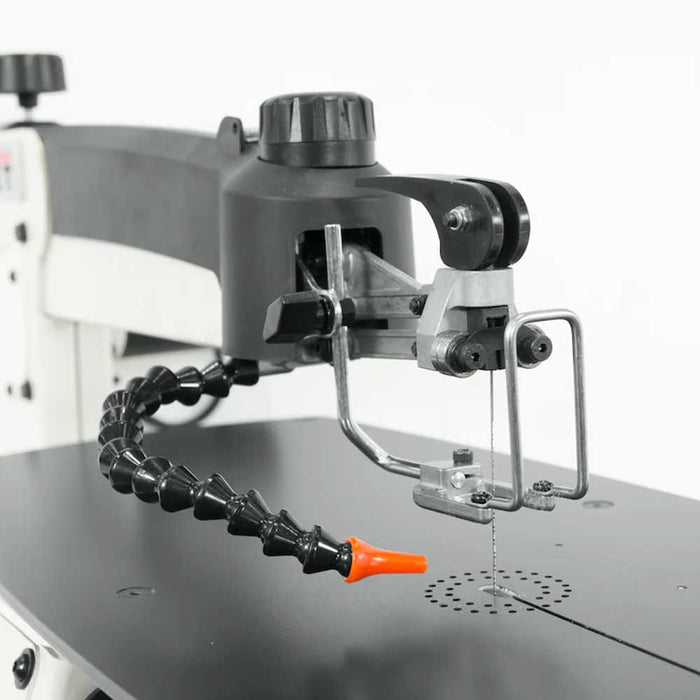

- Onboard Dust blower
- Foot Switch
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
Model | JWSS-22B |
Sku | 727200B |
Brand | Jet |
Table Material | Cast Iron |
Stroke Length (In.) | 3/4 |
Tilting Function | Arm |
Blade Tilt Range (Deg.) | 45 R, 40 L |
Throat (In.) | 22-3/8 |
Maximum Cutting Depth (In.) | 2 |
Speed Range (Stroke/min) | 400 - 1550 |
Table Size (L x W) (In.) | 12-2/3 x 23-5/8 |
Motor Voltage (V) | 120 |
Motor Amps | 1.3 |
Table Height (In.) | 7-3/4 to 8-3/4 |
Assembled Machine Dimensions (L x W x H) (In.) | 33 x 15-1/2 x 17-1/2 |
Net Weight (Lbs.) | 68.2 |
