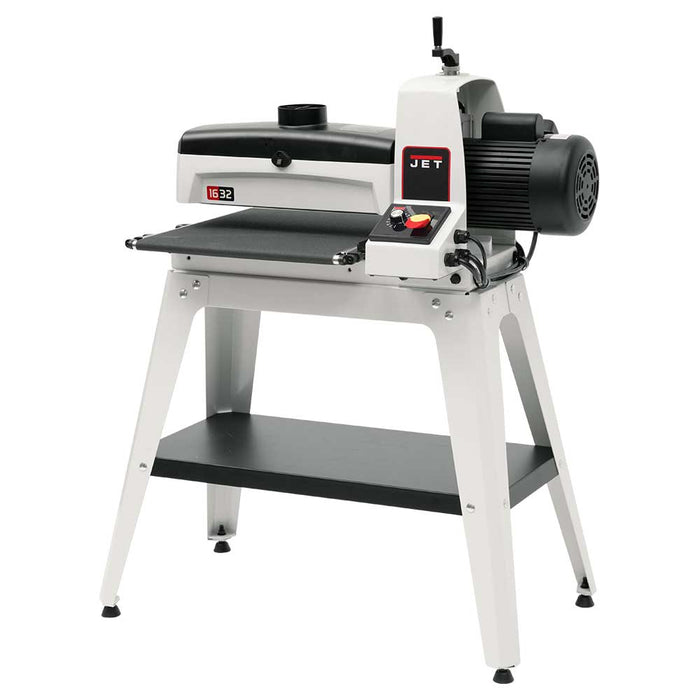

JET 723520K 1632 115V 20 Amp Corded SandSmart Drum Sander w/ Woodworking Stand

by Jet
Out of Stock
- +

Condition: New
SKU: JET-723520K
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
  • Conveyor Bed parallelism is easily adjusted by turning the dial on the outside of the bed with no tools required
  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

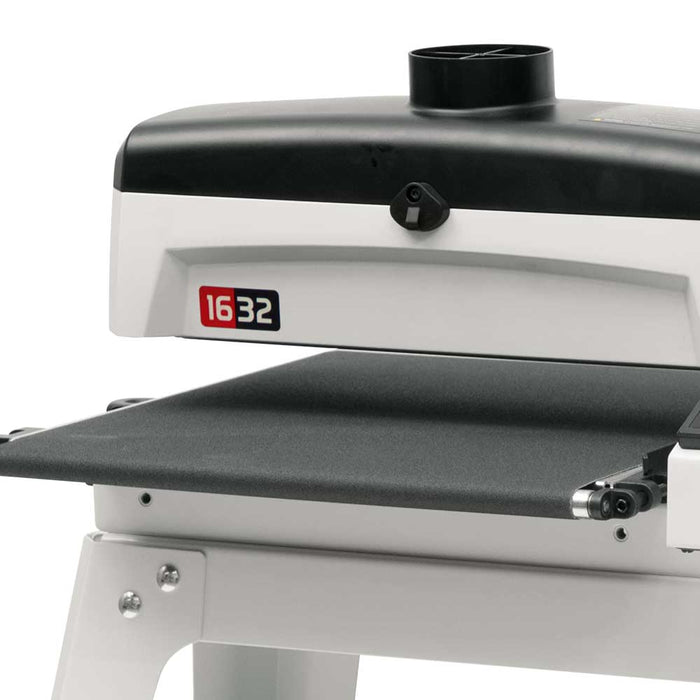

  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs the chips and dust to the 4” collection port
  • Precision machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat damage
  • Precision flattened reinforced steel conveyor bed
  • One rotation of the top position handwheel adjusts the drum height by 1/16”
  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing
  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Toolless abrasive take-up clips make changing abrasives quick and easy
  • Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Conveyor belt TRACKERS reduce the need for manual belt adjustments

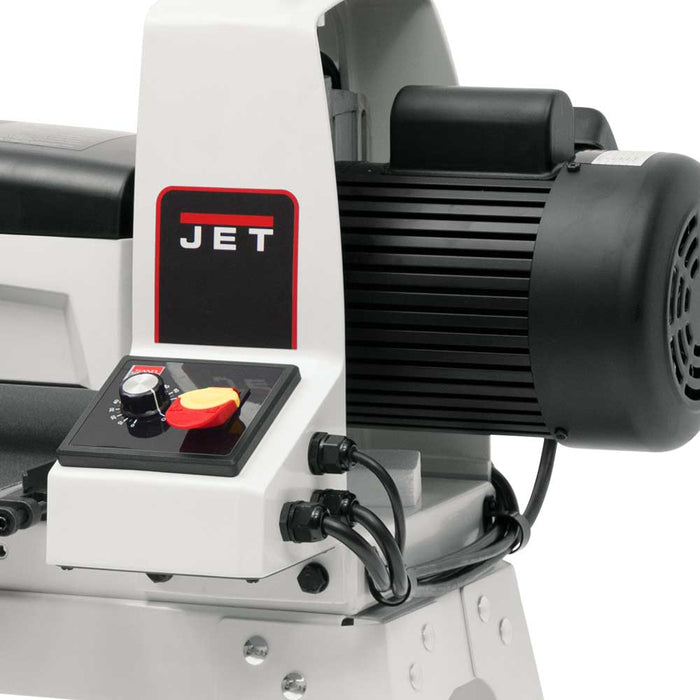

  • Integrated on/off switch and variable speed control knob are conveniently located

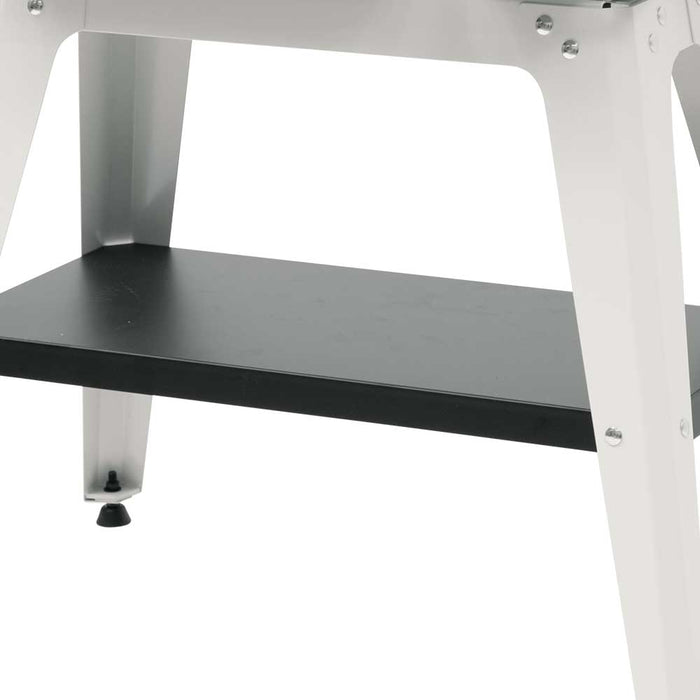

  • Stand features a 20" x 37" footprint to increase stability and has a storage shelf and pre-drilled holes for casters
  • Drum is easily removable
  • Drum utilizes sealed and permanently lubricated ball bearings for longer life
What's in The Box
  • Jet 1632 20 Amp Corded SandSmart Drum Sander w/ Woodworking Stand - 723520K
  • Owner's Manual
Warranty
  • 5 Years Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 723520K
Brand Jet
Motor Power 1-1/2 HP
Motor Phase 1 PH
Motor Voltage 115V
Motor Amps 14
Drum Length 16 in
Drum Speed 1720 RPM
Conveyor Motor 43 in-lbs torque, direct drive, dc
Conveyor Speed 0-10 FPM
Dust Collection Minimum CFM Required 400
Dust Port Outside Diameter 4 in
Recommended Circuit Size 20 Amps
Drum Diameter 5 in
Drum Bearing Diameter 1 in
Max Board Width 32 (two passes)
Minimum Board Length 2-3/8 in
Minimum Board Thickness 1/32 in
