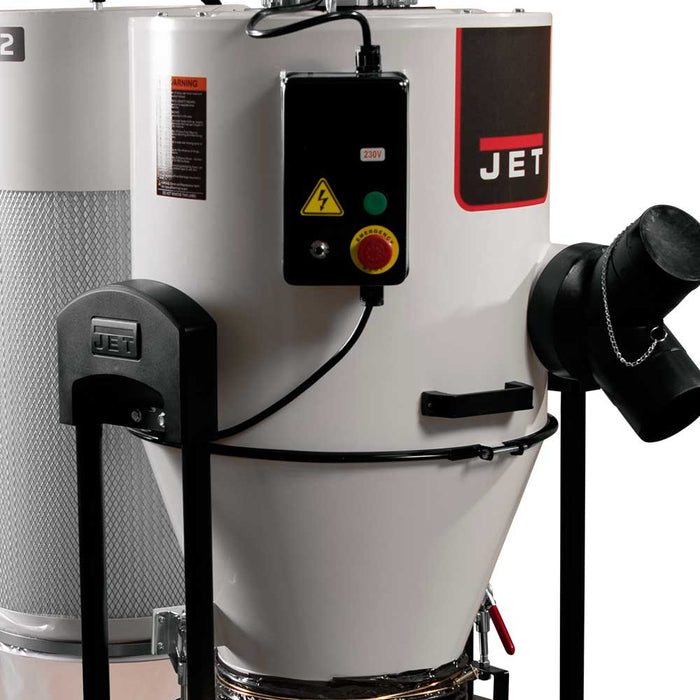

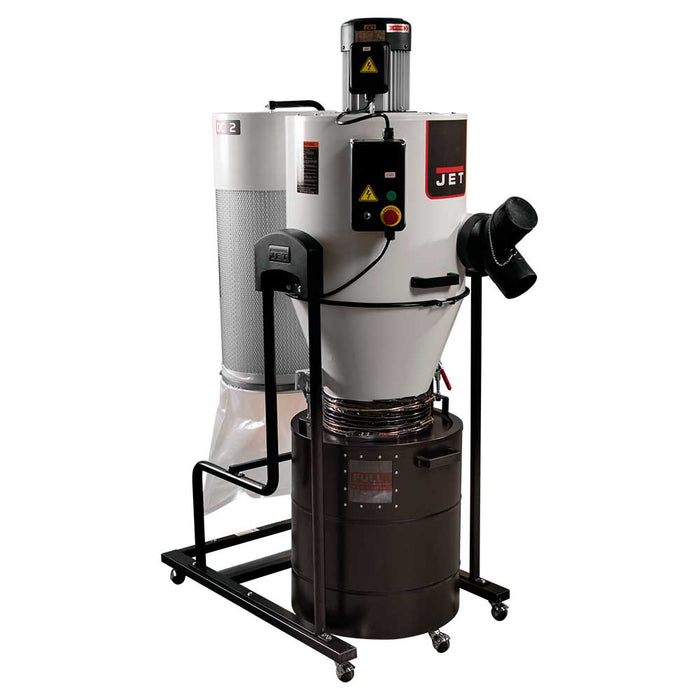

JET 717520 JCDC-2 230V 2-HP Cyclone Dust Collector

by Jet
$2,229.99 + Free Shipping

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: JET-717520
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Cyclones two stage separation provides more working CFM than comparable horsepower single stage units
  • Heavy Debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
  • Direct mounted filter eliminates inefficiencies from ridged flex hosing bends
  • Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

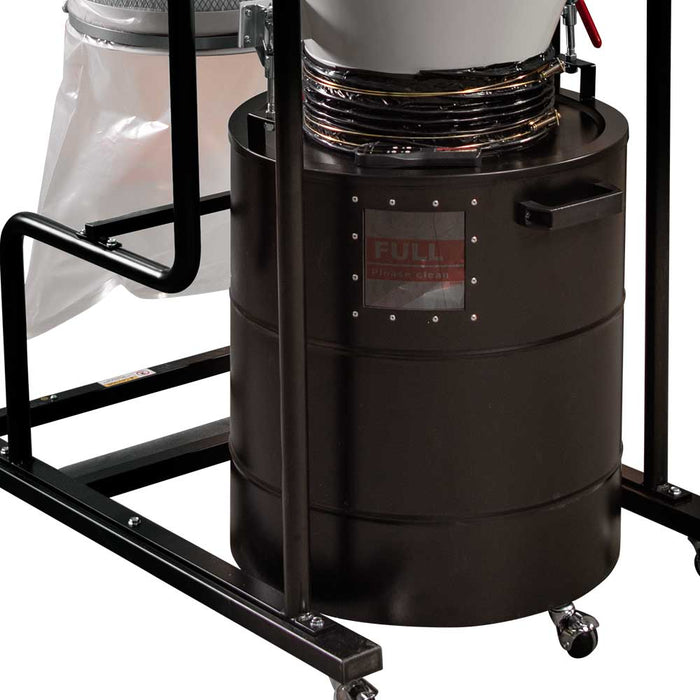

  • Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
  • Included radio frequency remote control works from up to 50 feet away
  • Remote timer settings allows system to run 2, 4, 6, or 8 hours before automatic shutoff
  • Double paddle manual cleaning system quickly cleans the pleated filter
  • Swivel casters make it easy to move the unit around the shop
What's in The Box
  • Jet JCDC-2 230V 2-HP Cyclone Dust Collector - 717520
  • Owner's Manual
Warranty
  • 5 Years Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 717520
Brand JET
Number of Air Inlets 1 at 6 in, 2 at 4 in
Air Flow ay 6 in CFM 938
Air Velocity at 6 in FPM 4763
Static Pressure Loss 2.520
Max Static Pressure 10
MERV Value 13
Filter Efficiency Microns 99 percent of 2-micron particles
Canister Filter Length 22-5/8 in
Canister Filter Diameter 14-9/16 in
Collection Drum Capacity 30 gallon
Impeller Material Steel
Impeller Diameter 14-1/2 in
Impeller Fins radial
Sound Rating 76 dB
Motor Speed 3450 RPM
Motor Power 2 HP
Motor Voltage 230V
Motor Amps 9
Footprint 50-5/8 in X 25-7/8 in
Length 25-7/8 in
Width 50-5/8 in
Height 72-1/4 in
Weight 235 lbs
