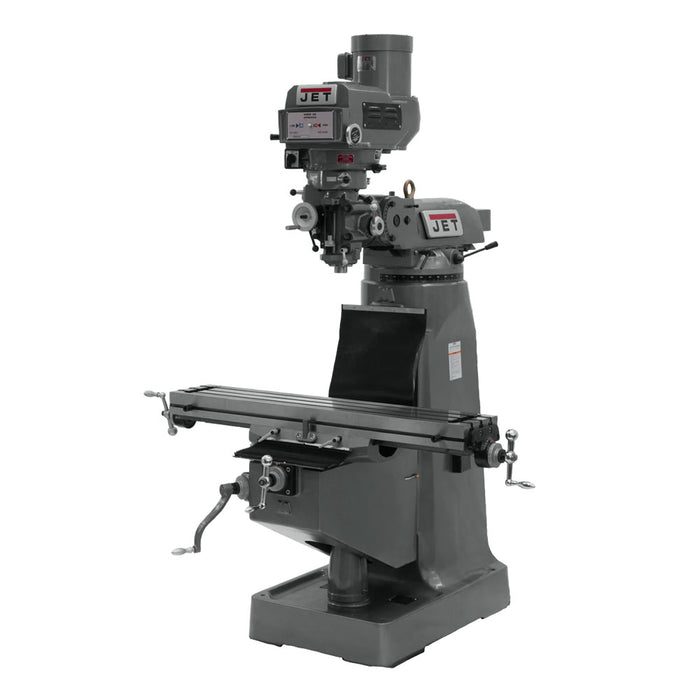

JET 690202 JTM-4VS 230/460V Heavy Duty Variable Speed Mill w/ ACU-RITE 203 DRO

by Jet
Out of Stock
$11,499.00

Condition: New
SKU: JET-690202
Item ships freight. Appointment required. ? Freight shipments are items that require to be shipped by LTL Freight. The freight company will require a valid phone number and will usually call 24 hours in advance.
Features
  • Certified Meehanite Castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome-plated motor shaft with lower bearing support
  • The spindle head is internally cooled
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • Three-stage power down feed with automatic stop
  • Heavy-duty spindle brake
  • Locks on all movable surfaces
  • Precision hardened and ground ways and table
  • Adjustable gibs throughout
  • Internal coolant tank built into casting base for use with a coolant system (coolant pump not included)
  • Tolerance test sheet included
  • One-shot lubrication system
  • Way covers
  • Drawbar
  • Toolbox with tools
What's in The Box
  • Mill With ACU-RITE 203 DRO
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 690202
Brand Jet
Volts 230/460
Horsepower 3
Phase 3
Style Variable Speed R8
Digital Readout ACU-RITE 203
Number of Axis 2
Spindle Taper (in x TPI) R-8
Table Size (L x W) 9 x 49 in
Quill Diameter 3-3/8 in
Number of Spindle Speed (RPM) Variable
Range of Spindle Speed (RPM) 60 - 4,200
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Spindle Travel 5 in
Head Movement 90 R & L, 45 F & B degree
Max Distance Spindle to Table 17-1/2 in
Distance Spindle to Column (Max) 19 in
Distance Spindle to Column 4-1/2 in
Collet Capacity 1/8 - 7/8
Table Longitudinal Travel 34 in
Table Longitudinal Travel w/ Powerfeed 28-3/4 in
Table Cross Travel 12 in
T-Slots Number and Size 3 and 5/8 in
T-Slot Centers 2-1/2 in
Work Table Weight Capacity 660 lbs
Travel of Knee 14-1/2 in
Travel of Ram 13-3/8 in
Dimensions 66 x 63 x 85 in
Weight 2420
