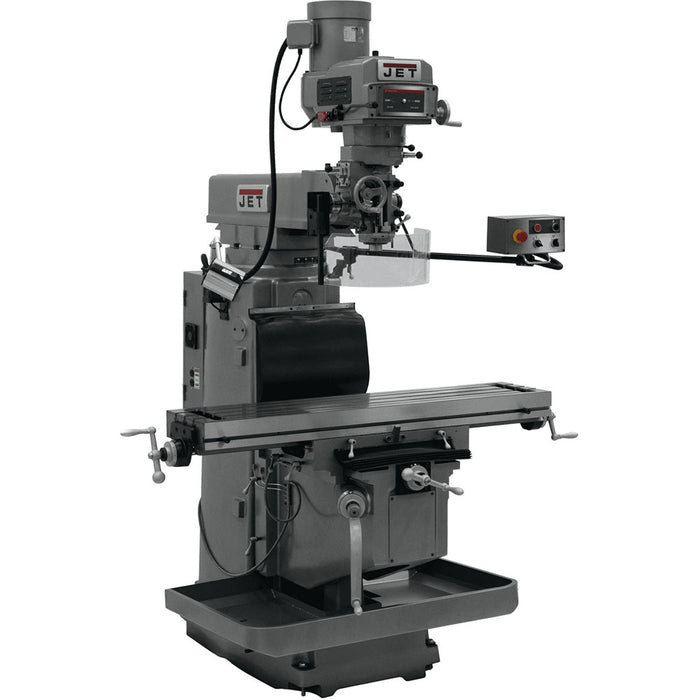

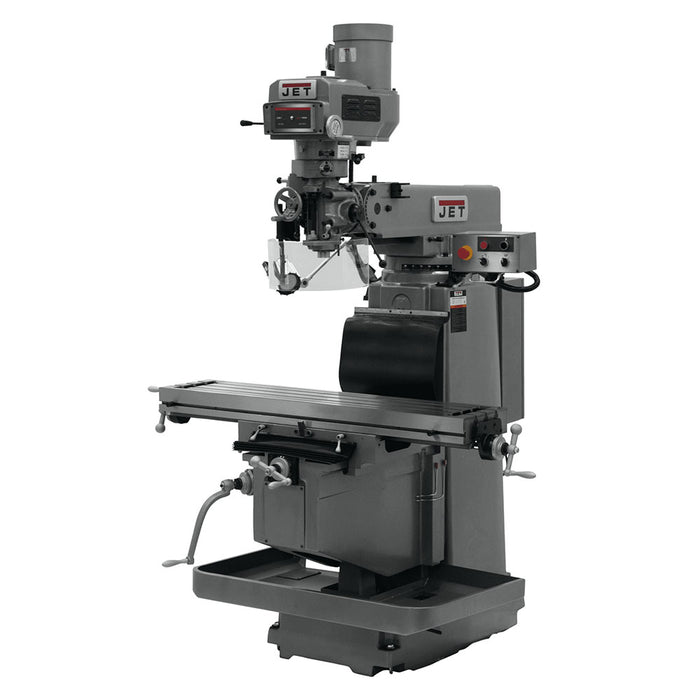

JET 690020 JTM-1254RVS 230V/460V 5 HP Variable Speed Vertical Mill Machine
by Jet
$18,759.00
+ Free Shipping
Condition: New
SKU: JET-690020
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Certified Meehanite Castings
- Precision bored and honed milling head
- High precision Class 7 spindle bearings
- Quick Spindle Feed Nut
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
- Three Precision ground t-slots
- Turcite B on X and Y Axis
- Adjustable gibs throughout
- CSA/CUS Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified
- Spindle Guard
- Spindle Brake for rapid stopping of the spindle
- Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
- Quick nut for spindle feed
- JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor
- Way covers
What's in The Box
- Spindle Safety Guard
- Led Machine Lamp
- Dual Locks on All Moveable Surfaces
- Chip Pan
- Draw bar
- Tool box with tools
- Owner's Manual
Warranty
- 2 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 690020 |
| Brand | JET |
| Horsepower | 5 |
| Volts | 230V/460V |
| Motor | Three Phase |
| Style | Variable Speed R8 |
| Spindle Taper | R-8 |
| Table Size(L x W) | 12 x 54 in |
| Quill Diameter | 3-3/8 in |
| Number Spindle Speeds | Variable |
| Range of Spindle Speeds | 80 - 3800 |
| Quill Down Feed Rates | 0.0015-0.003-0.006 |
| Spindle Travel | 5 |
| Head Movement | 90 degrees R and L, 45 degree F and B |
| Max Distance Spindle to Column | 27-3/4 in |
| Min Distance Spindle to Column | 7-1/2 in |
| Table Longitudinal Travel | 33-7/8 in |
| Table Cross Travel | 15-1/3 in |
| T-Slots Number and Size | 3 and 5/8 in |
| T-Slots Centers | 2-1/2 in |
| Work Table Weight Capacity | 925 lbs |
| Travel Knee | 19-1/4 in |
| Travel of Ram | 25 in |
| Saddle Width | 25-5/8 in |
| Column Width | 14-1/4 in |
| Length | 92-1/8 in |
| Width | 79-7/8 in |
| Height | 104-1/4 in |
| Weight | 3969 lbs |
