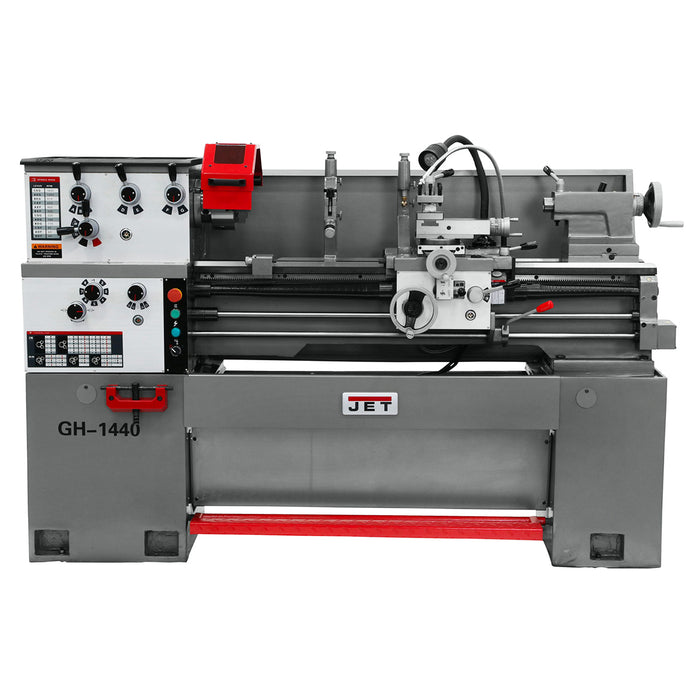

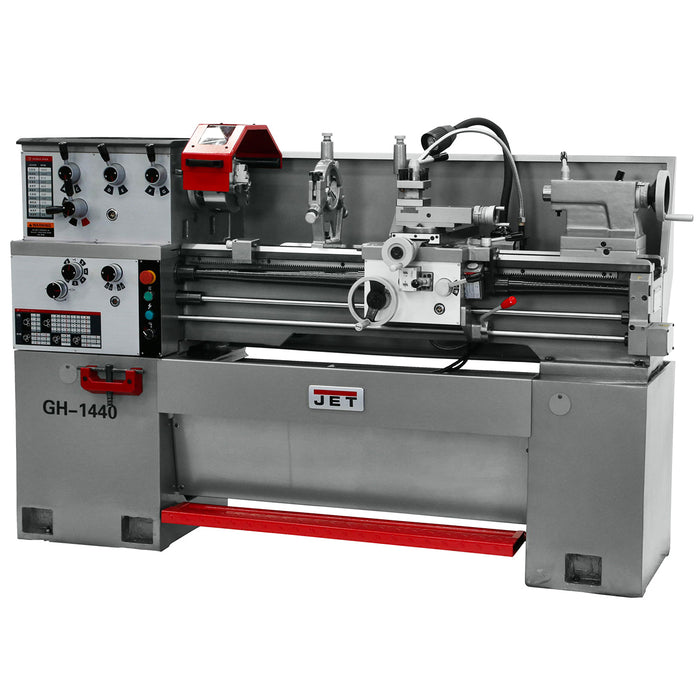

Jet 323403 14-Inch x 40-Inch 3-Phase Geared Head Bench Lathe w/ 200S Dro

by Jet
$19,699.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: JET-323403
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent leadscrew and feed rod
  • Adjustable gibs are incorporated in the carriage and slideways
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Electronic Chuck Key Docking Station
  • Chuck Guard
  • Foot Brake
  • Gearbox provides larger threading and feed capabilities with no gear changes
  • Spindle actuation control is apron mounted
  • Gap bed section provided for larger diameter work
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Front removable chip tray
  • Spindle jog button for easy gear engagement and spindle inching
  • Coolant system
  • Full length splash guard
What's in The Box
  • 14-Inch x 40-Inch Geared Head Lathe
  • Acu-Rite 200S Digital Readout
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 323403
Model GH-1440-3
Brand Jet
Voltage 230v
Horsepower 3 Hp
Phase 3-Phase
Swing Over Bed 14 in.
Swing Over Cross Slide 8-1/5 in.
Swing Through Gap 20 in.
Length of Gap 9-3/8 in.
Distance Between Centers 40 in.
Spindle Bore 1-1/2 in.
Spindle Mount D1-4
Spindle Taper w/ Sleeve MT-5
Number of Spindle Speeds 12
Range of Spindle Speeds 40 Rpm - 1,800 Rpm
Number of Longitudinal
and Cross Feed Rates
40
Range of Longitudinal Feeds 0.012 Ipr - 0.0294 Ipr
Range of Cross Feeds 0.0004 Ipr - 0.0103 Ipr
Number of Inch Threads 40
Range of Inch Threads 4 Tpi - 112 Tpi
Number of Metric Threads 23
Range of Metric threads 0.45 - 7.5
Max Tool Size 5/8 in. x 5/8 in.
Compound Slide Travel 3-1/2 in.
Cross slide Travel 6-3/8 in.
Carriage Travel 37-1/2 in.
Tailstock Spindle Travel 4-3/4 in.
Taper in Tailstock Spindle MT-3
Follow Rest Capacity 2-5/8 in.
Steady Rest Capacity 3-1/2 in.
Width of Bed 10-1/5 in.
Length 74-4/5 in.
Width 28 in.
Height 46 in.
Product Weight 2,336 lbs.
