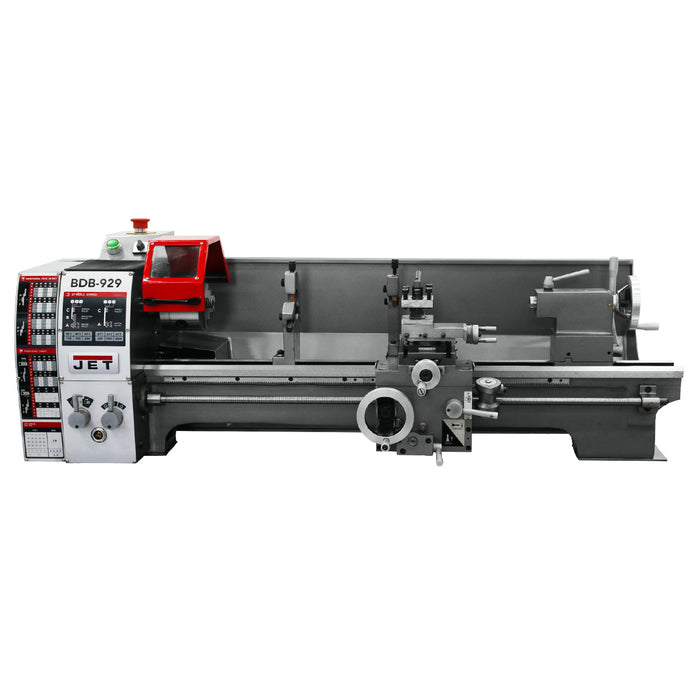

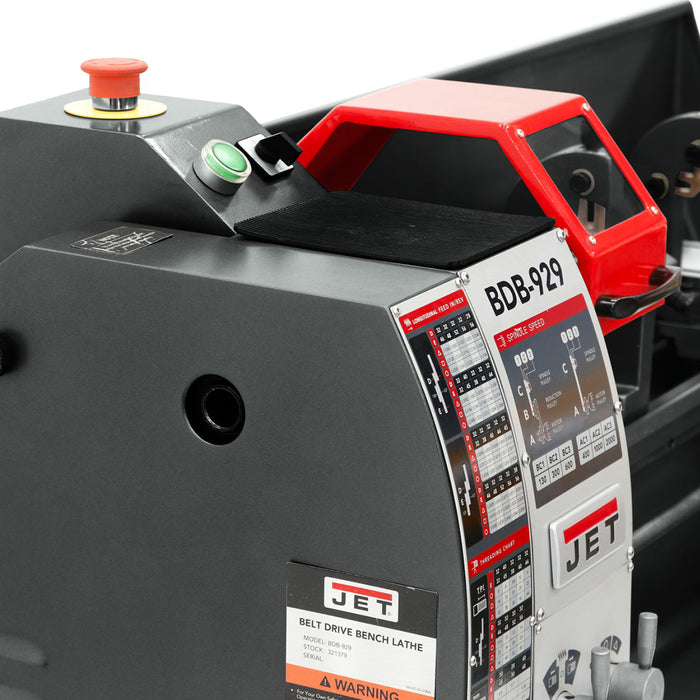

Jet 321379 9-Inch x 29-Inch 115-Volt 3/4-Hp Standard Spindle Benchtop Lathe

by Jet
Out of Stock
- +

Condition: New
SKU: JET-321379
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Induction hardened and ground bedway
  • Spindle supported by precision tapered roller bearings

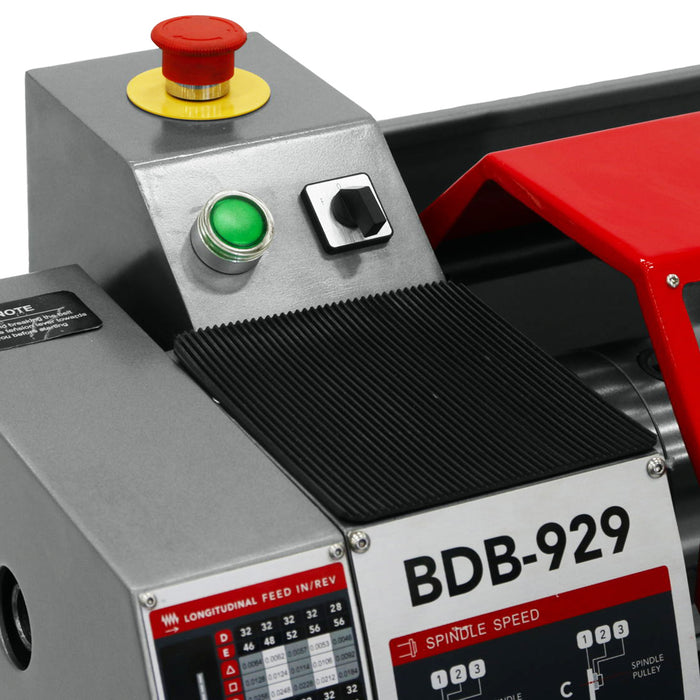

  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Chuck Guard
  • Quick change gearbox provides wide range of inch and metric threads
  • Power longitudinal feed allows threading and reverse threading
  • Quick locking tailstock
  • Standard 1-1/2 x 8 TPI spindle mount allows for many aftermarket accessories
  • Reversing switch for added versatility
What's in The Box
  • 9-Inch x 29-Inch Benchtop Lathe
  • Owner's Manual
Warranty
  • 2-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 321379
Brand Jet
Voltage 115v
Horsepower 3/4 Hp
Phase 1-Phase
Number of Longitudinal
and Cross Feed Rates
60
Number of Metric Threads 12
Max Tool Size 1/2 in.
Width of Bed 4-1/2 in.
Swing Over Bed 8-3/4 in.
Cross Slide Travel 4-1/4 in.
Taper in Tailstock Spindle MT-2
Compound Slide Travel 1-7/8 in.
Range of Metric Threads 0.5 - 3.5
Carriage Travel 26.5 in.
Steady Rest Capacity 1-3/4 in.
Number of Inch Threads 27
Range of Spindle Speeds 130 Rpm - 2,000 Rpm
Spindle Mount 1-1/2 in. x 8 Tpi
Follow Rest Capacity 1-3/4 in.
Spindle bore 3/4 in.
Range of Inch Threads 8 Tpi - 56 Tpi
Spindle Taper w/ Sleeve MT-3
Swing Over Cross Slide 5 in.
Number of Spindle Speeds 6
Tailstock Spindle Travel 1-9/16 in.
Distance Between Centers 27.5 in.
Range of Longitudinal Feeds 0.0006 Ipr - 0.0368 Ipr
Length 51 in.
Width 22 in.
Height 20 in.
Product Weight 287 lbs.
