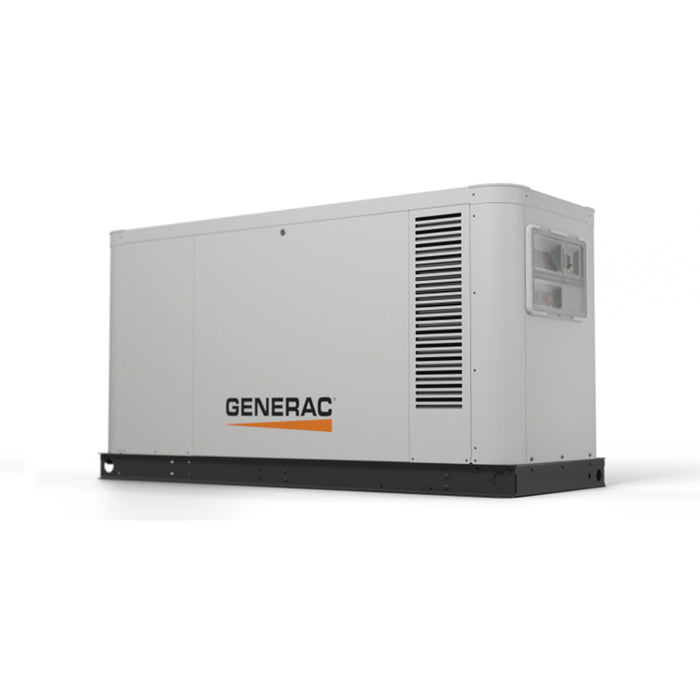

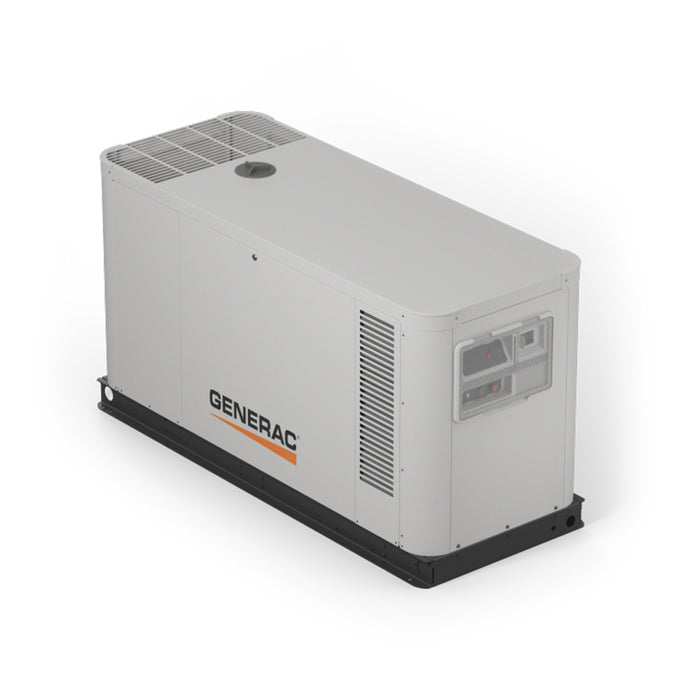

Generac XG03245CNAX 32kW LC 3 Phase Automatic Standby Generator
by Generac
$15,997.00
+ Free Shipping
Condition: New
SKU: GNC-XG03245CNAX
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Product Downloads
Brochure
Specifications
Owner's Manual
Wi-Fi Manual
Warranty
Features
- Power Zone 410 Controller, NFPA 110 Capable
- Cellular Connectivity for Mobile Link and Fleet
- Quiet Operation
- Corrosion Resistant Enclosure & Frame
- 5 Year/2,000 Hour Limited Warranty
- Hi Motor Starting, Surge Capacity
- Fuel Efficiency
- Controller-Selectable Fuel Type - Natural Gas or Propane Vapor
- 1-Phase or Configurable 3-Phase Voltage Output
- Single-Side Regular Maintenance Access
- EPA & SCAQMD Exhaust Emissions Certified
- As close as 18 in (457 mm) offset distance from structure
What's in The Box
- 32kW LC Automatic Standby Generator 3-Phase- XG03245CNAX
- Owners Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | XG03245ANAX | |||||||
| Brand | Generac | |||||||
| Generator Output | ||||||||
| Voltage | XG03245 | XG04045 | ||||||
| Natural Gas | Liquid Propane | |||||||
| Power (kW) | Current (A) | Power (kW) | Current (A) | |||||
| 120/240 1–Phase | 32 | 133 | 32 | 133 | 40 | 40 | 139 | |
| 208/120 3–Phase | 32 | 111 | 32 | 111 | 40 | 40 | 120 | |
| 240/120 3–Phase | 32 | 32 | 40 | 40 | ||||
| 480/277 3–Phase | 32 | 32 | 40 | 40 | ||||
| Voltage Regulation | ||||||||
| Type | Electronic | |||||||
| Sensing | All Phases | |||||||
| Regulation | +- 1 percent | |||||||
| Governor Specifications | ||||||||
| Type | Electronic | |||||||
| Frequency Regulation | Isochronous | |||||||
| Steady State Regulation | +- 25 percent | |||||||
| Alternator System Specifications | ||||||||
| XG03245 | XG04045 | |||||||
| 1-Phase | 3-Phase | 1-Phase | 3-Phase | |||||
| Voltage Output | 120/240 V Only | 208/120 V; Configurable for 480/277 or 240/120 V with Optional Field-Installable VCC | 120/240 V Only | 208/120 V; Configurable for 480/277 or 240/120 V with Optional Field-Installable VCC | ||||
| Circuit Breaker (CB) Size | 150 A | Not Included; Optional Field-Installable Kit | 200 A | Not Included; Optional Field-Installable Kit | ||||
| Type | Synchronous | Synchronous | ||||||
| Rotor Insulation Class | F | F | ||||||
| Stator Insulation Class | H | H | ||||||
| Telephone Interference Factor (TIF) | < 50 | < 50 | ||||||
| Bearings | Sealed Ball | Sealed Ball | ||||||
| Coupling | Flexible Disc | Flexible Disc | ||||||
| Excitation System | Direct | Direct | ||||||
| Engine Specifications | ||||||||
| XG03245 | XG04045 | |||||||
| Make | Generac | |||||||
| Model | Inline 4 Cylinder | |||||||
| Cylinders | 4 | |||||||
| Displacement (L) | 4.5 | |||||||
| Bore | 4.5 in | |||||||
| Stroke | 4.25 in | |||||||
| Compression Ratio | 9.9:1 | |||||||
| Lifter Type | Hydraulic | |||||||
| Intake Air System | Naturally Aspirated | |||||||
| Temperature Derate | 1.5% per every 5°C above 25°C (1.65% per every 10°F above 77°F) | |||||||
| Altitude Derate | 1% per every 100 m above 183 m (3% per every 1000 ft above 600 ft) | |||||||
| Exercise Speed (RPM) | 1,200 | |||||||
| Operating Speed (RPM) | 1,800 | |||||||
| Cooling System | ||||||||
| XG03245 | XG04045 | |||||||
| Coolant | 50/50 (50% Ethylene Glycol) | |||||||
| Coolant System Capacity (L (US gal)) | 11 (2.9) | |||||||
| Water Pump | Belt–Driven | |||||||
| Fan Type | Mechanical | |||||||
| Fan Quantity | 1 | |||||||
| Maximum Ambient Air Temperature (C (F)) | 50 (122) | |||||||
| Fuel Types | ||||||||
| XG03245 | XG04045 | |||||||
| Natural Gas | Yes | |||||||
| NG Pressure (kPa (in. WC)) | 0.87 – 3.48 (3.5 – 14) | |||||||
| Liquid Propane | Yes | |||||||
| LP Vapor Pressue (kPa (in. WC)) | 1.74 – 3.48 (7–14) | |||||||
| Fuel Type Configuration | Controller-Selected | |||||||
| Fuel Shutoff Solenoid | Standard, Dual | |||||||
| Fuel Consumption | ||||||||
| Rated Load | XG03245 | XG04045 | ||||||
| Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | |||||
| (m3/h) | (CFH) | (m3/h) | (CFH) | (m3/h) | (CFH) | (m3/h) | (CFH) | |
| 25% | 4.8 | 169 | 8.3 | 2.2 | 5.2 | 184 | 10 | 2.6 |
| 50% | 6.8 | 240 | 12.9 | 3.4 | 8.2 | 289 | 14.5 | 3.8 |
| 75% | 9.5 | 335 | 15.8 | 4.2 | 11.1 | 392 | 17.7 | 4.7 |
| 100% | 11.5 | 406 | 18.5 | 4.9 | 14 | 494 | 21.7 | 5.7 |
| Electrical System | ||||||||
| System Voltage | 12 | |||||||
| Battery Charge Alternator (A) | 37 | |||||||
| Battery Charger (A) | 5 | |||||||
| Recommended Battery (not included) | Group 27R, 725 CCA Minimum | |||||||
| Maximum Allowable Battery | Group 31R | |||||||
GENERAC GUARDIAN SERIES 20KW GENERATOR FEATURES AND BENEFITS
This generator provides essential circuit power protection for your home during a power outage, ensuring that essential appliances maintain power. This standby generator is automatic and offers protection year-round, for less than the cost of central air conditioning.
Every Guardian Series home standby generator comes with Mobile Link™ Remote Monitoring. Remote Monitoring is FREE, and allows you to monitor the status of your generator from anywhere in the world. Use a smartphone, PC, or tablet to access generator information, such as the current operating status and maintenance alerts. By connecting your account you have access to authorized service dealers for fast, friendly, and proactive service.
Generac generators are ideal for weathering storms and power outages. Their automatic backup power gives you piece of mind that your home and appliances are protected.
Generac generators and engines are designed, engineered and assembled in the USA using domestic and foreign parts.
The Generac G-Force Engine is built to handle the stressors of generator use. This results in power that’s more reliable and requires less routine maintenance than competitor engines. Generac’s new G-Force engine is purpose built and pressure-lubricated. It features hydraulic lifters, which improve engine performance and extending the life of the product. (Hydraulic lifters only available on the 13 & 16 kW.)
