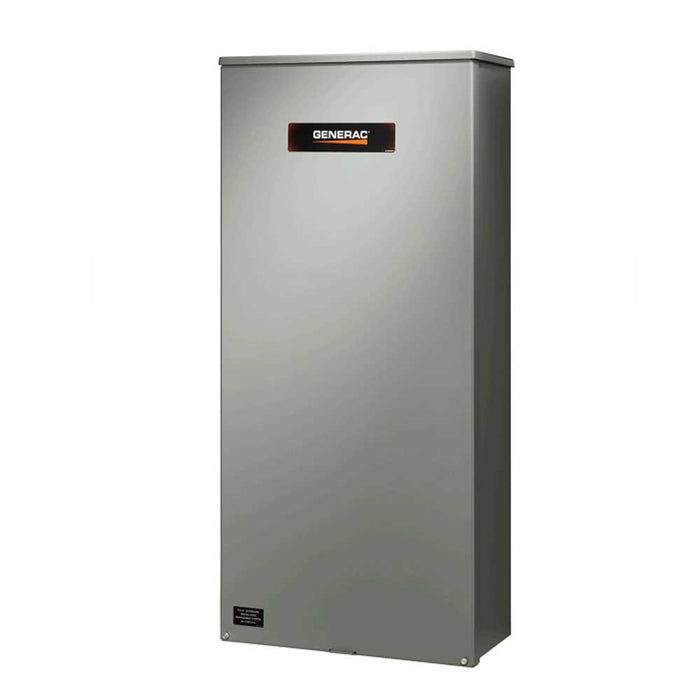

Generac RXGW20SHA3 120/240V Automatic Smart Transfer Switch 20-40 Circuit Load

by Generac
$1,259.00 + Free Shipping

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: GNC-RXGW20SHA3
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
  • Compatible with Evolution or Nexus generator controllers
  • Improved Design
  • 35 percent Smaller footprint and greater branch circuit capacity
  • Integrated 20-Circuit Load Center (Breakers Not Included)
  • 40-Circuit capacity with the use of tandem breakers
  • For use with Siemens, Murray, Square D and Eaton 1" breakers
  • Accepts GFCI, AFCI and tandem breakers
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Req.
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads and lock-out non-essential loads
  • Service Entrance Rated (Load Side and Line Side Disc. Breakers)
  • Installs between the main meter and service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps Lug Range: 2/0 - #14
What's in The Box
  • Automatic Smart Transfer Switch 20-40 Circuit Load
  • Owner's Manual
Warranty
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU RXGW20SHA3
Brand Generac
Volts 120/240V
Phase Single
Watts 48000
Amps 200
Max Circuits 20
Enclosure NEMA 3R
Transfer Switch Style Service Disconnect
ATS Poles 2 poles
Length 38.5 inch
Width 17 in
Height 8 in
Weight 45 lbs
