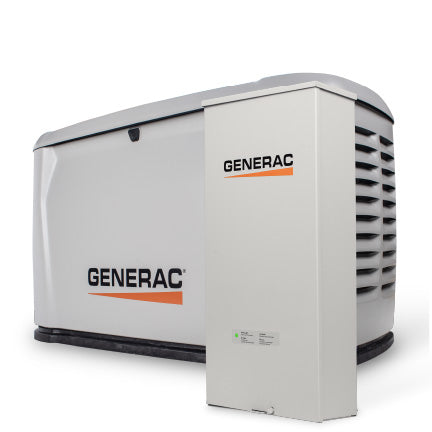

Generac 7323 14kW Air-Cooled Whole Home Standby Generator w/ Transfer Switch Kit
by Generac
$5,839.00
+ Free Shipping
Condition: New
SKU: GNC-7323
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $12.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Financing options offer you solutions that meet your budget.
- Electronic fuel & ignition control optimizes fuel use for a more cost-efficient and lower emission back-up power solution.*
- *On average versus Generac Guardian Series standby generators.
- Long, best-in-class service intervals mean you spend less time on maintenance and more time enjoying the comfort that comes with owning a standby generator.
- Remote diagnostics monitor your generator’s performance and help detect issues before they become a problem, helping you save time & money on maintenance.
- Built-in Cellular Connectivity allows you to monitor performance and control your generator with Mobile Link whether you're home or away.
- Mobile LinkTM keeps you connected and provides real-time updates and maintenance alerts.*
- *Requires Mobile Link TM premium subscription
- Oil level sensors monitor oil level to help ensure generator readiness.
- Improved cold start performance enables generator start-up in cold climates.
- Sloped roof and rear air intake reduce risk of snow and ice intrusion.
- Compatible with ecobee by Generac thermostats and Generac PWRcell battery systems to seamlessly monitor & control your home’s energy.
- The automatic transfer switch comes equipped with built-in whole home surge protection, helping shield your appliances and electronics from damaging power surges.
- Every Generac Standby Generator comes with a 5-year limited warranty, and over 65 years of innovation behind it.
- 24/7/365 Customer Support Team is ready all day, every day, from our headquarters in Wisconsin to answer any questions you might have.
- Generac generators and engines are engineered and assembled in the USA*.
What's in The Box
- 14kW Generac Air Cooled Standby Generator
- Automatic Transfer Switch
Warranty
- 5 Year Limited Warranty
- 30 Day Satisfaction Gauranteed
Specifications
| SKU | GNC-7323 | |
| Model | 14 kW | |
| Rated maximum continuous power capacity (LP) | 14 kW* | |
| Rated maximum continuous power capacity (NG) | 14 kW* | |
| Rated voltage | 240 V | |
| Rated maximum continuous load current – 240 Volts (LP / NG) | 58 / 58 | |
| Total Harmonic Distortion | Less than 5% | |
| Main line circuit breaker | 60 amp | |
| Phase | 1 | |
| Number of rotor poles | 2 | |
| Rated AC frequency | 60 Hz | |
| Power factor | 1.0 | |
| Battery requirement (not included) | 12 volts, AGM Powersport Battery Group BTX20L 310CCA minimum | |
| Unit weight (lb / kg) | 391 / 177 | |
| Dimensions (L x W x H) in / cm | 46.4 x 26.3 x 30.7 / 117.9 x 66.8 x 77.9 | |
| Sound output in dB(A) at 23 ft (7 m) with generator operating at normal load | 65 | |
| Sound output in dB(A) at 23 ft (7 m) with generator in Quiet-Test™ low-speed exercise mode | 55 | |
| Exercise duration | Adjustable 5 - 20 min (5 min factory default) | |
| Engine type | GENERAC G-Force 800 Series | |
| Number of cylinders | 2 | |
| Displacement | 817 cc | |
| Cylinder block | Aluminum w/ cast iron sleeve | |
| Valve arrangement | Overhead valve | |
| Lifter type | Hydraulic | |
| Ignition system | Solid-state | |
| Governor system | Electronic | |
| Compression ratio | 9.5:1 | |
| Starter | 12 VDC | |
| Oil capacity including filter | Approx. 2.5 qt / 2.4 L | |
| Operating rpm | 3,600 | |
| Fuel consumption Natural Gas 1/2 Load | 189 ft³/hr (5.35 m³/hr) | |
| Fuel consumption Natural Gas Full Load | 243 ft³/hr (6.89 m³/hr) | |
| Fuel consumption Liquid Propane 1/2 Load | 63 ft³/hr (1.76 gal/hr) [6.66 L/hr] | |
| Fuel consumption Liquid Propane Full Load | 106 ft³/hr (2.92 gal/hr) [11.03 L/hr] | |
| Controls AUTO | Automatic start on utility failure; programmable exerciser | |
| Controls MANUAL | Start with starter control; unit stays on; transfers to load if utility fails | |
| Controls OFF | Stops unit; generator will not automatically start on utility failure; control and charger operate if utility power is available | |
| Controls SERVICE | Diagnostic mode to prevent remote commands and nuisance Mobile Link notifications during testing | |
| Ready to Run/Maintenance messages | Standard | |
| Engine Run Hours indication | Standard | |
| Programmable start delay | 2–1,500 seconds (dealer programmable) | |
| Utility nominal voltage setting | Adjustable 90–110% of 240V (default 100%) | |
| Utility Voltage Loss/Return to Utility adjustable (brownout setting) | Adjustable 75–80% dropout / 84–89% pickup | |
| Future Set Capable Exerciser/Exercise Set Error warning | Standard | |
| Run/Alarm/Maintenance logs | 50 events each | |
| Engine start sequence | Cyclic cranking | Engine cranks a maximum of five times at factory set intervals and durations |
| Starter lock-out | Starter cannot re-engage until 5 sec after engine has stopped | |
| Smart battery charger | Standard | |
| Charger Fault/Missing AC warning | Standard | |
| Low Battery/Battery Problem Protection and Battery Condition indication | Standard | |
| Automatic Voltage Regulation with Over and Under Voltage protection | Standard | |
| Under-Frequency/Overload/Stepper Overcurrent protection | Standard | |
| Safety Fused/Fuse Problem protection | Standard | |
| Automatic Low Oil Pressure/High Oil Temperature shutdown | Standard | |
| Overcrank/Overspeed (@ 72 Hz)/RPM Sense Loss shutdown | Standard | |
| High Engine Temperature shutdown | Standard | |
| Internal Fault/Incorrect Wiring protection | Standard | |
| Common external fault capability | Standard | |
| Automatically upgradable firmware via Cellular or Wi-Fi | Standard |
