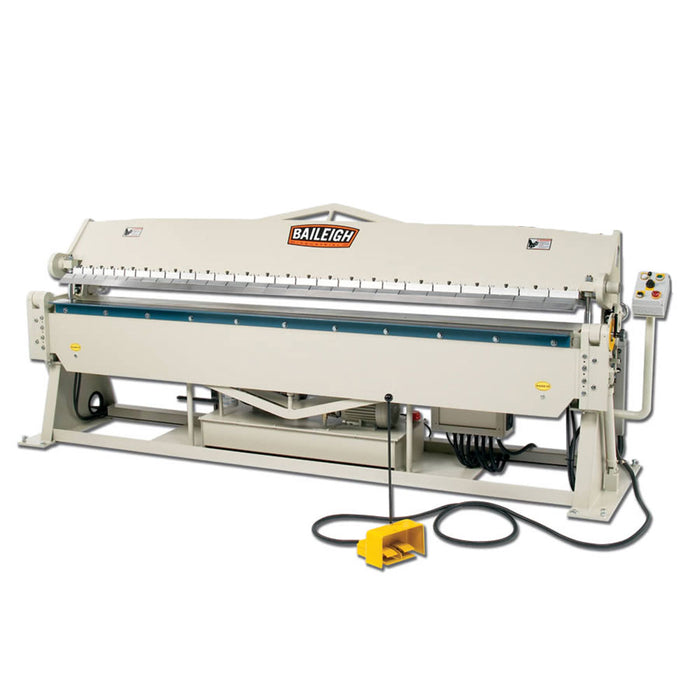

Features
- Maximum capacity of 14 gauge mild steel or 18 gauge stainless steel.
- 10-foot (120”) working width.
- Maximum bend angle of 135°.
- Runs on 220-volt 3-phase power.
- Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money.
- Simple to operate with adjustable angle auto-stop:
- Dial in the desired bend degree (including springback).
- Load the machine.
- Begin the cycle by stepping on the foot pedal controls.
- Machine clamps the material, and the leaf will lift to the desired angle and return.
- Upper beam unclamps the material, ready for the next bend.
- You can operate the machine from the control panel or with the included foot pedal.
- Includes 26 hardened fingers of various sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6").
- Fully-welded steel frame and support rods add rigidity to the overall structure to provide years of trouble-free use.
- Baileigh covers this hydraulic sheet metal brake with a 1-year parts warranty.
What's in The Box
- BB-12014H - Sheet metal Brake
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | BB-12014H |
| Power | 220V / 3-phase |
| Motor | 3 hp |
| Min Reverse Bend | .5" |
| Thickness (SS) | 14 ga. (18 ga.) |
| Box Depth | 6" |
| Beam Adjustment | 1" |
| Bend Angle | 0 – 135° |
| Finger Sizes | 3" – 4" – 5" – 6" |
| Length | 120” |
| Dimensions (Inches) | 154 x 46 x 68 |
| Weight | 5830 lbs |
