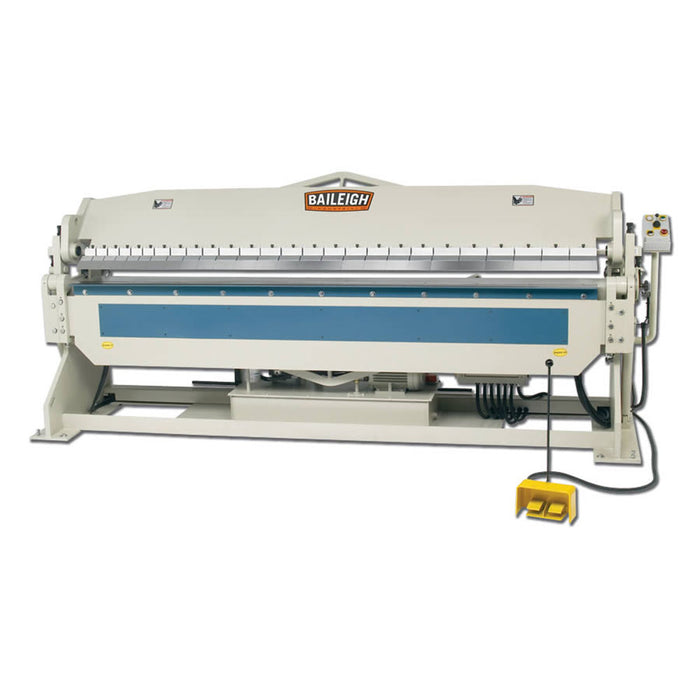

Baileigh 1020998 BB-12010H 220V 10' x 10 Gauge Hydraulic Sheet Metal Brake

$41,589.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: BLH-1020998
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Bends 10 gauge mild steel and 12 gauge stainless steel or lighter.
  • 10 feet (120”) bending length.
  • Maximum bend angle of 135°.
  • Industrial-grade hydraulic systemdoes all of the following:
  • Clamps the material at the fingers,
  • Lifts the bend eaf to the pre-set bend angle,
  • Opens the beam when the bend is complete.
  • Hydraulically-driven bend leaf.
  • 5 hp motor runs on 220-volt three-phase power.
  • Made using only the most durable and high-quality electrical components.
  • Includes 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6"); adjust them for different box and pan applications.
  • Adjustable auto-stop: just dial in the bend degree when using the hydraulic bending brake in manual or semi-automatic mode.
  • Variable bend speed and clamping pressure adjustment give you control over the material.
  • You can operate the machine by toggle from the console, or by using the foot pedal controls.
  • Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs.
  • Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them.
  • Greaseable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years.
  • Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity.
  • Extra-rigid base design supports the weight of heavier materials.
What's in The Box
  • BB-12010H - Hydraulic Sheet Metal Brake
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BB-12010H
Motor 5 hp
Power 220V / 3-phase
Min Reverse Bend .984"
Thickness (SS) 10 ga. (12 ga.)
Box Depth 6"
Beam Adjustment 1"
Bend Angle 0 – 135°
Finger Sizes 3" – 4" – 5" – 6"
Dimensions (Inches) 158 x 44 x 70
Weight 7700 lbs
