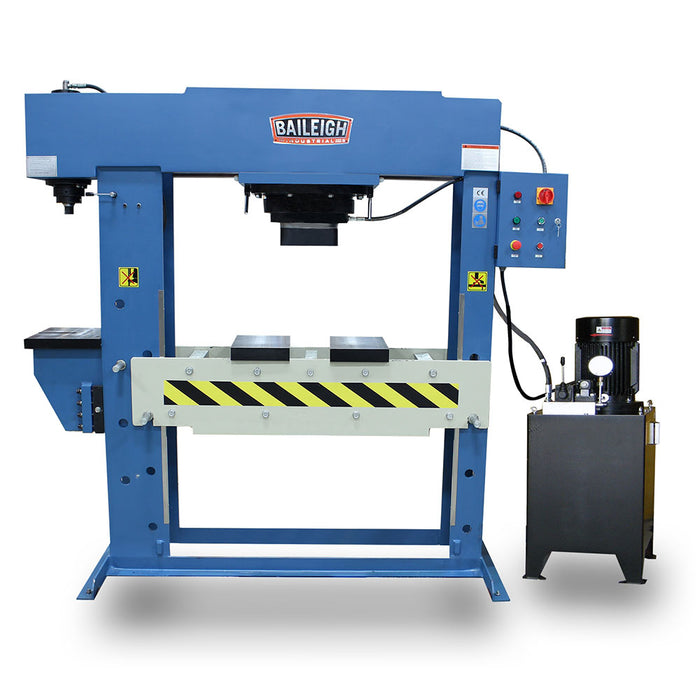

Baileigh 1019291 HSP-200M-C 200/20 Ton Two Station Hydraulic H-Frame Press
by Baileigh
$32,469.00
+ Free Shipping
Condition: New
SKU: BLH-1019291
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Unique two station design.
- 200-ton capacity on main press.
- 20-ton capacity on side press.
- 47” working width.
- 11”-diameter cylinder with 11.8” stroke.
- 10 hp motor runs on 220-volt 3-phase power.
- Stand-alone hydraulic system with a piston-style pump.
- Cylinder can move left and right within the frame, ideal for off-center projects.
- Pressure gauge comes standard.
- Includes a 2-piece V-block set.
- Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.
What's in The Box
- HSP-200M-C - Two Station Hydraulic Press
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | HSP-200M-C |
| Power | 220 Volt Three Phase |
| Return Speed | .228" / sec. |
| Motor | 10 hp |
| Piston Head Diameter | 6.125" (Main), 1.77" (Side) |
| Pump Speed | 4 gal/min |
| Oil Capacity | 32 gal. |
| Included Accesories | Included Accesories |
| Working Speed | .154" / sec. |
| Working Width | 47" (Main) |
| Maximum Capacity | 200 ton (Main), 20 ton (Side) |
| Cylinder Stroke | 11.8" (Main), 11.75" (Side) |
| Cylinder Movable | Yes (Main Only) |
| Cylinder Diameter | 11" (Main), 3.95" (Side) |
| Distance From Table To Ram | Min. 8.11" - Max. 32.01" (Main), Min. 9.84" - Max. 38.97" (Side) |
| Shipping Dimensions (Inches) | 96x48x93 & 48x45x55 |
| Shipping Weight | 6910 lbs |
