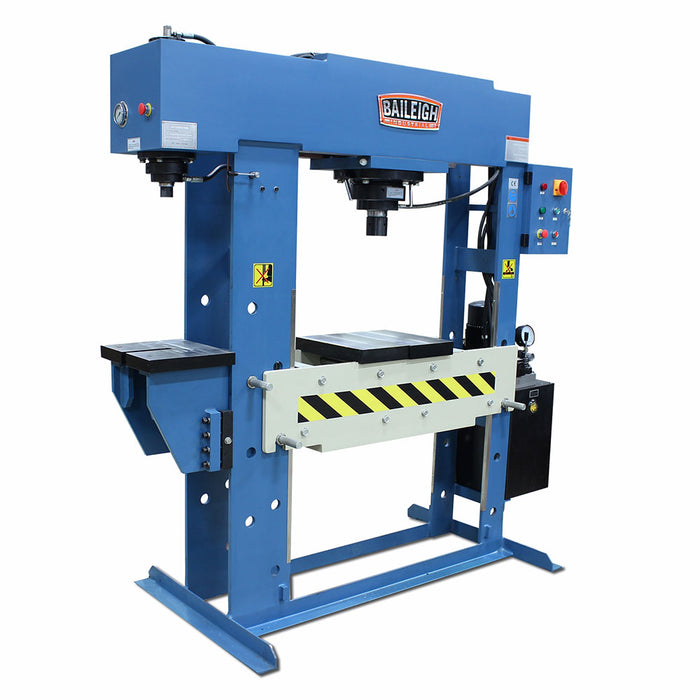

Baileigh 1019290 HSP-60M-C 220V 60/15 Ton Two Station Hydraulic Press
by Baileigh
$13,999.00
+ Free Shipping
Condition: New
SKU: BLH-1019290
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Unique two station design.
- 60-ton capacity on main press.
- 24-ton capacity on side press.
- 41.25” working width on main press
- 7.5” cylinder moves left and right within the frame, ideal for off-center parts.
- Controlled by piston-style hydraulic pump.
- C Frame Hydraulic Press includes 2-piece V-block set.
- Pressure gauge comes standard on both presses.
- Welded steel structure withstands the machine’s full force without flexing.
What's in The Box
- BB-7210H - hydraulic Box and Pan Brake
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | HSP-60M-C |
| Power | 220 Volt Three Phase |
| Return Speed | .303" / sec. |
| Motor | 5.25 hp |
| Piston Head Diameter | 3.15" (Main), 1.77" (Side) |
| Pump Speed | 1.85 gal/min |
| Oil Capacity | 13 gal. |
| Included Accesories | Included Accesories |
| Working Speed | .32" / sec. (Main), .75" / sec. (Side) |
| Working Width | 41.3" (Main) |
| Maximum Capacity | 60 ton (Main), 24 ton (Side) |
| Cylinder Stroke | 11.8" (Main), 11.75" (Side) |
| Cylinder Movable | Yes (Main only) |
| Cylinder Diameter | 7.55" (Main), 3.95" (Side) |
| Distance From Table To Ram | Min. 8" - Max. 38" (Main), Min. 9.84" - Max. 38.97" (Side) |
| Dimensions (Inches) | 96 x 48 x 89 |
| Weight | 2960 lbs |
