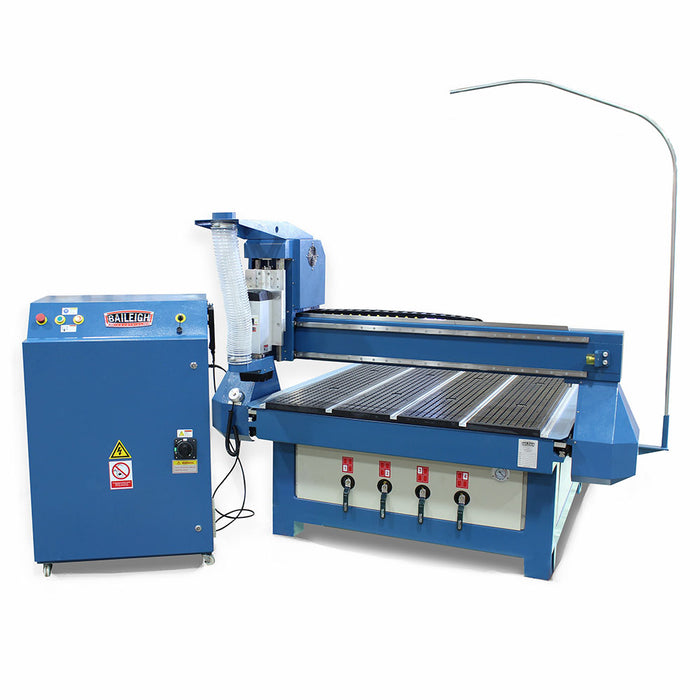

Baileigh 1019185 WR-84V 4' x 8' 220V 1PH CNC Variable Speed Router Table

$24,173.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: BLH-1019185
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • 4’ x 8’ table to fit common bulk industrial material sizes.
  • Perfect for solid wood processing, making closet doors, furniture, signs, and much more.
  • 0 to 18,000 rpm variable spindle speed range.

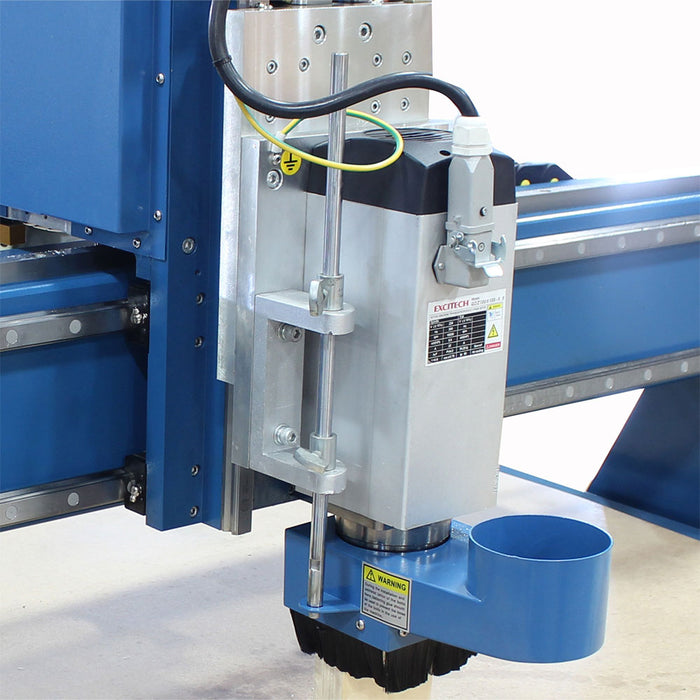

  • 7.4 hp spindle has the power to cut hardwoods quickly and precisely.
  • Spindle is air-cooled to prevent overheating, prolong the machine’s lifespan, keep it producing high-quality cuts.
  • 15,000 mm per minute maximum engraving or travel speed.
  • Solid steel gantry can tackle hardwoods at high speeds without flinching.
  • Stepper motors with square rails ensure smooth movement along the X, Y, and Z axes.
  • Use the handheld digital controller to move the spindle, adjust the speed, and go through your design.
  • Comes standard with software that allows you to set up almost any kind of design. (Details below.)
  • Upload your cut pattern to the table with a USB drive.

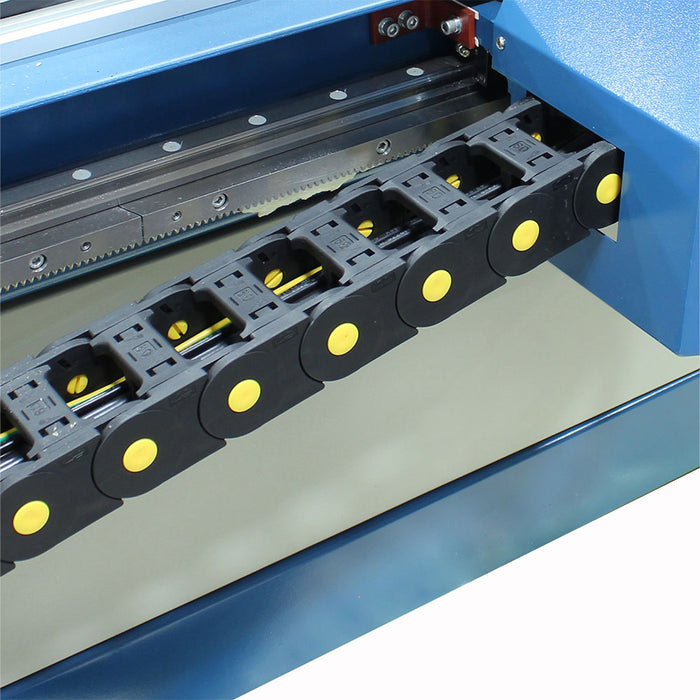

  • Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement than a ball and screw mechanism
  • .
  • 4 collets accept any standard tooling profiles with ?”, ¼”, 3/8", and ½” bit sizes.
  • Includes 10 different tooling profiles.
  • Steel T-clamps hold the material down on the table to reduce vibrations and prevent errors.

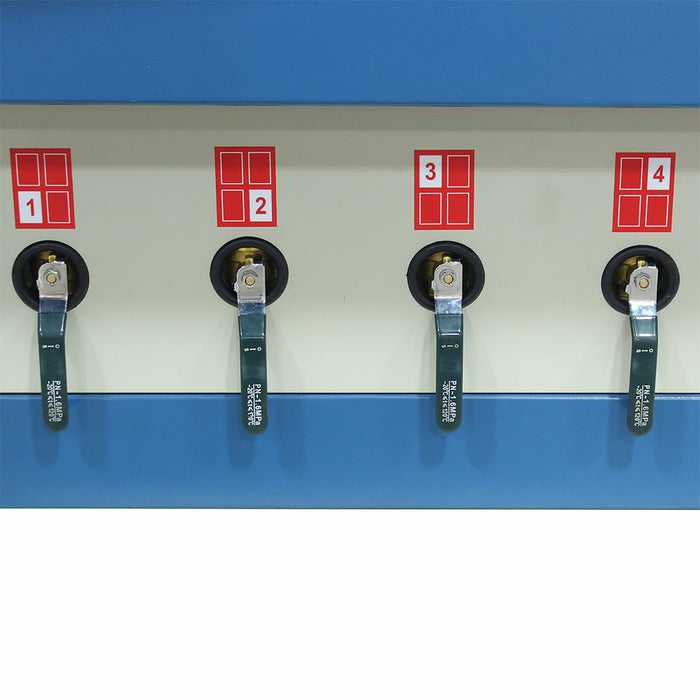

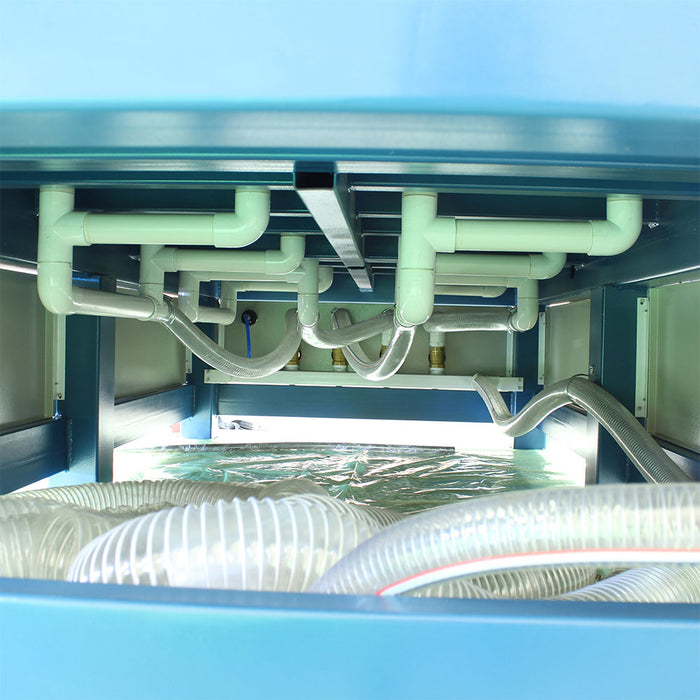

  • Table is preplummed 4 vacuum zones, each with a separate valve and handle, ready to accept optional 7hp vacuum pump. (Found Here)
  • Extremely rigid steel structure reduces vibrations and helps the table stay accurate for years.
  • Dust shroud covers the spindle and vacuums out sawdust and wood chips while you’re cutting.
  • This combination CNC Router Table 4x8 is covered by a 1-year parts warranty.
What's in The Box
  • WR-84V - CNC Routing Table
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU WR-84V
Power 220V Single Phase
Actual Working Area 97" x 48"
Spindle 7.4hp
Z Axis Stroke 5.375"
Maximum Moving Speed (Inches Per Minute) 590
Maximum Engraving Speed (Inches Per Minute) 590
Reposition Accuracy 0.0019
Tool Diameters ER32
Length 118"
Width 78"
Height 65"
Weight (lbs) 2500
Table Style T-Slot with Vacuum Option
Notes Table comes ready to accept an optional vacuum pump. Pump must be purchased separately.
AMP Draw 35 at full load
Dimensions (Inches) 124 x 86 x 70
Weight 3000 lbs
