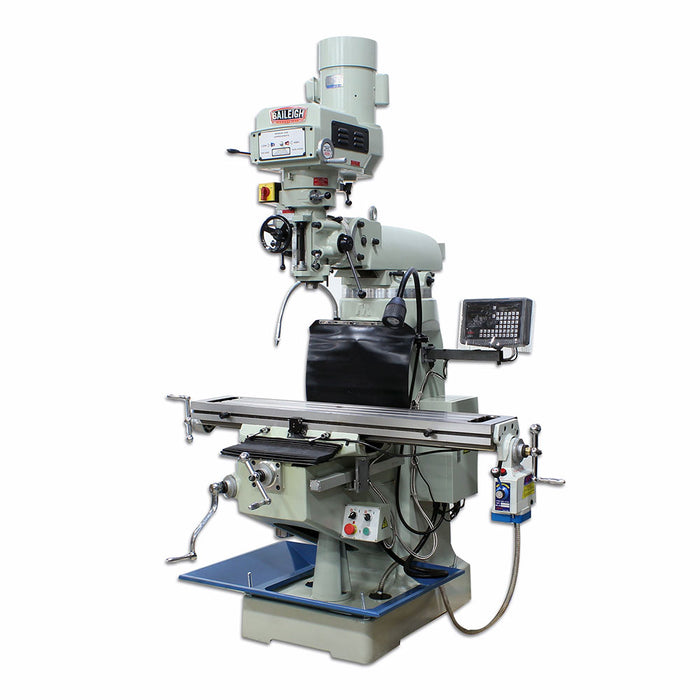

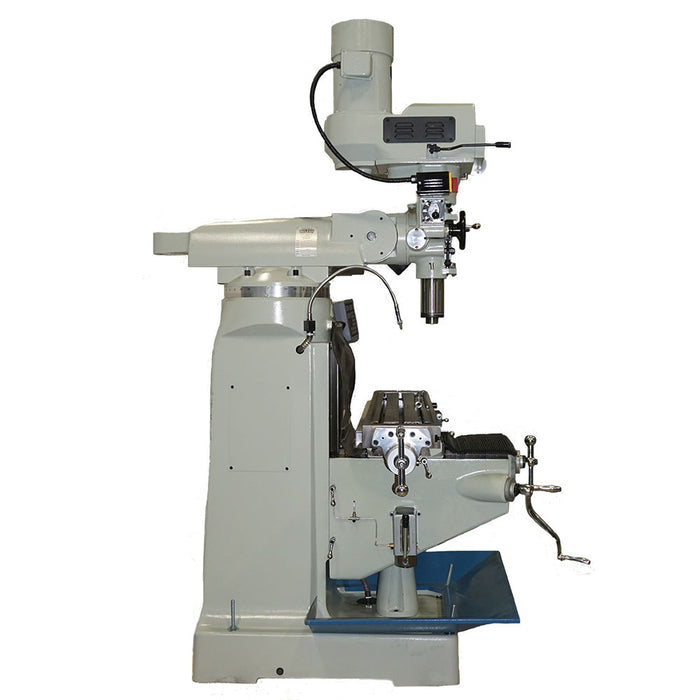

Baileigh 1019108 VM-949E-VS 220V Vertical Mill w/ Variable Spindle Speed

Out of Stock
- +

Condition: New
SKU: BLH-1019108
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features

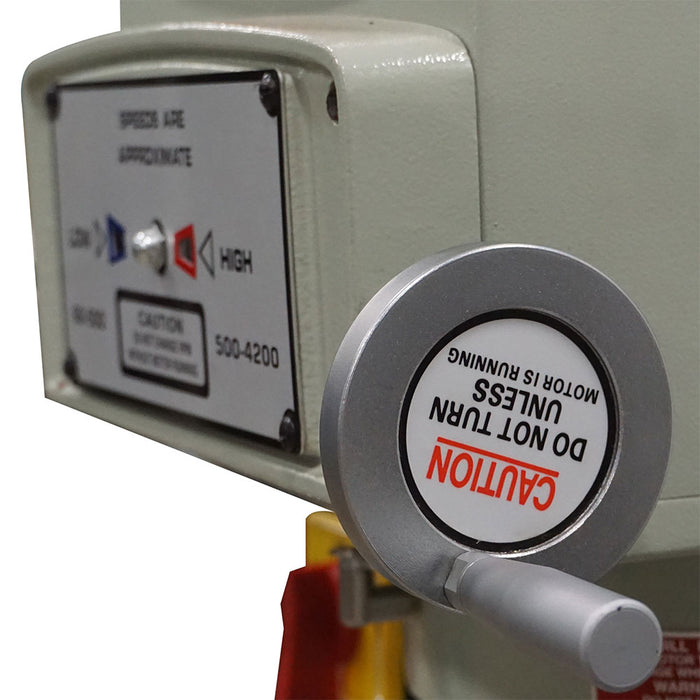

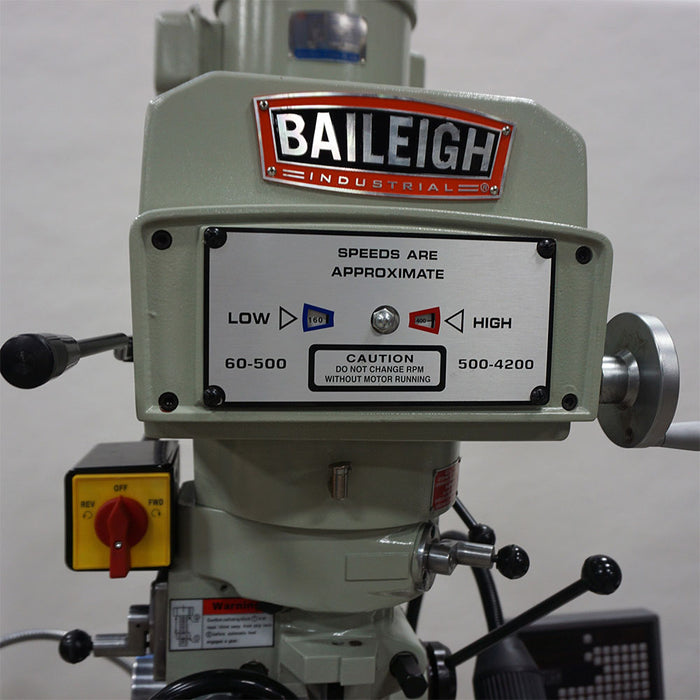

  • Variable spindle speed by adjustable sheaves/pulleys - Control spindle RPM with the turn of a handle
  • Infinitely adjustable variable speed from 60 to 4,200rpm – Allows tooling to run at its intended speed, resulted in longer tool life and better finishes
  • R8 spindle and drawbar - Accepts the most common tooling
  • Meehanite Casting – Rigid and dependable for decades of use
  • Spindle brake – Easier tool changes and quick spindle stops
  • 3 speed power quill feed w/ manual wheel – Perfect for boring and accurate, consistent work

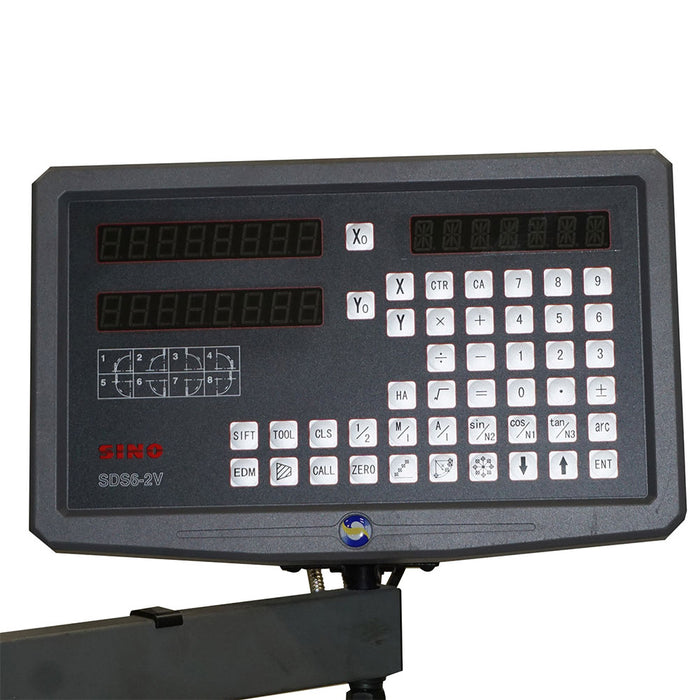

  • DRO for X and Y axes

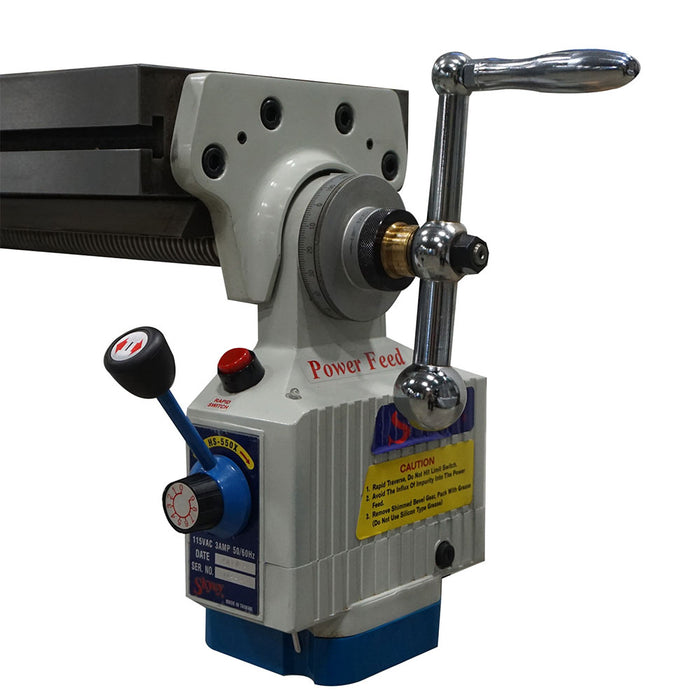

  • Power feed X axis w/ rapid – Consistent travel speed without tiresome cranking
  • Dovetail ways w/ adjustable gibs – Keep tolerances tight year after year

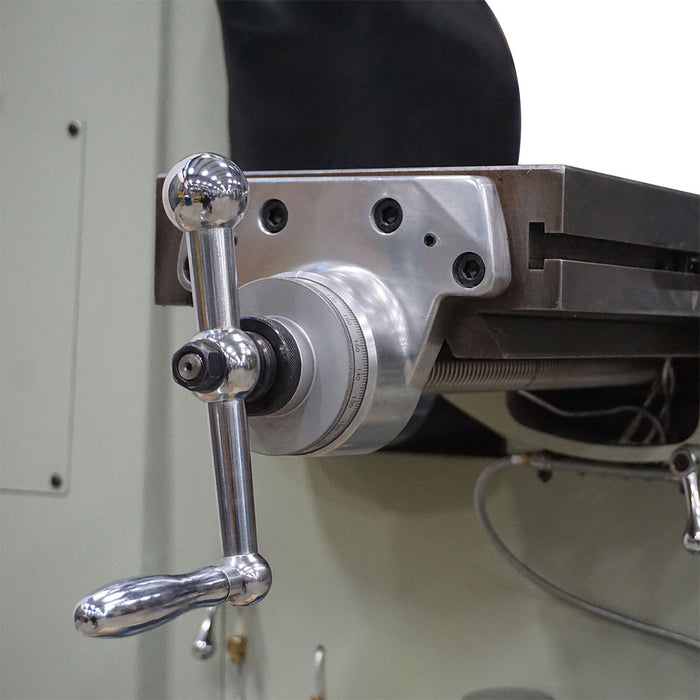

  • Taiwan lead screws w/ backlash adjustable nuts – Remove backlash instead of compensating for it
  • Way covers and wipers – Keep chips off ways and bed
  • Integrated coolant system w/ splash guard – Large 6-gallon reservoir in the base houses the pump. Plumbed return line from the table eliminates overflow and messes

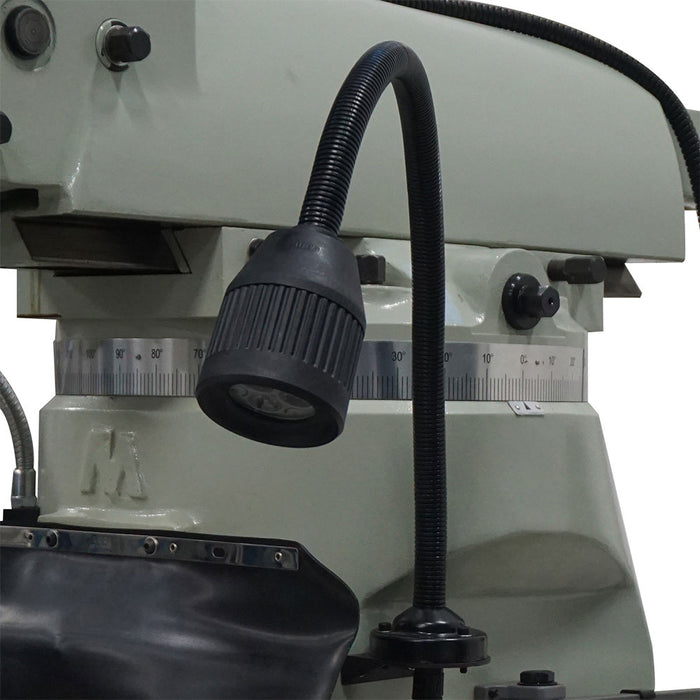

  • LED work light

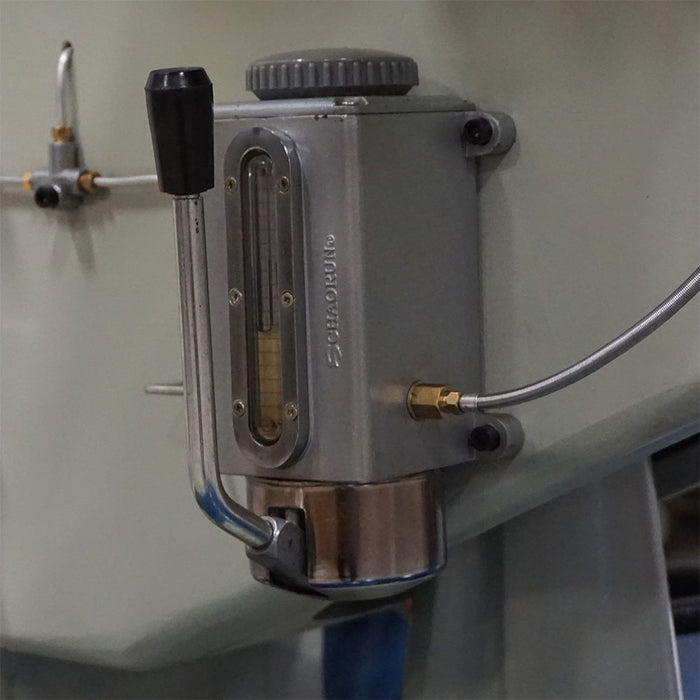

  • One-shot lubricator – Keep up on lubrication maintenance by simply pulling a lever
What's in The Box
  • VM-949E-VS - Vertical Mill
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU VM-949E-VS
Power 220V / 1-phase
Motor 3 hp
Spindle Speeds 60 - 4,200RPM Infinitely Variable
Distance from Spindle to Table 18.5"
Spindle Travel 4.9"
Spindle Speed Range 60 to 4200 RPM
Spindle Feeds .003" .0015" .008"
Power Feed X axis
Table Size 9" x 49"

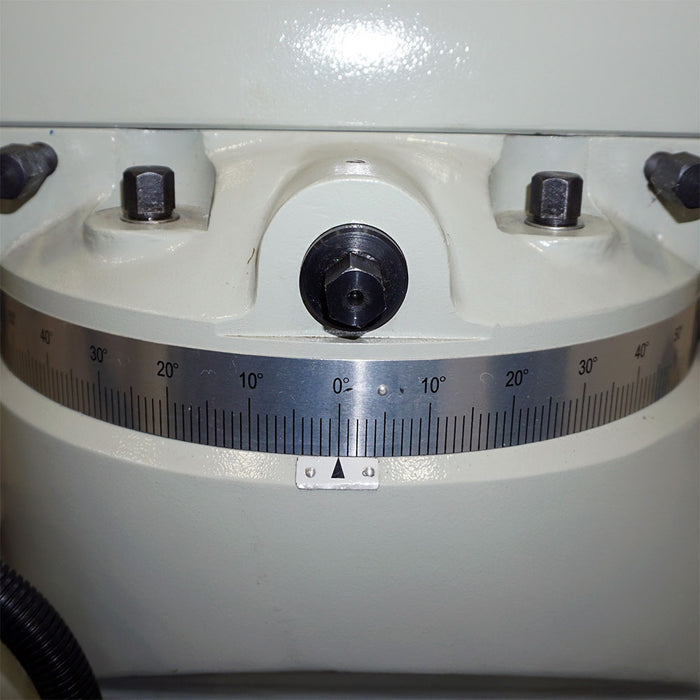

Range of Movement 90° Left and Right, 45° Front and Back
Spindle Diameter 3.3"
Included Accesories Included Accesories
X Axis Travel 31-5/8""
Y Axis Travel 11-a3/16"
Z Axis Travel 13-3/4"
Spindle Taper R8
T Slots .625"
Drill Capacity 2"
Dimensions (Inches) 72 x 72 x 72
Weight 1980 lbs
