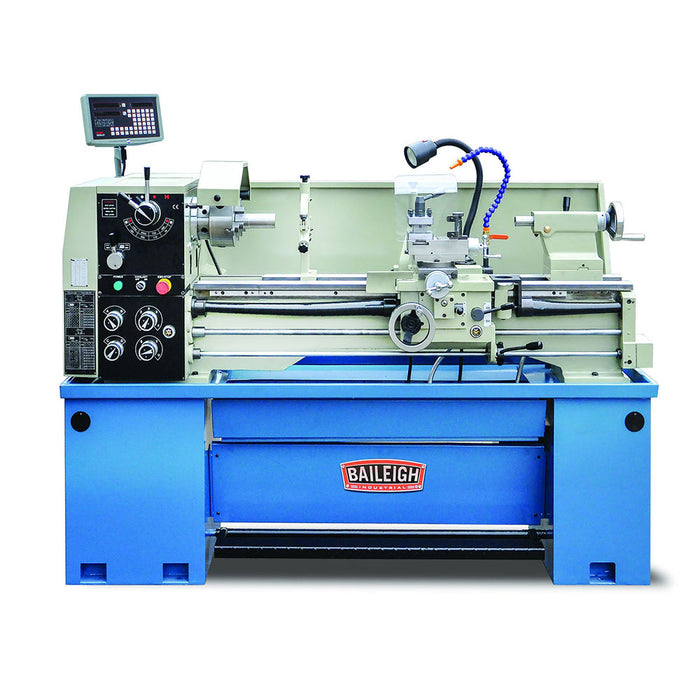

Baileigh 1016623 PL-1440E-1.0 14" x 40" Metal Lathe w/ Integrated Coolant System

$14,999.00 + Free Shipping

×
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
- +

Condition: New
SKU: BLH-1016623
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Recommended for small to medium shops and schools.
  • 8 spindle speeds, ranging from 90 to 1,800 rpm.
  • 3 hp motor runs on a 220-volt single-phase power, so you can use it almost anywhere.
  • No assembly required. Just open the crate and wire it up.
  • Precision-ground and hardened ways ensure years of tight tolerances.
  • Digital readout (pre-installed) helps you make precise cuts.
  • Capable of making metric and standard threads.
  • Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter.
  • Comes standard with:
  • 3-jaw and 4-jaw chucks.
  • Headstock chuck guard with automatic safety switch.

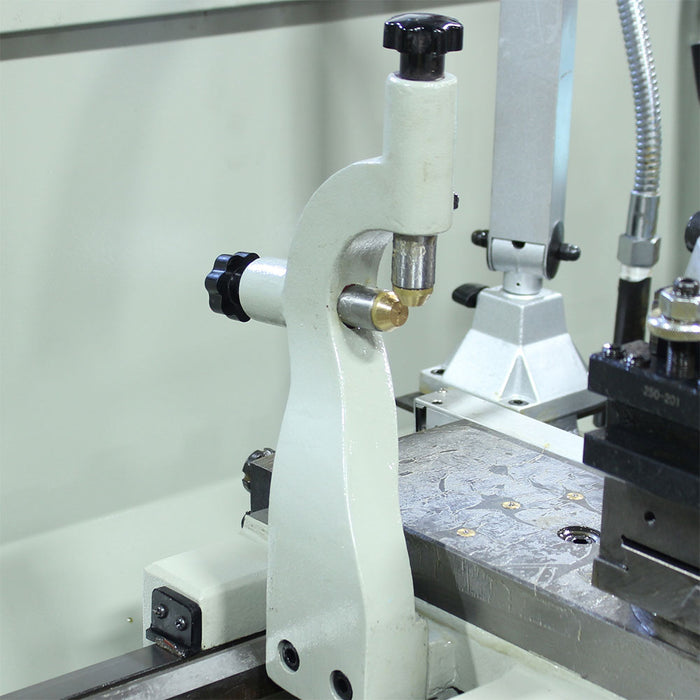

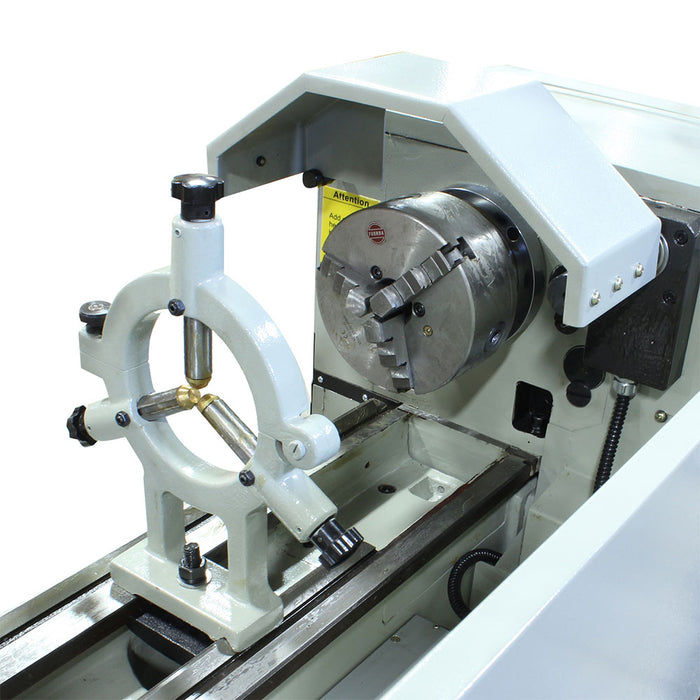

  • Steady rest and follow rest.
  • Face plate.
  • Safety foot brake.

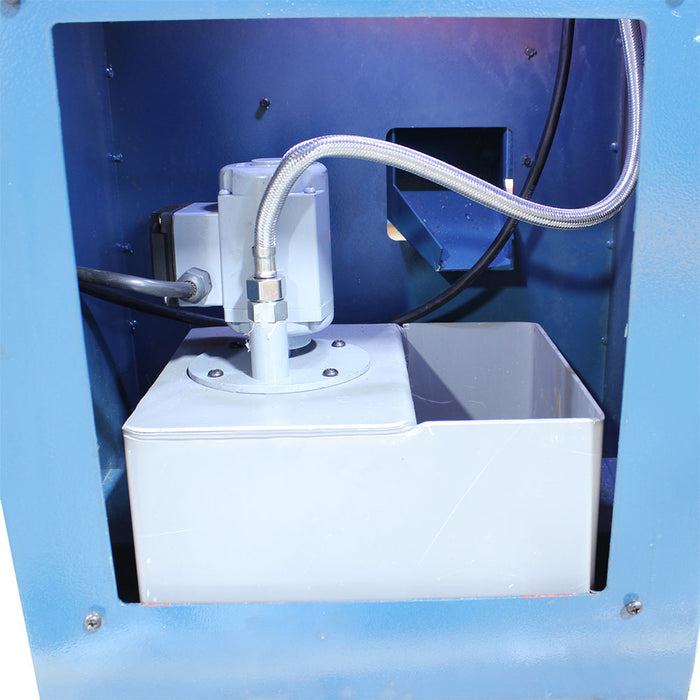

  • Integrated coolant system, which maintains accuracy and helps the machine last longer.
  • Halogen work light.
  • Optional taper attachment for making cones is sold separately.
  • Covered by a 1-year parts warranty.
What's in The Box
  • PL-1440E-1.0 - Metal Lathe
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PL-1440E-1.0
Power 220V / 1-phase
Spindle Speeds 90 - 1800 rpm
Spindle Bore 1.5"
Spindle Nose D1-4"
Threads Imperial Qty Speed 44 / 4-112 T.P.I.
Threads Metric Qty Speed 22 / .45-7.5 mm
Spindle Taper Sleeve Morse #3
Spindle Taper Nose Morse #5
Tailstock Quill Dia 1.772"
Tailstock Quill Taper Morse #3
Tailstock Quill Travel 4.72"
Bed Length 17156
Bed Width 7.086"
Main Motor 2 hp
Longitudinal Feeds Imperial Qty Speed .0012" – .0294"/rev.
Lead Screw Diameter .866"
Lead Screw Thread Pitch 4 T.P.I.
Max. Swing Over Bed 14"
Max. Swing Over Cross Slide 8.6"
Max. Swing In Gap Dia 19.9"
Cross Feeds Imperial Qty Speed .0003" – .01"/rev.
Distance Between Centers 40"
Feed Rod .708" dia.
Dimensions (Inches) 79x44x63
Dimensions L x W x H 76" x 30" x 61"
Shipping Weight 1450 lbs
