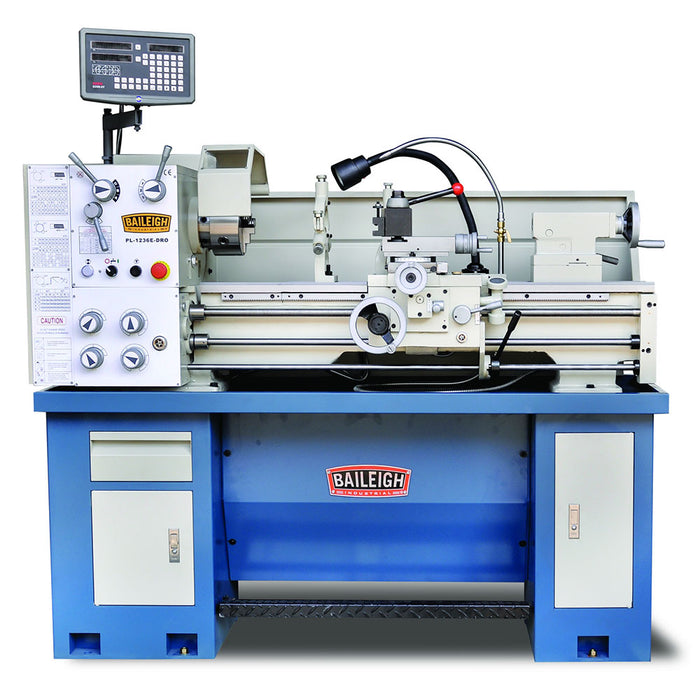

Baileigh 1016617 PL-1236E-DRO-1.0 220V 1PH Variable Speed Metal Lathe

$8,845.00 + Free Shipping

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: BLH-1016617
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Recommended for small fabricators, schools, or garages.
  • 70 to 1,400 rpmvariable speed.
  • Integrated digital readout (DRO) helps you get repeatable results.

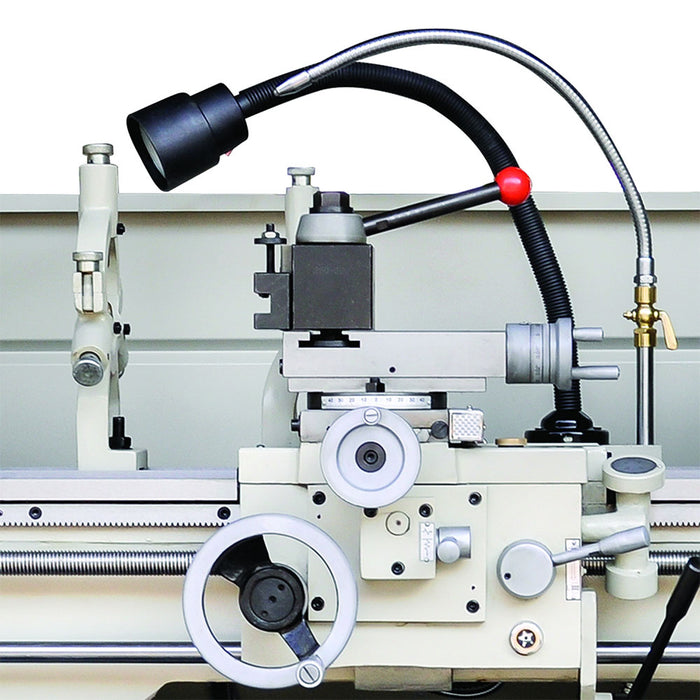

  • Quick-change tool post makes tooling changes more efficient.

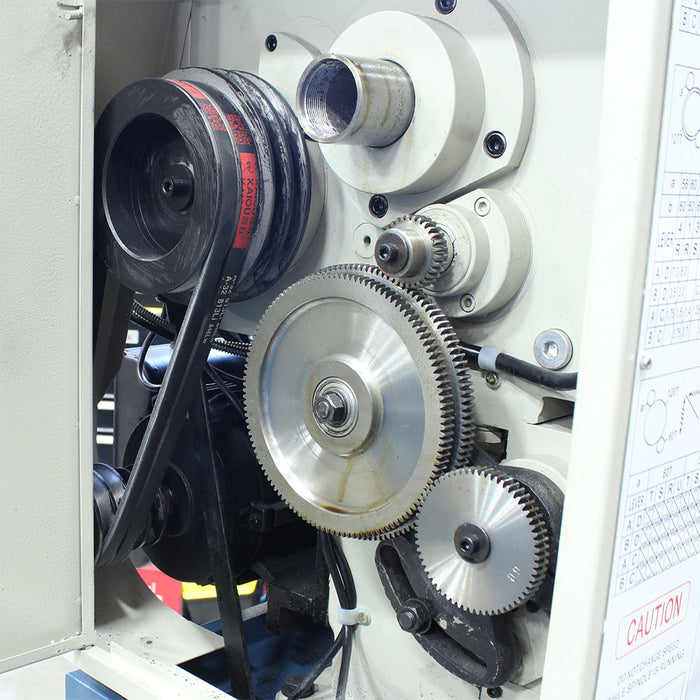

  • Gear system allows for taping, turning, and polishing.
  • All ways are ground and hardened to ensure long life.

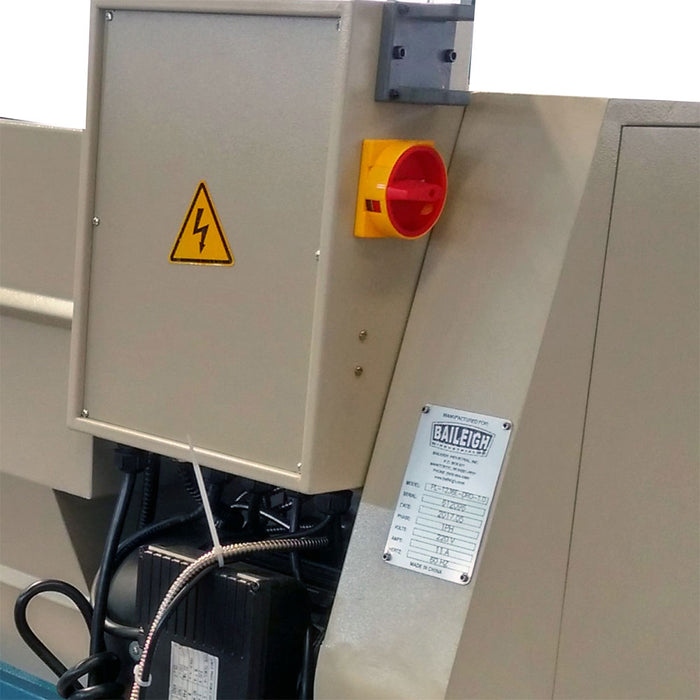

  • Runs on 220-volt single-phase power.
  • Capable of standard and metric threading.(Metric with optional kit)
  • Quick-change tool post helps you save time.

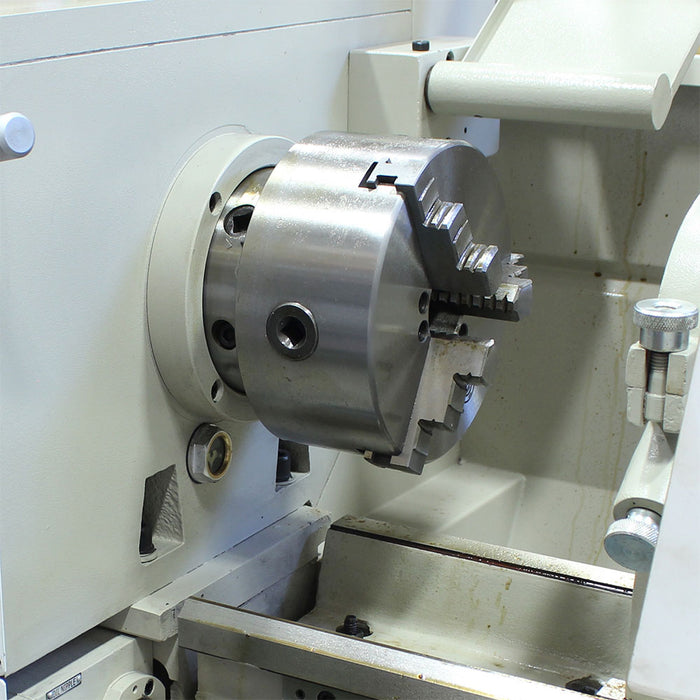

  • 3-jaw and 4-jaw chucks can hold both square and rounded materials.
  • Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
  • Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.
  • Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
  • Foot brake helps keep your shop safe.
  • Halogen work light comes standard.
What's in The Box
  • PL-1236E-DRO-1.0 - Metal Lathe
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PL-1236E-DRO-1.0
Power 220V / 1-phase
Sleeve Travel 4"
Spindle Bore 1.50"
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter 1.250"

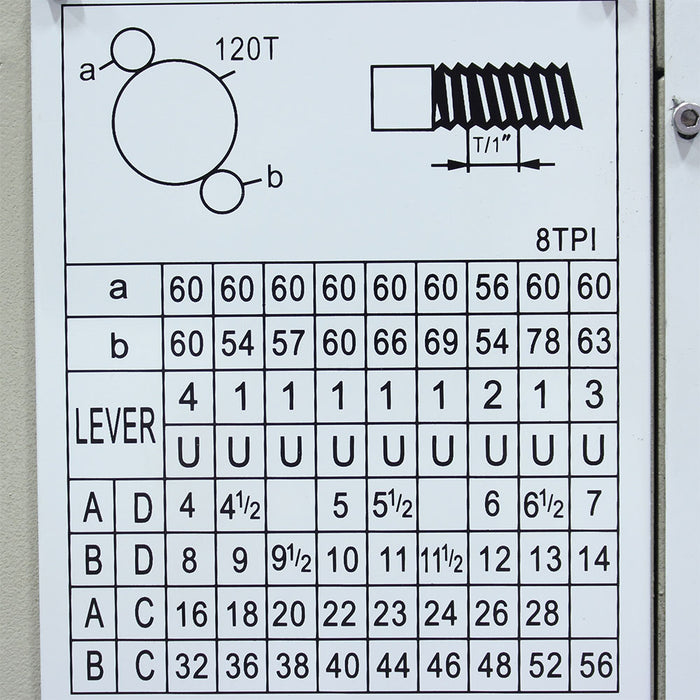

Range Of Inch Threads 4 - 56 T.P.I.
Metric Thread Range 0.4 – 7 mm
Spindle Nose D1-4"
Travel Of Cross Slide 5.312"
Travel Of Top Slide 3.250"
Width Of Bed 7.125"

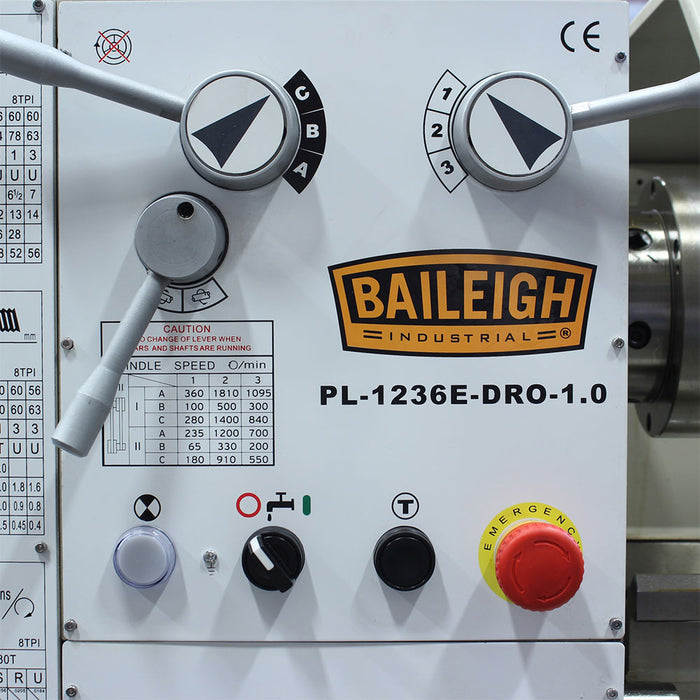

Spindle Speed 9 (70 – 1400 rpm)
Swing Over Bed 12"
Swing Over Cross Slide 7.625"

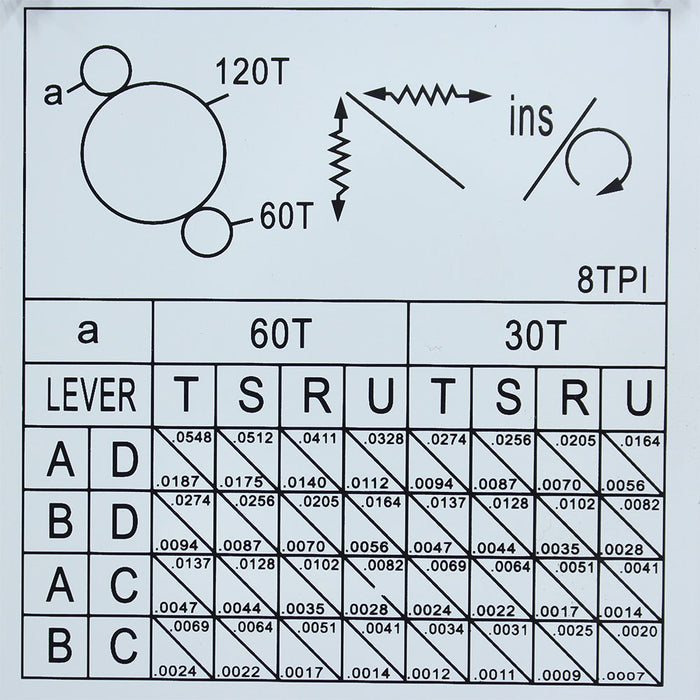

Longitudinal Feed Range 0.002" – 0.0548"/rev
Lead Screw Thread Pitch 8 T.P.I.
Max. Tool Selection .625" x .625"
Cross Feed Range 0.007" – 0.0187"/rev
Distance Between Centers 3666
Dimensions (Inches) 69 x 44 x 62
Weight 1420 lbs
