Features
- 2" maximum drilling capacity
- Heavy duty construction
- Power down feed
- MT5 spindle
- Large 63" column
- Box shape worktable
- 220V 3-phase
- Includes spindle protection cover, quick chuck, tapping chuck, Industrial coolant system, work light, and box shaped work table.
What's in The Box

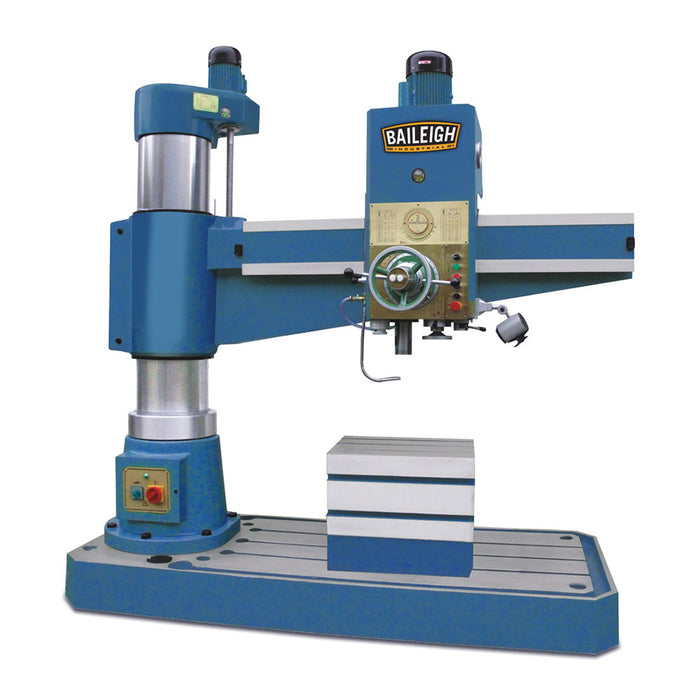

- RD-1600H - Hydraulic Radial Drill Press
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | RD-1600H |
| Power | 220V 3-phase |
| Motor | 5.25 hp |
| Max. Drill Capacity | 2" |
| Distance from Spindle to Column Center | 13.7" to 63" |
| Diameter of Column | 13.7" |
| Spindle Taper | MT5 |
| Spindle Travel | 12.4" |
| Spindle Speed Range | 25 to 2000 rpm |
| Range of Spindle Feeds | .001" to .125" |
| Spindle Feeds | 16 |
| Distance Between Spindle Nose and Base | 12.6" to 48" |
| Table Size | 24.8" x 19.6" x 19.6" |
| Base Size | 94.4" x 39.3" x 7.8 |
| Overall Size | 98” x 40”~96” x 103”~112” ACcounting for Beam Movements |
| Shipping Dimensions (Inches) | 109x45x102 |
| Weight | 9500 lbs |
