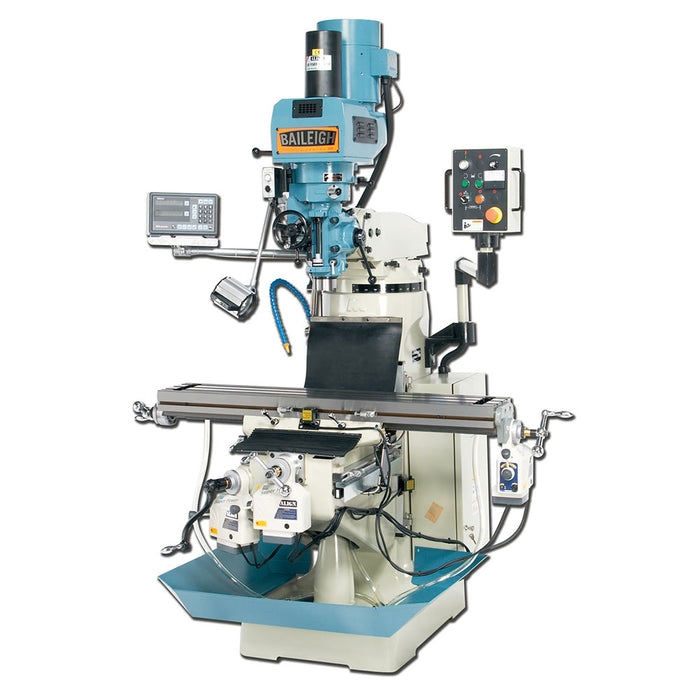

Baileigh 1008236 VM-949-3 220V 3PH 9" x 49" Vertical Milling Machine
by Baileigh
$22,919.00
+ Free Shipping
Condition: New
SKU: BLH-1008236
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- The VM-949 is available in two different voltages, 220 volt single and three phase, these variances allow the VM-949 to be used in almost any shop.
- Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame work out of.
- The stronger you make the platform the better the cutting is.
- This is not the place to use an inferior process.
- To make the VM-949 milling machine even stronger, a NST 40 spindle is standard.
- This type spindle is stronger and give the operator a choice of larger tooling should the need arise.
- Operation of the VM-949 could not be easier as this milling machine has powered X, Y and Z axis.
- The X and Y axis utilizes a Mitutoyo DRO- digital read out for positioning down to 1/10 of a thousandth of an inch.
What's in The Box
- VM-949-3 - Vertical Milling Machine
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | VM-949-3 |
| Power | 220V / 3-phase |
| Spindle Speeds | 60 to 4200 RPM |
| Table Size | 9" x 49" |
| Spindle Center To Column Min Max | 8.38" |
| Spindle Diameter | 3.37" |
| Spindle Feed Per Rev | .0015"/.003"/.005" |
| Spindle Head Swivel | 45 |
| Motor Spindle | 3 hp |
| Travel Auto X Axis | 25.19" |
| Travel Auto Y Axis | 12" |
| Travel Auto Z Axis | 16" |
| Travel Manual X Axis | 28.5" |
| Travel Manual Y Axis | 12" |
| Travel Manual Z Axis | 16" |
| Spindle Nose To Table Min Max | 2.24" |
| Table Load Capacity | 440 lbs. |
| T Slots | .625" |
| Cross Travel Of Ram | 12.59" |
| Spindle Travel | 5" |
| Shipping Dimensions (Inches) | 72x72x78 |
| Weight | 2400 lbs |
