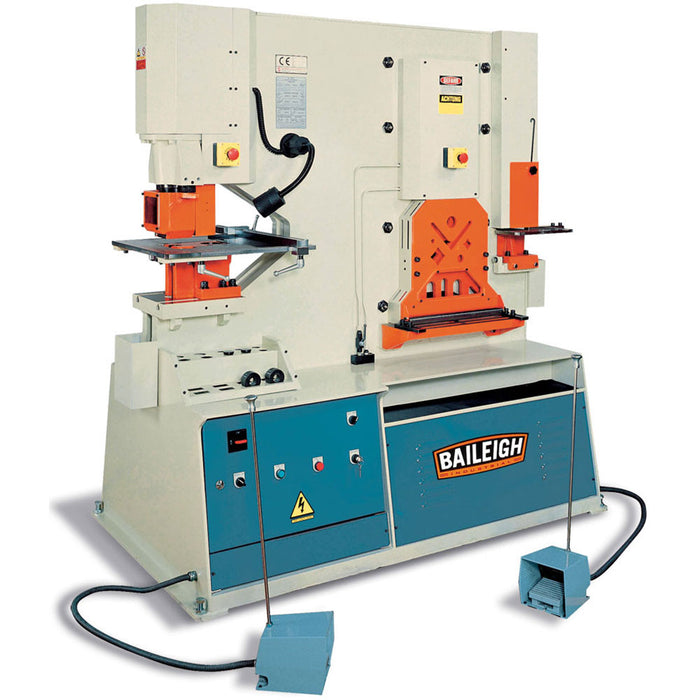

Baileigh 1007865 220V 3PH Dual Operator Ironworker w/ 95 Ton Punching Power
by Baileigh
$44,739.00
+ Free Shipping
Condition: New
SKU: BLH-1007865
-
Product Details
-
Customer Reviews
-
Shipping & Return Policies
Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.
All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy. -
People Who Bought This Also Bought
-
Similar Products
Features
- Heavy structural steel plate framework ensures rigidity and eliminates flexing
- 95 tons of punching pressure and a whopping 123 tons of shearing and notching force
- 5 integrated workstations each execute a different function: punching, notching, flat bar shearing, angle shearing, and bar shearing
- The SW-95 will let you finish tasks twice as fast by enabling two people to use it at the same time
- Dual-operator design enables two people to work at opposite ends of the machine simultaneously without loss of power at either station
- Hydraulic cylinders use entirely vertical movement to perform all functions
- Electric backgauge and adjustable material stops save you effort and deliver precise results for production runs
- Large worktables separate into 2-pieces, allowing you to get angle iron and oddly shaped materials to the punch without difficulty
- Includes 7 sets of punches and dies to accommodate a variety of applications
- Accepts universal tooling: Jog dial allows for simple and secure tool alignment
- Foot pedal provides convenient stop and start control
- Adjustable stroke control of both the upward and downward strokes limits movement and reduces costs
- 16 in. throat depth at the punch station handles large pieces of material and increases capacity
- Hydraulic hold-downs at the shear station ensure safe operation and even cuts
- Waste buckets keep your shop neat and reduce time spent on clean-up
- Punch tooling lasts longer on the SW-95 because stress is spread out over the entire circumference of the punch instead of just one edge
- Baileigh's patented swing-away stripper allows for the quickest tooling changes in the industry
- Comes standard with a number of extras, like waste buckets and oversized worktables, features that other manufacturers consider upgrades
- Baileigh covers the SW-95 universal ironworker with a 1-year parts warranty and lifetime technical support by phone
What's in The Box
- SW-95 Five Station Ironworker - 1007865
- Owner's Manual
Warranty
- 1 year Limited Factory Warranty
- 30-Day Satisfaction Guaranteed
Specifications
SKU | 1007865 |
Brand | Baileigh |
Punching Pressure | 95 Tons |
Punch Capacity | 1.062 x .875 in |
(Diameter x Thickness) | 2 x .5 in |
Throat Depth | 16 |
Max Stroke Length | 3.93 in |
Cycles / Min | 38 at 15 mm |
Working Height Up to Die | 41.3 in |
Flat Bar Shearing | 16 x .75 in |
Blade Length | 16.125 in |
Angle Flange Trim | 4 in |
Working Height | 28.5 in |
At 90‚A Shearing | 5.125 x 5.125 x .5 in |
Working Height | 40.9 in |
Single Vee Press Brake (L x T) | 9.875 x .625 in |
Multi-Vee Press Brake (L x T) | 19.625 x .187 in |
Angle Bending | 4 x .312 in |
Pipe Notching | 4.4 in |
Lg.Vee-Notcher (Side x Side x T) |
5.75 x 5.75 x .375 in * |
Vee-Notcher (Side x Side x T) |
4.1 x 4.1 x .5 in* |
Rect. Notcher(WxDxT) | 2 x 3.5 x .5 in |
Working Height | 41.3 in |
Round Bar Shear | 1.75 in |
Square Bar Shear | 1.75 x 1.75 in |
Electric Power (HP) | 10 HP |
Net Weight (Apr.) | 6,050 lbs |
Machine Dim. Apr. (L x W x H) |
70.6 x 40.1 x 73.4 in |
