Baileigh 1007812 230V 3PH 62 Ton Ironworker w/ 5 Integrated Stations

$23,409.00 + Free Shipping

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
- +

Condition: New
SKU: BLH-1007812
  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • People Who Bought This Also Bought

  • Similar Products

Features
  • Runs on 220-volt 3-phase power.
  • Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
  • Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds.

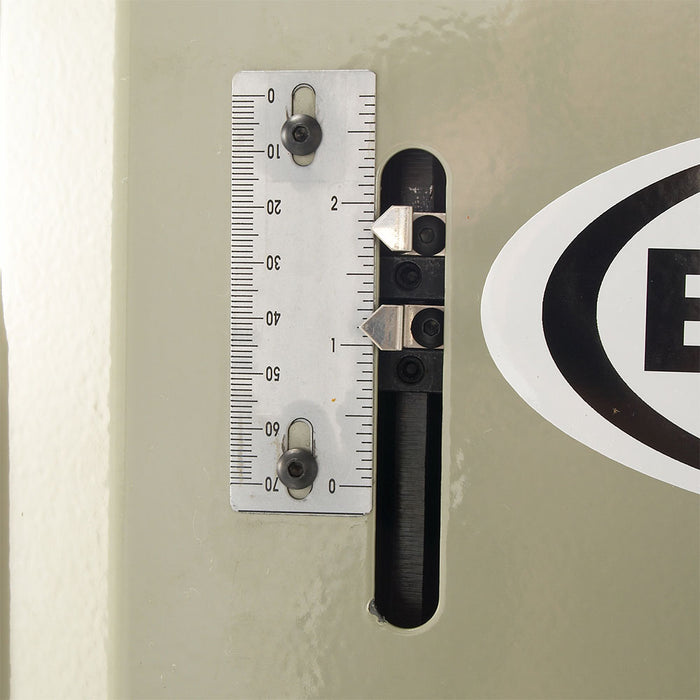

  • You can set the backgauge and material stops to save time and ensure repeatability for production runs.
  • Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials.
  • Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear.
  • Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes.
  • Our patented swing-away material stripper lets you change tooling in seconds.
  • Specify tooling alignment with a turn of the jog dial for increased safety.
  • Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.
  • Accepts durable tooling options from Baileigh, such as press brake or pipe notching attachments, that make the SW-623’s even more useful.
  • Rigid steel plate construction strengthens the machine and maintains accuracy.
What's in The Box
  • SW-623 - Hydraulic Ironworker
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU SW-623
Power 5 HP - 220V 3-Phase
Round Bar Shear 1.5"
Rectangle Notcher W x D x T 2" x 3.5" x .312"
Single Vee Press Brake L x T 6.312" x .312"*
Punch Capacity 1.125" x .625"
Punching Pressure 62 Tons
Pipe Notching 2.5"
Multi Vee Press Brake L x T 9.875" x .156"*
Notching Working Height 40"
Throat Depth 8"
Vee Notcher Side x Side x T 3.5" x 3.5" x .312"*
Working Height 39.5"
Square Bar Shear 1.5" x 1.5"
Channel Shear 4"*
Bar Shearing Working Height 44"
Angle Shearing Working Height 40"
Angle Shearing at 90° 4" x 4" x .375"
Angle Bending 2.5" x .312"*
Angle Flange Trim 4"
Blade Length 14.125"
I Beam Shear 4"*
Max. Stroke Length 2"
Cycles / Min. 28 @ 15 mm
Flat Bar Shearing 13.50" x .5"
Flat Shearing Working Height 31.5"
Shipping Dimensions (Inches) 60x48x78
Weight 2465 lbs
